What is the Knipex 97 49 61 crimping die used for?

It is designed for securely crimping turned contacts, such as Harting industrial connectors.

What is the crimping capacity of this die set?

It features four crimping positions for capacities of 1.5 mm², 2.5 mm², 4.0 mm², and 6.0 mm² (AWG 16 - 10).

Which pliers are compatible with this crimping die?

It is compatible with all Knipex crimp system pliers from the 97 43 series.

What crimp profile does this die produce?

It produces an exact square crimp profile on turned contacts.

Is a locator available for this crimping die?

Yes, the optional Knipex 97 49 91 locator can be used to hold and position the contacts accurately.

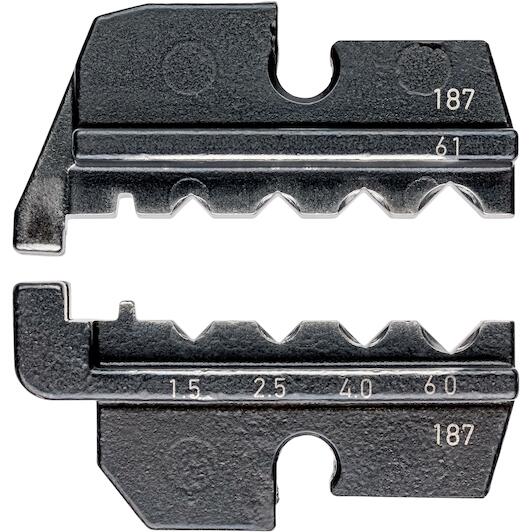

KNIPEX 97 49 61 crimping profile for twisted contacts (Harting)

Name: KNIPEX 97 49 61 crimping profile for twisted contacts (Harting)
Brand: KNIPEX
SKU: 03065402
Price: 139.8 EUR
Availability: PreOrder

Supplier number: KNIPEX 97 49 61 | EAN 4003773045137

Recommended Retail Price €214.17

139.80 tax incl.

€115.54 excl. VAT (incl. all environmental contributions)

On order: delivered from 14/10/2026

Ordered before 20:00 - delivered as of 14/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Accurate crimping for turned contacts

Practical benefits

Reliable Knipex system fit: You insert the crimping die smoothly into system pliers to achieve consistent connections on turned contacts.
Four dedicated crimping positions: Covering capacities from 1.5 to 6 mm², you handle multiple wire sizes with accurate square compression.
High mechanical joint stability: The precision-machined square profile ensures low contact resistance and solid conductor retention under demanding conditions.

In a nutshell

The right choise for

With the Knipex 97 49 61 crimping die, you achieve reliable, standardized crimp connections on turned contacts, such as Harting industrial connectors. This interchangeable die inserts smoothly into your Knipex 97 43 series crimp system pliers, eliminating the need to carry a separate dedicated tool. Four dedicated crimping positions for wire sizes of 1.5 mm², 2.5 mm², 4.0 mm², and 6.0 mm² allow you to handle multiple conductor cross-sections with ease. The precision square crimp profile delivers solid mechanical retention and dependable electrical conductivity for control cabinet wiring and industrial machinery maintenance.

Product information Accessories FAQ

€139.80

tax incl.

Key features according to our expert

Accessory/Part type: Crimp jaw
Shrinkage capacity: 1,5 - 6 mm²

Product description

Application: twisted contacts 1.5 / 2.5 / 4 / 6 mm

Documents

⤓ Product sheet PDF

All Features

Accessory/part type: Crimp jaw
Shrinkage capacity: 1,5 - 6 mm²
Dimensions: 50 x 17 mm
Weight: 46 g
Rohs compliance: irrelevant
Reach compliance: does not contain SVHC

Brand KNIPEX
03065402
EAN 4003773045137
Supplier number KNIPEX 97 49 61

Accessories

KNIPEX 97 49 91 positioning aid for 97 49 61 (harting)

Recommended Retail Price €111.74

80.20

€66.28 excl. VAT

Delivery time average 9 days.

Frequently asked questions about this product

Answered by specialists

What is the Knipex 97 49 61 crimping die used for?: It is designed for securely crimping turned contacts, such as Harting industrial connectors.
What is the crimping capacity of this die set?: It features four crimping positions for capacities of 1.5 mm², 2.5 mm², 4.0 mm², and 6.0 mm² (AWG 16 - 10).
Which pliers are compatible with this crimping die?: It is compatible with all Knipex crimp system pliers from the 97 43 series.
What crimp profile does this die produce?: It produces an exact square crimp profile on turned contacts.
Is a locator available for this crimping die?: Yes, the optional Knipex 97 49 91 locator can be used to hold and position the contacts accurately.
