Smooth removal of flush bearings
- Fast and centered clamping: The quick-clamping pressure spindle allows you to firmly position the wedge-shaped separator blades beneath tight components.
- Safe damage-free part extraction: Large contact surfaces in the Kukko 17-B separator set protect sensitive bearings from warping during demanding pulling tasks.
- Extended reach for bearings: You handle separation diameters from 22 mm to 115 mm and reach pulling depths up to 350 mm with extensions.

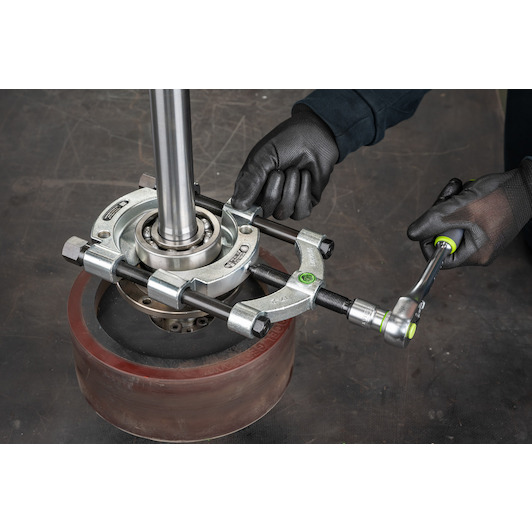

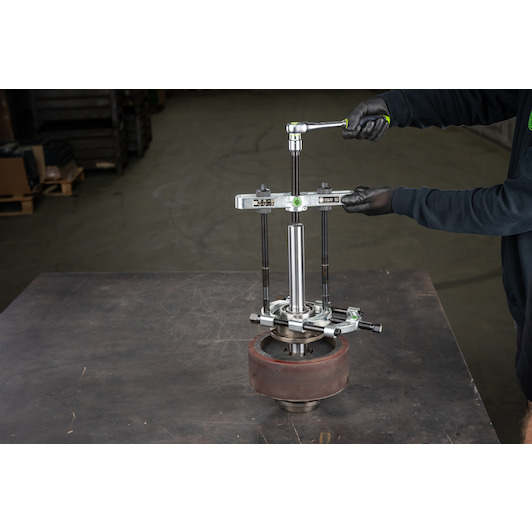

With the Kukko 17-B separator set, you effortlessly remove flush-mounted ball bearings, roller bearings, and inner races where standard puller hooks cannot reach. Thanks to the quick-clamping pressure spindle, you position and tighten the sharp wedge-shaped separator blades quickly and concentrically beneath the component. The large supporting surfaces distribute force evenly, protecting delicate shafts and adjacent machinery from damage during extraction. This four-piece set provides a separation diameter from 22 mm to 115 mm and a clamping depth of 260 mm with the 18-2 pulling device, easily extendable up to 350 mm using the included 100 mm extension rods.

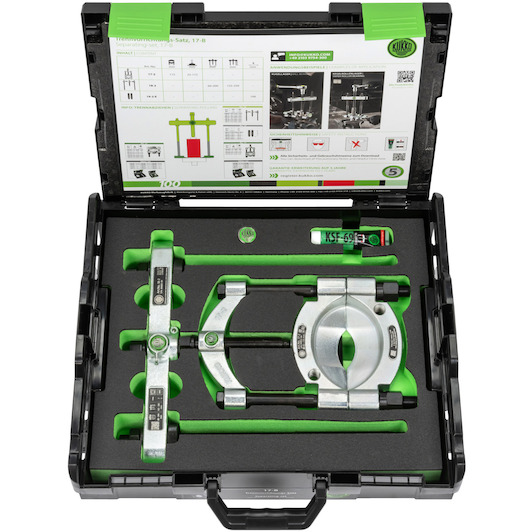

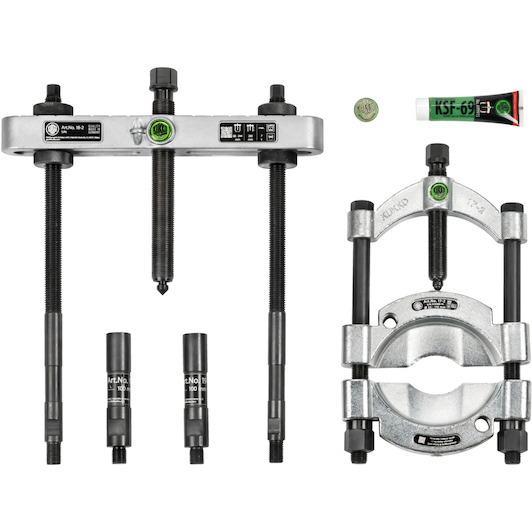

Scope of delivery
- 017235:Screw with nut for emergency tractors 17-B, 17-2
- 018275:Draw bolts for auxiliary tractors 17-B, 15-B, 68-2, 18-2, 18-2-B
- 17-2:Manure puller with quick-release spindle, separation diameter 22 mm - 115 mm, 41 mm usable cutting depth
- 17-2-06:Push spindle for fertiliser tractors with quick-release spindle 17-2, 17-B
- 17-2-T:Bridge for fertiliser tractors with quick-release pressure spindle 17-2, 17-B
- 18-2:Auxiliary trigger, up to clamping range, 260 mm clamping depth M14x1.5
- 18-2-T:Bridge for auxiliary tractors 17-B, 18-2, 18-2-B, 15-B
- 19-2-P:Two extension/extensions for auxiliary pullers (100 mm extension/extension, fixing thread M14x1.5)
- 621170:Spindle Ø 20.955 mm for spindle Thread G 1/2" / 14, 170 mm length, 5.4 mm Screw thread
Product description
The 4-piece slurry puller set 17-B is used for pulling ball bearings, roller bearings, inner rings and other flush parts in craft, industry and workshop, when there is insufficient space for puller hooks. Separating pulls allow those parts to be gently separated before they can be pulled externally. Compared to series 15, series 17 is particularly handy, as the separating jaws are tensioned quickly and centrically via a pressure spindle. Included in this 4-piece set are a slurry puller and an Auxiliary puller as well as a pair of extensions, ensuring the full range of application.
Application
For pulling ball bearings, roller bearings, inner rings and other flat adjacent parts in Craft, Industry and workshop.
