KUKKO 17-K manure puller set 60 mm

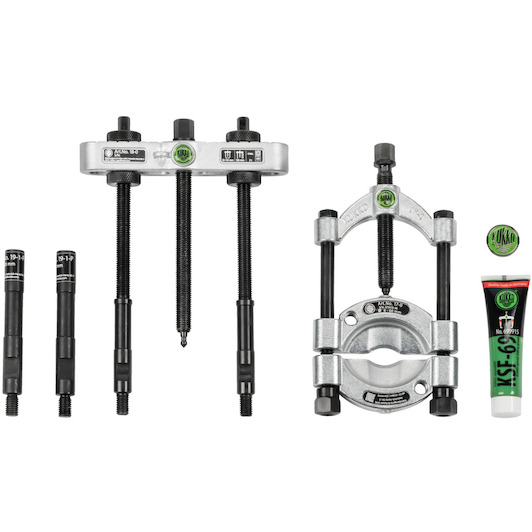

Scope of delivery

• 017140:Screw with nut for emergency tractors 17-K, 17-0
• 018175:Draw bolts for auxiliary tractors 17-K, 18-0, 15-K
• 17-0:Manure puller with quick-release spindle, separation diameter 8 mm - 60 mm, 21 mm usable cutting depth
• 17-0-T:Fertiliser tractor bridge with quick-release spindle 17-K, 17-0, 17-1
• 18-0:Auxiliary trigger, up to clamping range, 150 mm clamping depth M10
• 18-0-T:Bridge for auxiliary tractors 17-K, 18-0, 15-K
• 19-1-P:Two extensions for auxiliary pullers (100 mm extension / extensions, fixing thread M10)
• 612130:Spindle Ø 12 mm for spindle Thread M 12x1.5, 130 mm length, 4.5 mm Screw thread

Product description

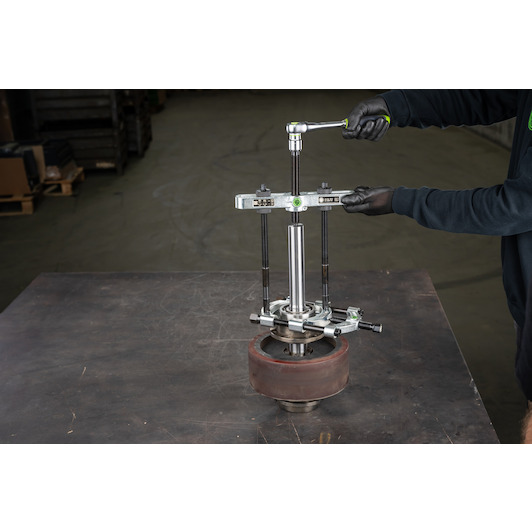

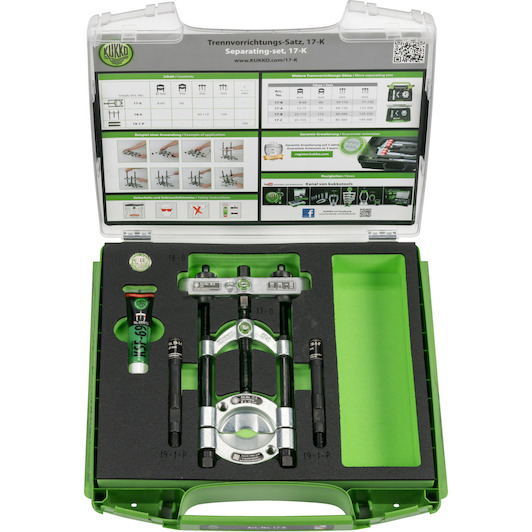

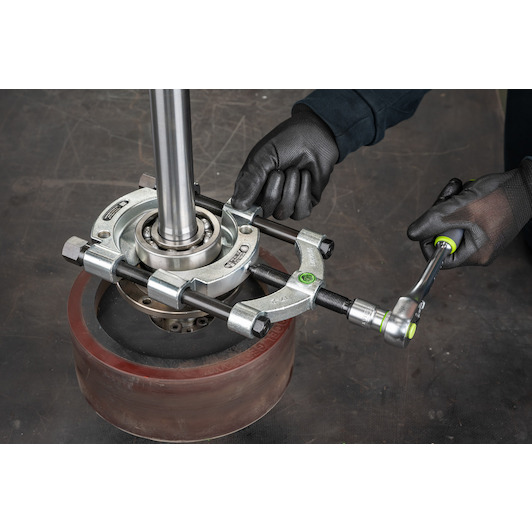

The 4-piece slurry puller set 17-K is used for pulling ball bearings, roller bearings, inner rings and other flat facing parts in Crafts, Industry and workshop, when sufficient space is not available for puller hooks. The separating pulling process is capable of gently separating these parts before they can be pulled externally. Compared to series 15, series 17 is particularly handy as the separating jaws are tensioned quickly and centrally using a pressure spindle. Included in this 4-piece set are one slurry puller and one Auxiliary puller as well as a pair of extensions, ensuring the full range of application.

Application

For pulling ball bearings, roller bearings, inner rings and other flat adjacent parts in Craft, Industry and workshop.
