KUKKO 18-3 subtractor for 15/3

Name: KUKKO 18-3 subtractor for 15/3
Brand: KUKKO
SKU: 41230045
Price: 329.95 EUR
Availability: PreOrder

Supplier number: KUKKO 18-3 | EAN 4021176005961

329.95 tax incl.

€272.69 excl. VAT (incl. all environmental contributions)

On order: delivered from 03/10/2026

Ordered before 20:00 - delivered as of 03/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Controlled extraction of stubborn mechanical components

Practical benefits

High pulling load capacity: You remove tightly seated bearings and gears effortlessly with up to 10 t of maximum tractive force.
Secure and rigid mounting: Bolting directly to series 15 and 17 separators ensures outstanding stability and prevents slippage during extraction.
Heavy-duty Kukko 18-3 build: Precision-machined steel components withstand a tightening torque of 280 Nm in demanding workshop environments.

In a nutshell

The right choise for

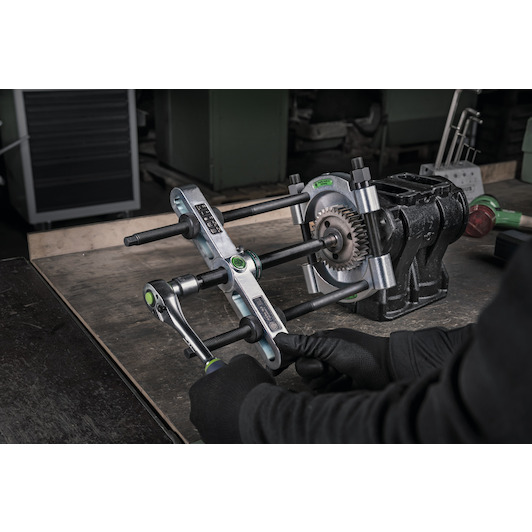

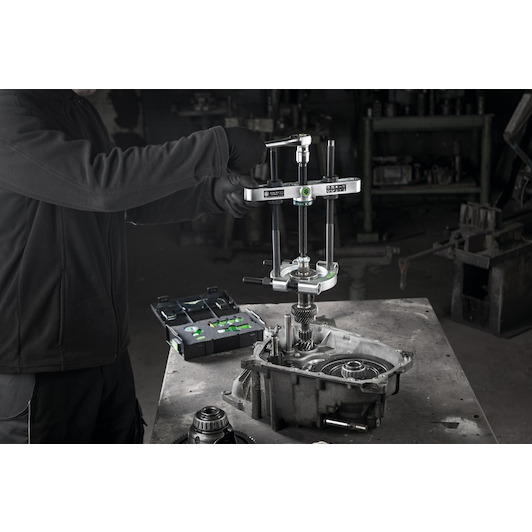

When standard puller hooks lack clearance behind flush-mounted components, the Kukko 18-3 pulling device provides the right solution. Combined with series 15-3 and 17-3 separators, you effortlessly dismount tightly seated bearings, gears, and pinions without damaging surrounding shafts. The rigid bridge and sturdy threaded tension bolts create a solid connection that prevents slippage during extraction. Delivering up to 10 t of mechanical pulling force, a maximum torque of 280 Nm, and a spread range of 80 to 300 mm, it gives you complete control over heavy workshop jobs. The mechanical pressure spindle is operated smoothly using a 27 mm wrench.

Product information FAQ

€329.95

tax incl.

Key features according to our expert

Min. width: 144 mm; 5 5/8 inch
Min. height: 144 mm; 5 5/8 inch
Max. height: 300 mm; 11 7/8 inch
Max. load: 10 t
Max. tightening torque: 280 Nm
Width across flats: 27 mm
For model: 15-3; 17-3
Max. width: 300 mm; 11 7/8 inch

Scope of delivery

018355:Pull bolts for auxiliary pullers 17-C, 15-C, 18-3, 18-3-B
18-3-T:Bridge for auxiliary pullers 17-C, 18-3, 18-3-B, 15-C
626300:Spindle Ø 26.441 mm for spindle thread G 3/4" / 14, 300 mm length, 5.4 mm Screw thread

Product description

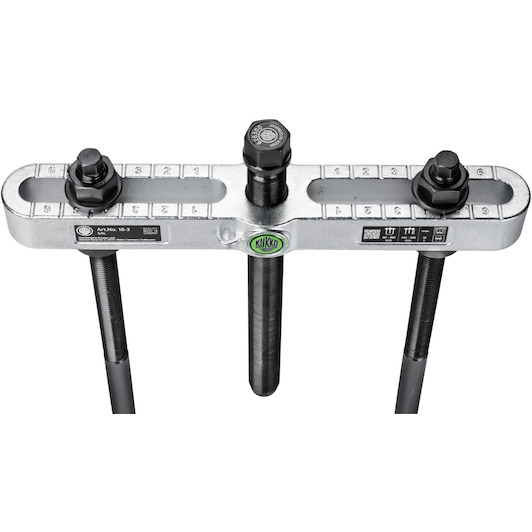

The series 18 auxiliary pullers are used together with the series 15 and 17 fattening pullers to pull off flat adjoining or thin-walled Parts in Crafts, Industry and workshop, when insufficient space is available for towing hooks. The process of Separating Pulling is capable of gently separating those Parts first, before they can be pulled off from outside. For accurate adjustment, a scale with number values is located above the Bridge. At the bottom of the pulling bolts is a key area for safely connecting or loosening joints or components.

Application

For pulling flat-lying or thin-walled Parts in Craft, Industry and workshop.

All Features

Min. width: 144 mm; 5 5/8 inch
Min. height: 144 mm; 5 5/8 inch
Max. height: 300 mm; 11 7/8 inch
Max. load: 10 t
Max. tightening torque: 280 Nm
Width across flats: 27 mm
For model: 15-3; 17-3
Max. width: 300 mm; 11 7/8 inch

Brand KUKKO
41230045
EAN 4021176005961
Supplier number KUKKO 18-3

Frequently asked questions about this product

Answered by specialists

What is the Kukko 18-3 pulling device used for?: It is used with bearing separators to remove flush-mounted components like bearings and gears where jaws cannot fit.
Which separator models are compatible with this device?: This model is compatible with Kukko separator models 15-3 and 17-3.
What is the maximum load capacity of this tool?: It provides a maximum load capacity of 10 t (100 kN) with a maximum torque of 280 Nm.

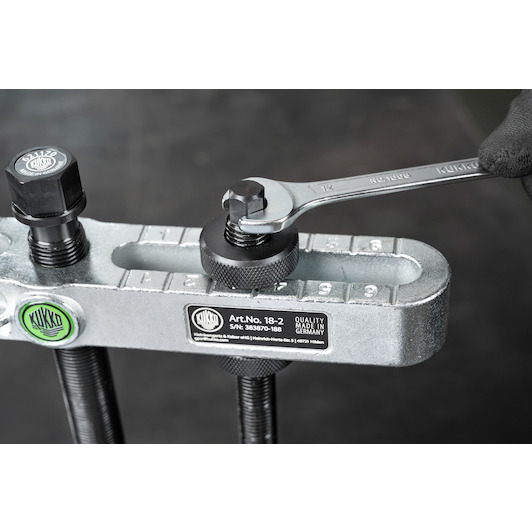

What wrench size is required for the spindle?: You need a 27 mm wrench size (SW 27 mm) to operate the pressure spindle.
What are the spread range and reach dimensions?: It features a spread range of 80 to 300 mm and a maximum reach of 300 mm.
