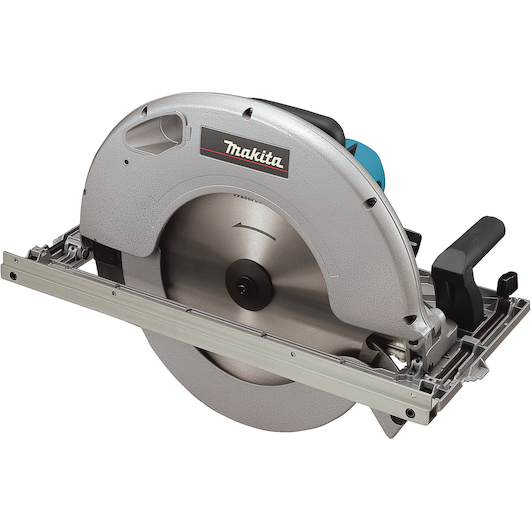

MAKITA 5143R circular saw 355mm 2200W

MAKITA
Supplier number: MAKITA 5143R | EAN 0088381018241
Recommended Retail Price €1,039.84
803.68 tax incl.
€664.20 excl. VAT (incl. all environmental contributions)
On order: delivered from 14/10/2026

✆ Talk to a specialist

High-capacity cutting with the Makita 5143R

Practical benefits
  • Massive depth of cut: The 355 mm blade allows you to achieve clean cuts up to a depth of 130 mm.
  • Safe and smooth operation: A built-in riving knife and soft start mechanism prevent binding and sudden recoil while cutting dense timber.
  • Continuous heavy-duty power: The 2200W motor delivers dependable cutting performance through tough construction materials without stalling.

In a nutshell

The right choise for

With the Makita 5143R circular saw, you can slice through thick structural beams and timber framing in a single pass. Driven by a formidable 2200W motor and a large 355 mm blade, it delivers a maximum cutting depth of 130 mm at 90° and 90 mm at 45°, eliminating the need to flip heavy timber. The soft start mechanism provides smooth, controlled starts, while the built-in riving knife prevents dangerous blade binding under heavy loads. This robust machine is supplied in a cardboard box with a parallel guide, dust extraction joint set, and a Makforce tct saw blade.



Product information Accessories FAQ
€803.68
tax incl.

Product information

Key features according to our expert

  • Saw blade diameter: 355 mm
  • Max. cutting depth: 130 mm
  • Max. cutting depth at 90°: 130 mm
  • Max. cutting depth at 45°: 90 mm
  • Plunge saw: No
  • Riving knife: Yes
  • Supplied in: Cardboard box
  • Type of system case: Not applicable
  • Weight: 12,5 kg
  • Power: 2200 W

Scope of delivery

  • 1 x 152498-8 Parallel guide
  • 1 x 415816-4 Coupling set Ø 30 / 38 mm
  • 1 x B-32188 Circular saw blade, Makforce TCT, 355 x 30 mm, 24 T

Product description

Large heavy-duty saw

A large circular saw with a 2200 W motor and a speed of 2700 min¯¹. The tool is suitable for 355 mm diameter blades with a huge cutting depth of 130 mm. Soft-start for extra safety.

  • Spindle lock for quick and easy blade changes
  • Super Joint System (SJS) mechanical clutch system helps minimise damage to motor and gears
  • Soft-start function for smooth start-up

All Features

Saw blade diameter
355 mm
Max. cutting depth
130 mm
Max. cutting depth at 90°
130 mm
Max. cutting depth at 45°
90 mm
Plunge saw
No
Riving knife
Yes
Supplied in
Cardboard box
Type of system case
Not applicable
Weight
12,5 kg
Power
2200 W
Blade diameter
355 mm
Noise uncertainty (k-factor)
3 dB(A)
Electronic brake
1
Max. chamfer range (right)
0 - 60 º
Weight without cable
12.5 kg
Vibration uncertainty (k factor), metal sawing
1.5 m/s²
Power cable
5,0 m
Dust extraction connection ø inw/outw
30 / 38 mm
Max. cutting depth at 60°
60 mm
Maximum power output
3400 W
Dimensions (l x w x h)
607 x 323 x 416 mm
Shaft hole
30 mm
Rated power
2200 W
Vibration uncertainty (k factor), sawing wood
1.5 m/s²

Accessories

Frequently asked questions about this product

Answered by specialists
What is the maximum cutting depth of the Makita 5143R?
The maximum cutting depth is 130 mm at 90° and 90 mm at a 45° angle.
Which saw blades are compatible with this circular saw?
The tool requires saw blades with a 355 mm diameter and a 30 mm bore.
Can the Makita 5143R be used as a plunge saw?
No, this is a dedicated circular saw and does not have a plunge function.
Does this machine feature a riving knife?
Yes, this model comes equipped with a riving knife for safer cutting.
What accessories are included in the scope of delivery?
It includes a parallel guide, a dust extraction adapter (Ø 30 / 38 mm), and a Makforce TCT blade (355 x 30 mm, 24T).
