What is the Makita 7104L-30 used for?

It is designed for cutting mortises and joints in thick timber framing and wood beam constructions.

What chain width is included with this machine?

It comes equipped with a guide bar, sprocket, and cutter chain for a 30 mm mortising width.

What are the motor specifications?

The tool features an 1140 W motor with a no-load speed of 3200 RPM.

What items are included in the box?

You receive the 30 mm guide bar (122235-4), sprocket (221502-5), 30 mm cutter chain (A-16617), and a 13-17 wrench (781204-0).

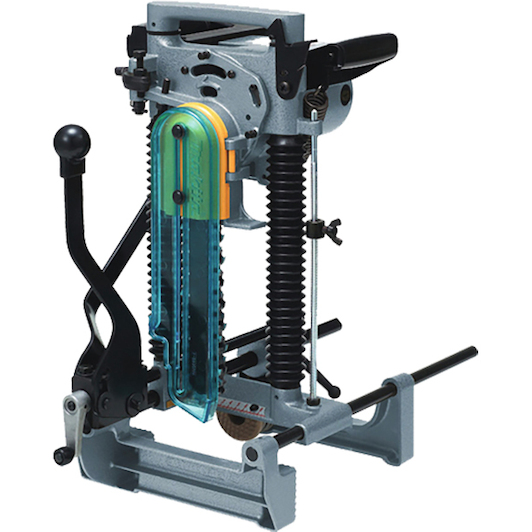

MAKITA 7104L-30 chain milling machine 30mm 1140W

Name: MAKITA 7104L-30 chain milling machine 30mm 1140W
Brand: MAKITA
SKU: 02669091
Price: 1542.68 EUR
Availability: PreOrder

Supplier number: MAKITA 7104L-30 | EAN 3240890389091

Variant

Recommended Retail Price €1,995.74

1,542.68 tax incl.

€1,274.94 excl. VAT (incl. all environmental contributions)

On order: delivered from 26/10/2026

Ordered before 20:00 - delivered as of 26/10/2026
Free shipping
Delivery by DHL
Up to 5 years warranty on Makita after successful registration!
Delivered from Belgium

✆ Talk to a specialist

Fast timber mortising with Makita

Practical benefits

Powerful cutting performance: The 1140W motor and 3200 rpm speed allow you to cut through heavy timber with ease.
Clean and accurate mortises: You achieve precise, repeatable joint slots thanks to stable chain guidance and depth control.
Secure workpiece clamping: The integrated vise securely clamps the tool directly to large beams for stable and accurate cutting.

In a nutshell

The right choise for

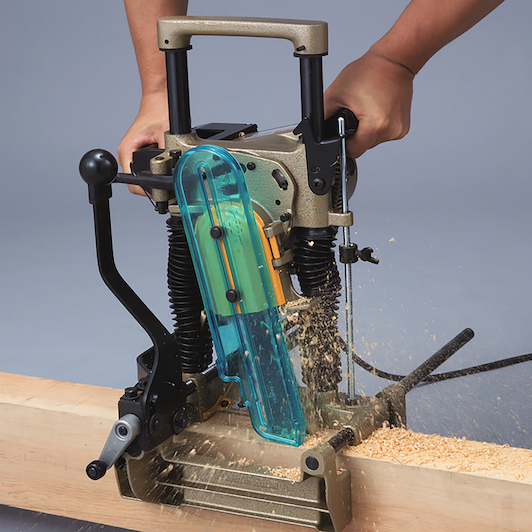

With the Makita 7104L-30, you cut deep mortises and tenon joints quickly and accurately in heavy structural beams and timber framing. Laborious manual drilling and chiseling are replaced by the powerful 1140W motor running at a no-load speed of 3200 RPM. The integrated vise clamps firmly onto solid wood, keeping the tool perfectly stable and preventing slipping during heavy cutting passes. Combined with the rigid bar and precise depth control, you produce clean, uniform joint slots every time. This chain mortiser comes complete with a guide bar, sprocket, 30 mm cutter chain, and a 13-17 wrench.

Product information FAQ

€1,542.68

tax incl.

Key features according to our expert

Power: 1140 W
No-load speed: 3200 /min.

Scope of delivery

1 x 122235-4 Sword for 30 mm chain
1 x 221502-5 Sprocket 30 mm
1 x 781204-0 Wrench 13 - 17
1 x A-16617 Milling chain 30 mm

Product description

Ideal for timber frame or round timber constructions

Makita 7104L chain router with 1140W motor delivers 3200 min¯¹ to quickly make notches or cut holes in thick timber and cuts half-wood joints up to 130 mm. The razor-sharp chain is designed for clean and precise cutting, with a large adjustable chuck and knob for more versatility

All Features

Power: 1140 W
No-load speed: 3200 /min.
Noise uncertainty (k-factor): 3 dB(A)
Power cable: 5 m
Vibration uncertainty (k-factor): 1.5 m/s²
Dimensions (l x w x h): 512 x 298 x 513 mm
Rated power: 1140 W

Brand MAKITA
02669091
EAN 3240890389091
Supplier number MAKITA 7104L-30
Warranty Up to 5 years warranty on Makita after successful registration!

Frequently asked questions about this product

Answered by specialists

What is the Makita 7104L-30 used for?: It is designed for cutting mortises and joints in thick timber framing and wood beam constructions.
What chain width is included with this machine?: It comes equipped with a guide bar, sprocket, and cutter chain for a 30 mm mortising width.
What are the motor specifications?: The tool features an 1140 W motor with a no-load speed of 3200 RPM.
What items are included in the box?: You receive the 30 mm guide bar (122235-4), sprocket (221502-5), 30 mm cutter chain (A-16617), and a 13-17 wrench (781204-0).
