What is the maximum cutting depth of this diamond cutter?

The maximum cutting depth is 40 mm at 90° and 27 mm at 45°.

Can this machine be used for both wet and dry cutting?

Yes, it is designed for both wet and dry applications and includes a dust cover, dust bag, and water supply hose.

Which batteries and charger are included in this set?

The set includes two 18V 5.0 Ah BL1850B batteries, one DC18RC fast charger, and a Makpac III case.

What disc size does this diamond cutter use?

It is compatible with 125 mm diameter diamond discs with a 20 mm bore size.

Which materials can you cut with this tool?

It is suitable for cutting tiles, concrete, masonry, stone, and ceramics.

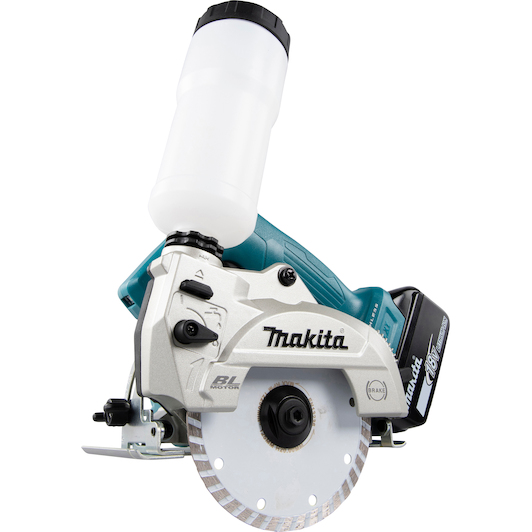

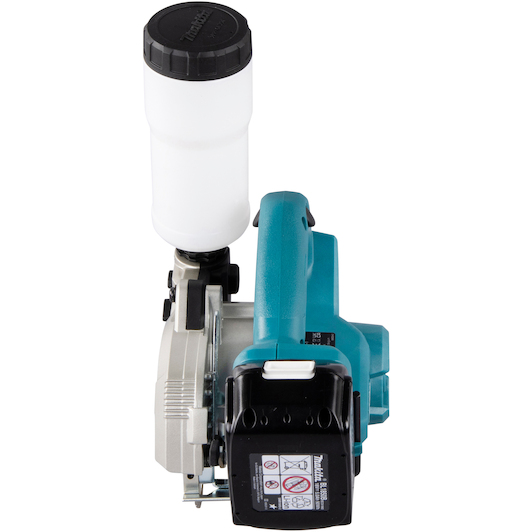

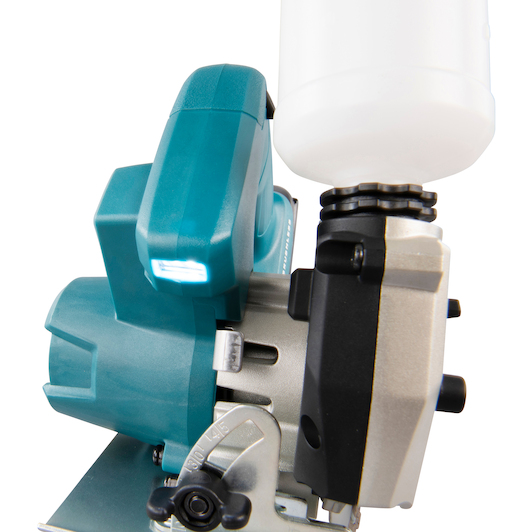

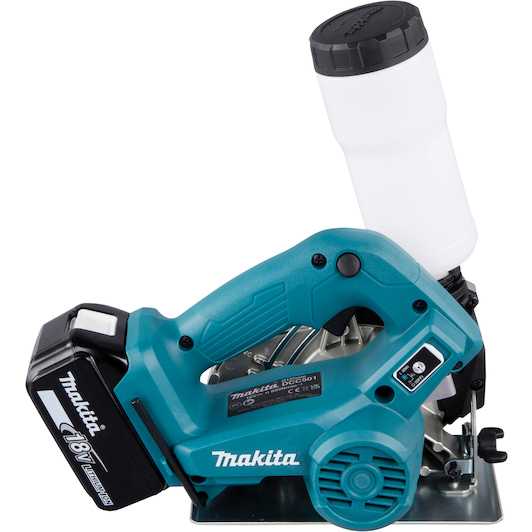

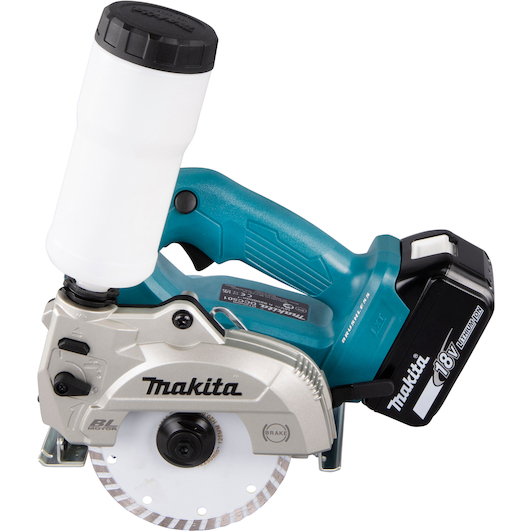

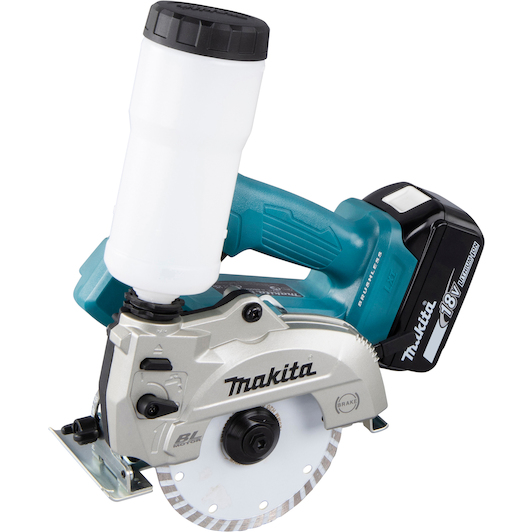

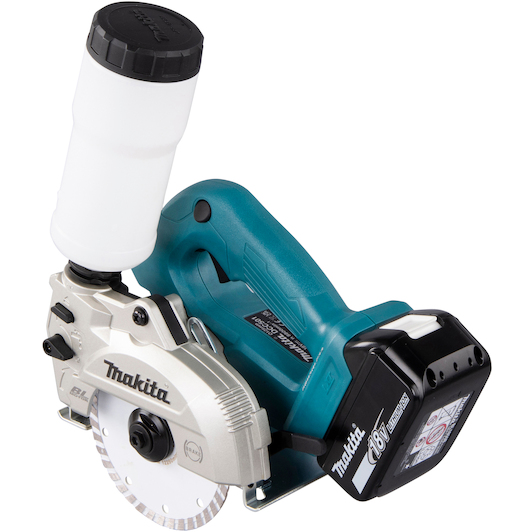

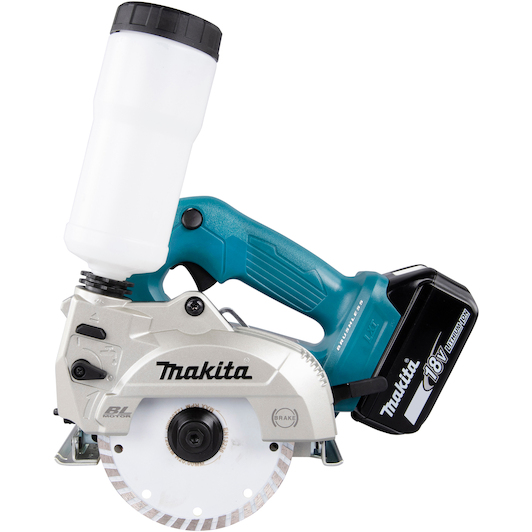

MAKITA DCC501RTJ 18V diamond grinder 125mm in MAKPAC (2x 5.0Ah battery + charger)

Name: MAKITA DCC501RTJ 18V diamond grinder 125mm in MAKPAC (2x 5.0Ah battery + charger)
Brand: MAKITA
SKU: 03174079
Price: 491.72 EUR
Availability: PreOrder

Supplier number: MAKITA DCC501RTJ | EAN 0088381738484

Variant

Recommended Retail Price €618.88

491.72 tax incl.

€406.38 excl. VAT (incl. all environmental contributions)

On order: delivered from 13/10/2026

Ordered before 20:00 - delivered as of 13/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

High-performance cutting with the Makita diamond cutter

Practical benefits

Cleaner cuts with dust extraction: The Auto-start Wireless System connects to compatible vacuums via bluetooth to remove dust directly at the source.
Brushless power through masonry: The brushless motor ensures you slice smoothly through dense concrete, hard tiles, and masonry.
Reliable water and dust resistance: Integrated XPT construction keeps the tool fully protected against moisture and fine particles on harsh jobsites.

In a nutshell

The right choise for

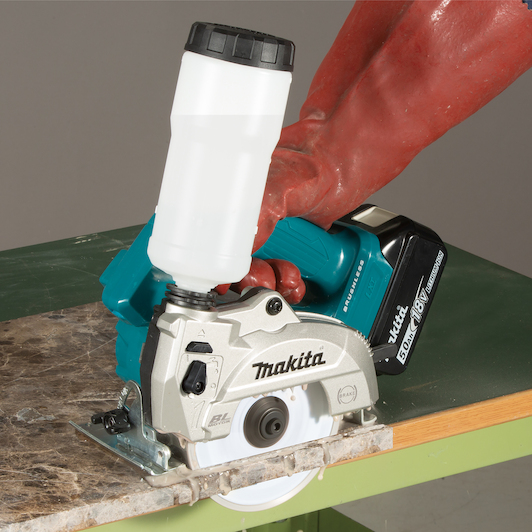

With the Makita DCC501RTJ diamond cutter, you achieve clean, accurate cuts through tiles, concrete, masonry, and natural stone. The brushless motor delivers dependable cutting performance with a maximum cutting depth of 40 mm at 90° and 27 mm at 45°. Equipped with a dust cover, dust bag, and water supply hose, the tool easily adapts to both low-dust dry cutting and wet cutting tasks. The Auto-start Wireless System connects via bluetooth to compatible vacuums for a cleaner jobsite, while xpt technology guards against moisture and fine particles. Supplied with two 18V 5.0 Ah BL1850B batteries, a DC18RC fast charger, and a Makpac III case, you can work continuously anywhere on site.

Product information Accessories FAQ

€491.72

tax incl.

Key features according to our expert

Battery voltage: 18 V
Capacity (battery): 5 Ah
(Disc) diameter: 125 mm
Number of batteries included: 2
Product Range: Makita LXT 18V

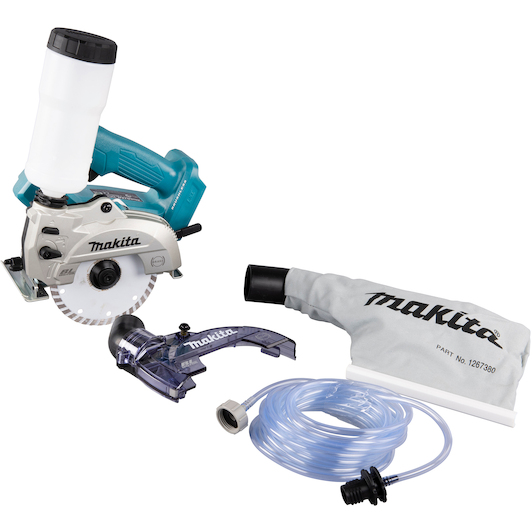

Scope of delivery

1 x 1914J1-4 Battery charger LXT® DC18RC
2 x 197280-8 Battery LXT® 5.0 Ah BL1850B
1 x 126738-0 Dust bag
1 x 127750-3 Dust cap
1 x 140Y23-7 Water supply hose complete A
1 x 783217-7 Allen spanner 5.0 mm
1 x 821551-8 Makpac case III

Product description

Brushless motor delivers high power and excellent results.

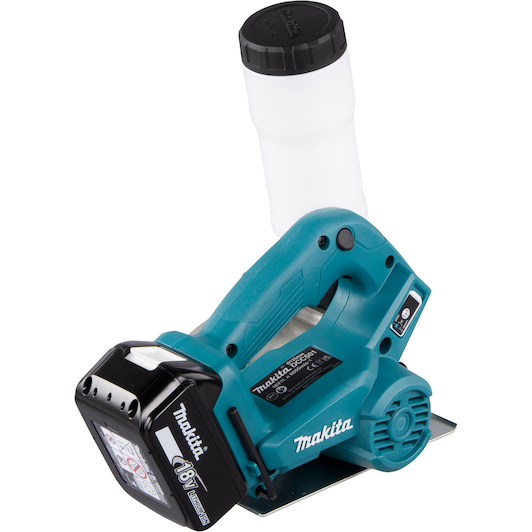

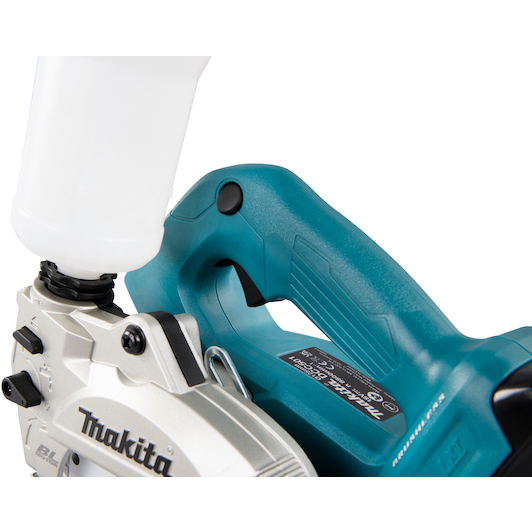

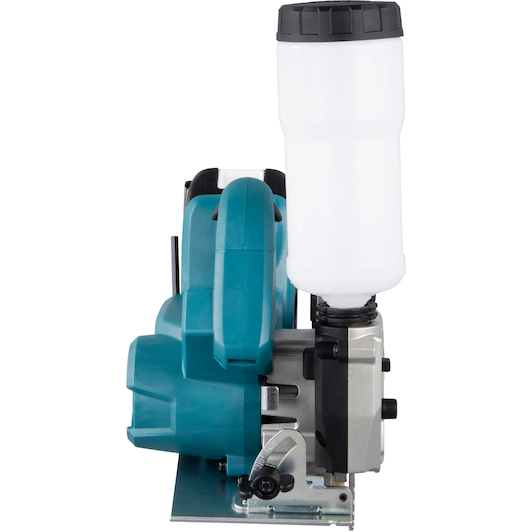

LXT® powered grinder with brushless motor delivers high power and excellent results. The water supply attachment with a tank capacity of 500 ml is included as standard. Adapter for use on a guide rail optionally available.

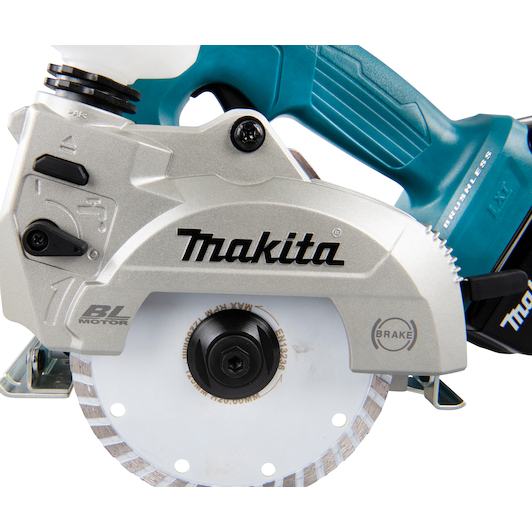

The wide housing allows the use of a curved diamond wheel
The eXtreme Protection Technology (XPT) guarantees good dust and water resistance.
The brushless motor (BL) is highly efficient and delivers high power
The battery protection system automatically switches off the power when the battery level is low

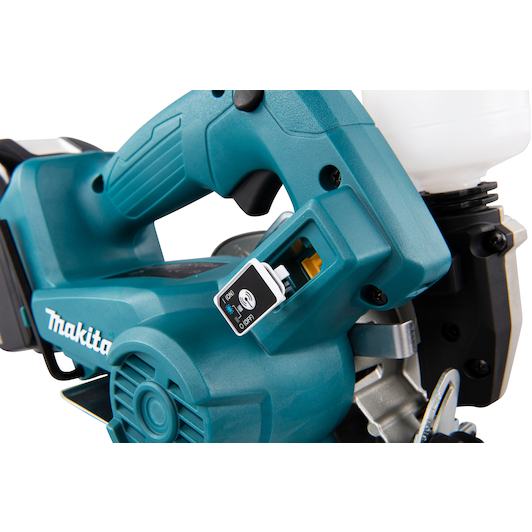

The Auto-start Wireless System (AWS) connects to compatible hoovers via bluetooth.
Powerful cutting in stone, masonry, tiles and concrete

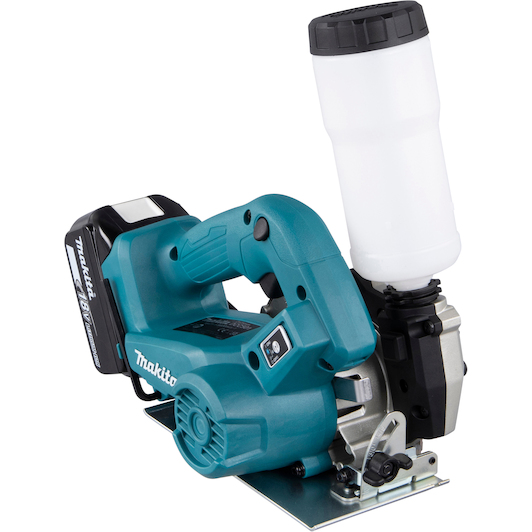

Design with large top handle for increased comfort
Two-stage safety trigger minimises accidental start-up

The DCC501 has a dust cover to minimise dust dispersion. The Auto-start Wireless System (AWS) connects to compatible hoovers via bluetooth. The eXtreme Protection Technology (XPT) is designed for improved dust and water resistance for use in harsh conditions. The DCC501 is the choice when you need to cut efficiently in stone, masonry, tiles, concrete and more.

All Features

Battery voltage: 18 V
Capacity (battery): 5 Ah
(disc) diameter: 125 mm
Number of batteries included: 2
Lxt voltage: 1
Product range: Makita LXT 18V
Weight with battery: 2.7 - 3.0 kg
Diameter of the disc: 125 mm
Vibration level, cutting concrete: 4.0 m/s²
Aws compatible: 1
Brushless motor: 1
Noise uncertainty (k-factor): 3 dB(A)
Max. cutting depth at 45°: 27 mm
Nominal battery voltage: 18 V
Dimensions (l x w x h): 283 x 163 x 172 mm
Max. cutting depth at 90°: 40 mm
Shaft hole: 20 mm

Brand MAKITA
03174079
EAN 0088381738484
Supplier number MAKITA DCC501RTJ

Accessories

MAKITA 1916F4-2 Guide rail adapter for 4100 / DCC500 / DCC501

Recommended Retail Price €41.39

23.80

€19.67 excl. VAT

On stock, immediately available.

MAKITA B-21951 Full-band diamond wheel concrete 125mm

Recommended Retail Price €67.60

43.40

€35.87 excl. VAT

Delivery time average 4 days.

Frequently asked questions about this product

Answered by specialists

What is the maximum cutting depth of this diamond cutter?: The maximum cutting depth is 40 mm at 90° and 27 mm at 45°.
Can this machine be used for both wet and dry cutting?: Yes, it is designed for both wet and dry applications and includes a dust cover, dust bag, and water supply hose.
Which batteries and charger are included in this set?: The set includes two 18V 5.0 Ah BL1850B batteries, one DC18RC fast charger, and a Makpac III case.
What disc size does this diamond cutter use?: It is compatible with 125 mm diameter diamond discs with a 20 mm bore size.
Which materials can you cut with this tool?: It is suitable for cutting tiles, concrete, masonry, stone, and ceramics.
