MAKITA

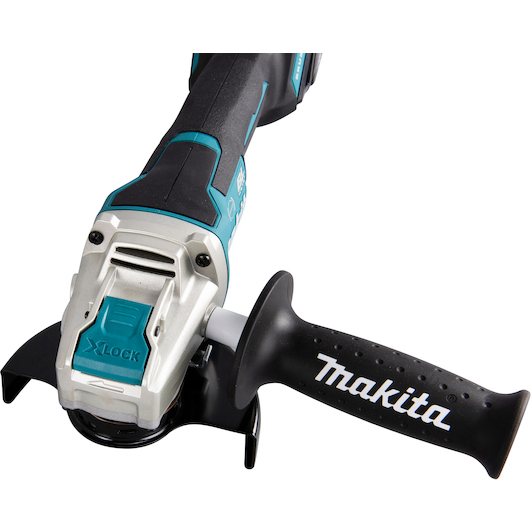

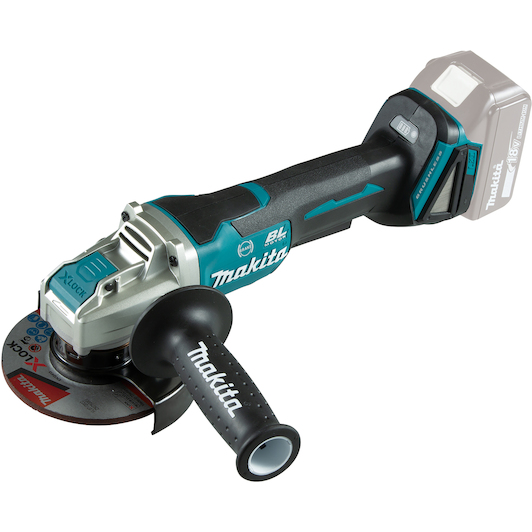

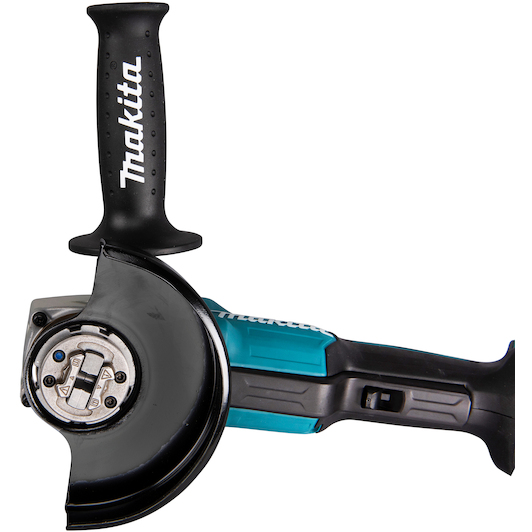

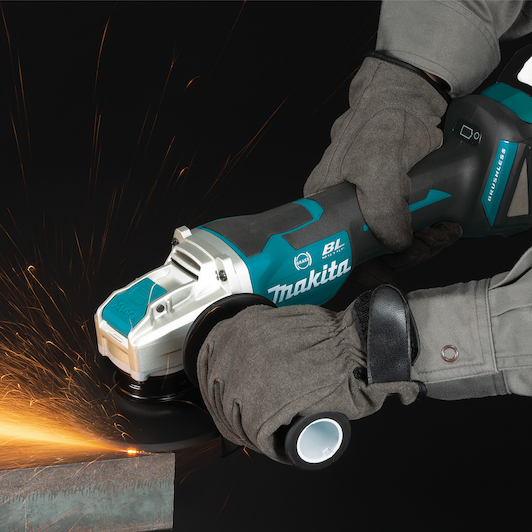

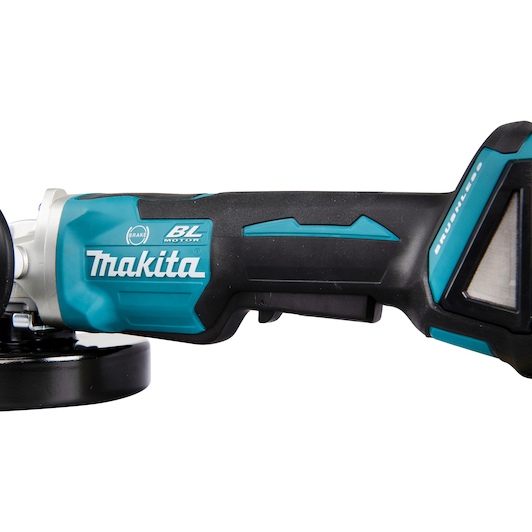

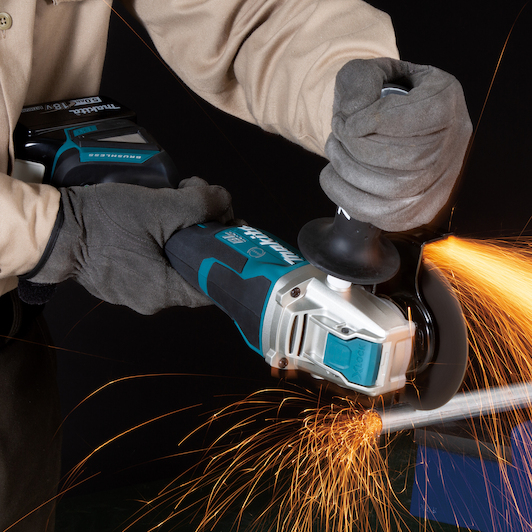

MAKITA DGA520ZX1 18V LXT cordless angle grinder 125 mm X-LOCK with spoon switch (without battery and charger)

Recommended Retail Price €277.54
220.03 tax incl.
€181.84 excl. VAT (incl. all environmental contributions)
On order: delivered from 20/05/2026
each

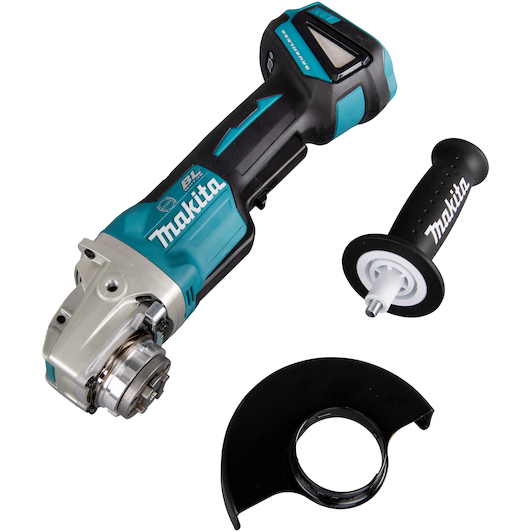

Scope of delivery

  • 1 x 158237-4 Handle 36 complete
  • 1 x 199710-5 Disc protection cap 125 mm
  • 1 x 347618-9 Disc cap for grinding, 125 mm

Product description

The X-LOCK mechanism allows X-LOCK discs to be installed/removed without tools.

The DGA520 performs optimally and is highly efficient in heavy-duty grinding applications. Spoon switch The new guard switch allows quick and easy angle adjustment and tool-free installation/removal of the guard. Only the tool, battery and charger are not included.

  • 3-stage LED meter indicates battery charge level/overheat/overload
  • Battery protection system automatically switches off power when battery level is low

Makita's new DGA520 is packed with various functions. ADT, AFT and X-LOCK system. Brushless motor delivers 8500 min¯¹. Soft-start suppresses start-up reaction for smooth start-up and longer gear life. Electric brake for maximum productivity.With X-Lock, one click is all it takes. Place the disc in the X-Lock holder and press it into place. To replace the disc, simply pull the lever and remove the disc. The X-Lock lets you change discs quickly and easily without a spanner and even with gloves on.

Key features according to our expert
  • (Disc) diameter: 125 mm
  • Number of batteries included: 0
  • Tool holder size: Not applicable
  • Tool holder type: X-Lock
  • Dead man' s switch: Yes
  • Restart protection: Yes
  • Supplied in: Cardboard box
  • Type of system case: Not applicable
  • Weight: 2,3 kg
  • UN number: Not applicable
  • Battery voltage: 18 V
  • Product Range: Makita LXT 18V
Specifications / All features
(disc) diameter
125 mm
Number of batteries included
0
Tool holder size
Not applicable
Tool holder type
X-Lock
Dead man' s switch
Yes
Restart protection
Yes
Supplied in
Cardboard box
Type of system case
Not applicable
Weight
2,3 kg
Un number
Not applicable
Battery voltage
18 V
Max. cutting depth
32 mm
Electronic brake
1
Brushless motor
1
Vibration uncertainty (k factor), plane grinding
1.5 m/s²
Vibration uncertainty (k factor), sanding
1.5 m/s²
Vibration level, surface grinding
7.0 m/s²
Diameter of the disc
125 mm
Lxt voltage
1
Noise uncertainty (k-factor)
3 dB(A)
Battery chemical composition (nicd/nimh/li-ion)
Li-ion
Anti restart function (nvr switch)
1
Nominal battery voltage
18 V
Dead man's switch (no lock)
1
Dimensions (l x w x h)
376 x 140 x 147 mm
Shaft hole
22.23 mm
Product range
Makita LXT 18V
