MAKITA

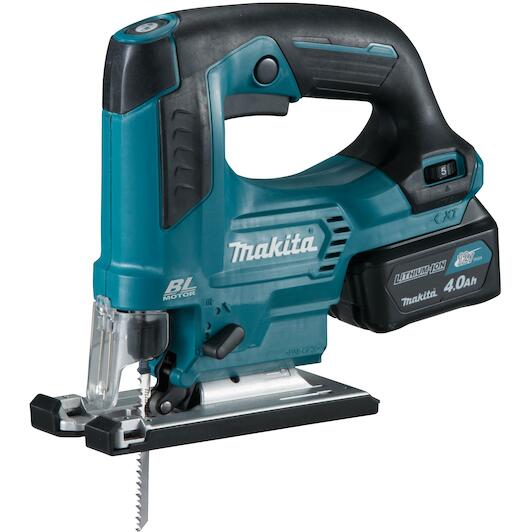

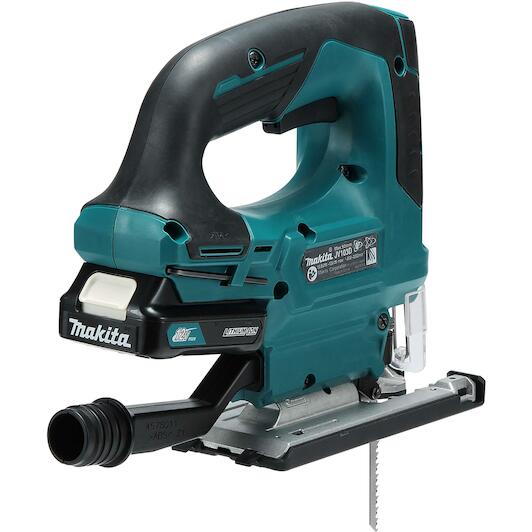

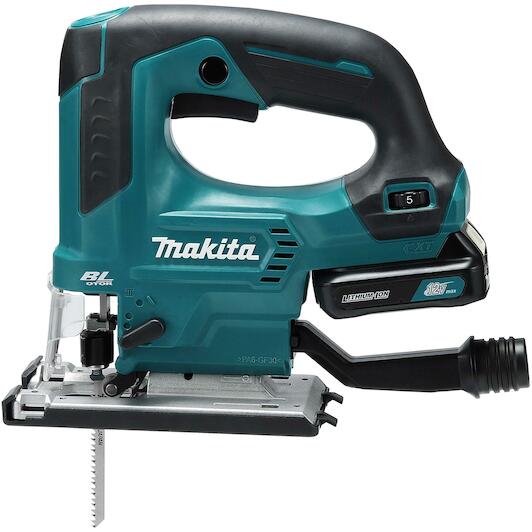

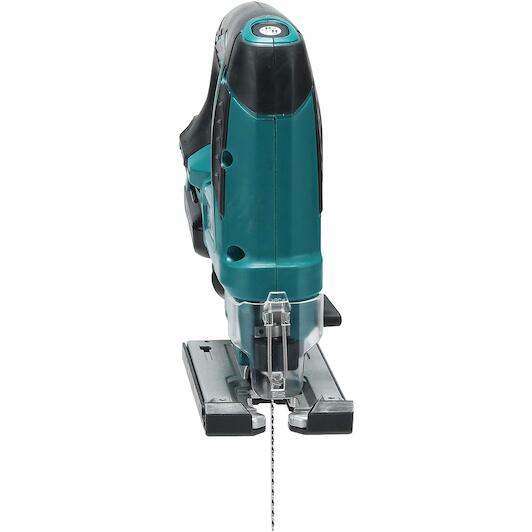

MAKITA JV103DSMJ 10.8V CXT cordless jigsaw in MAKPAC (2x 4.0Ah battery + charger)

Variant

MAKITA JV103DZJ 10.8V CXT cordless jigsaw in MAKPAC (without battery and charger) MAKITA JV103DZJ 10.8V CXT cordless jigsaw in MAKPAC (without battery and charger) MAKITA JV103DSAJ 10.8V CXT cordless jigsaw in MAKPAC (2x 2.0Ah battery + charger) MAKITA JV103DSAJ 10.8V CXT cordless jigsaw in MAKPAC (2x 2.0Ah battery + charger) MAKITA JV103DSMJ 10.8V CXT cordless jigsaw in MAKPAC (2x 4.0Ah battery + charger) MAKITA JV103DSMJ 10.8V CXT cordless jigsaw in MAKPAC (2x 4.0Ah battery + charger)
Recommended Retail Price €375.67
297.11 tax incl.
€245.54 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

Scope of delivery

  • 1 x 197363-4 Battery charger CXT® DC10SB
  • 2 x 197406-2 Battery CXT® 4.0 Ah BL1041B
  • 1 x 456128-6 CXT® battery cover
  • 1 x 783201-2 Allen spanner 3 mm
  • 1 x 821549-5 Makpac case I
  • 1 x A-85628 Jigsaw blade 105 x 1.25 mm

Product description

Lightweight brushless jigsaw with tool-free blade change

A compact, brushless saw with three-stage pendulum operation and tool-free blade change. The motor speed can be adjusted between 800 and 3000 min¯¹ using a rotary knob. A stroke length of 23 mm and a cutting capacity of 90 mm in wood and 10 mm in steel. Two 4.0 Ah batteries and a charger in a MakPac case.

  • 3 track modes
  • Compact and lightweight design
  • Battery protection system automatically switches off power when battery level is low
  • Ergonomic frame design ensures a good working position.
  • Tiltable foot for angled cuts from 0° - 45°
  • Maintenance-free, long-life brushless motor
Key features according to our expert
  • Battery voltage: 12 V
  • Vibration level (wood): 8,5 m/s²
  • Number of batteries included: 2
  • UN number: UN3481
  • Type of system case: Makpac I
  • Supplied in: System case
  • Weight: 1,6 kg
  • Max. stroke rate: 3000 /min.
  • Min. stroke rate: 800 /min.
  • Stroke length: 23 mm
  • Max. cutting depth (Wood): 90 mm
  • Capacity (battery): 4 Ah
  • Product Range: Makita CXT 12V
Specifications / All features
Battery voltage
12 V
Vibration level (wood)
8,5 m/s²
Number of batteries included
2
Un number
UN3481
Type of system case
Makpac I
Supplied in
System case
Weight
1,6 kg
Max. stroke rate
3000 /min.
Min. stroke rate
800 /min.
Stroke length
23 mm
Max. cutting depth (wood)
90 mm
Capacity (battery)
4 Ah
Vibration level, plate cutting
8.5 m/s²
Cxt battery
1
Noise uncertainty (k-factor)
3 dB(A)
Electronic brake
1
Brushless motor
1
Weight with battery
1.9 - 2.0 kg
Vibration uncertainty (k factor), plate sawing
1.5 m/s²
Max. chamfer range (right)
0 - 45 º

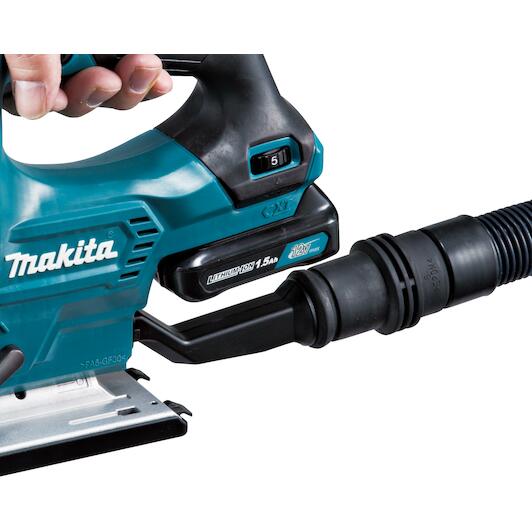

Dust extraction connection ø inw/outw
23 / 28 mm
Vibration level, cutting metal sheet
6.0 m/s²
Capacity aluminium
20 mm
Product range
Makita CXT 12V
Eccentric motion
1
Max. cutting capacity in wood (90°)
90 mm
Max. cutting capacity in steel (90°)
10 mm
Battery chemical composition (nicd/nimh/li-ion)
Li-ion
Max. chamfer range (left)
0 - 45 º
Nominal battery voltage
12 V
Dimensions (l x w x h)
237 x 76 x 206 mm
