What operating modes does this combination hammer have?

It features 3 modes: rotation only, rotation with hammering, and hammering only (chiselling).

What is the maximum drilling capacity in concrete?

The maximum drilling diameter in concrete is 26 mm when using standard SDS-plus drill bits.

Which chuck system does the Makita M8701 use?

This model uses an SDS-plus tool holder for quick and secure accessory changes.

Does this tool come with a carry case?

Yes, this combination hammer is supplied in a carry case with a depth gauge.

Does the machine feature forward and reverse rotation?

Yes, it includes a reversing switch for smooth operation in both forward and reverse directions.

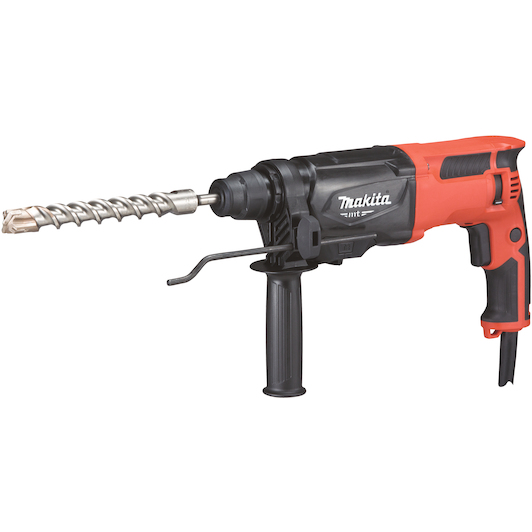

MAKITA M8701 SDS-Plus combi hammer 800W 26 mm

Name: MAKITA M8701 SDS-Plus combi hammer 800W 26 mm
Brand: MAKITA
SKU: 02824384
Price: 135.45 EUR
Availability: PreOrder

Supplier number: MAKITA M8701 | EAN 0088381831376

This product has been discontinued.

✆ Talk to a specialist

Versatile heavy-duty drilling with Makita

Practical benefits

Three versatile operating modes: You easily switch between drilling, hammer drilling, and chiselling to tackle tough masonry and dense concrete surfaces effortlessly.
Strong impact drilling power: The 800W motor delivers 2.3 J of impact energy, allowing you to bore holes up to 26 mm in concrete.
Convenient handling and storage: Weighing just 2.7 kg, you work with reduced fatigue and store the tool securely in the included carrying case.

In a nutshell

The right choise for

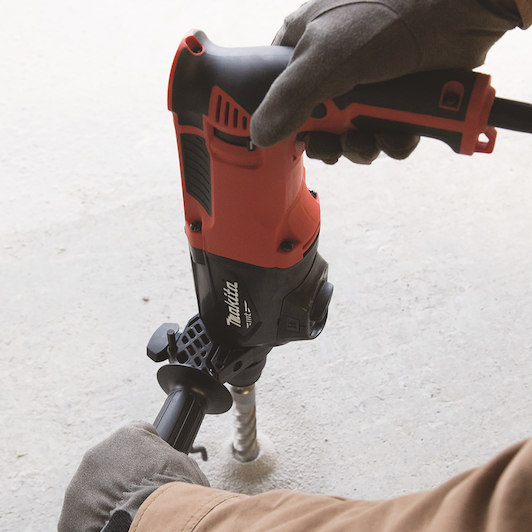

Tackle demanding drilling and chiselling tasks in masonry and concrete with the Makita M8701 combination hammer. Its powerful 800W motor delivers 2.3 j of impact energy and up to 4500 blows per minute, allowing you to drill holes up to 26 mm in concrete. With three versatile operating modes, you can easily switch between drilling, hammer drilling, and light chiselling, such as removing wall tiles or creating cable channels. The SDS-plus chuck system ensures quick and secure bit changes without slipping. Weighing just 2.7 kg and equipped with forward and reverse rotation, a depth gauge, and a durable carry case, this tool gives you total control during renovations and jobsite projects.

Product information FAQ

Key features according to our expert

Input power: 800 W
Vibration value (chiselling in concrete): 10,3 m/s²
Tool holder type: SDS-plus
Type of system case: Not applicable
Supplied in: Case
Vibration value (drilling in concrete): 15,4 m/s²
Weight: 2,7 kg
Anti-vibration system: No
Impact energy: 2,3 J
Max. impact rate: 4500 /min.
Min. impact rate: 0 /min.
Forward and reverse rotation: Yes
Max. drilling diameter (concrete): 26 mm
Product Range: Makita SDS-Plus

Scope of delivery

1 x 321144-6 Depth gauge

Product description

Combination hammer with 3 positions

Combination hammer for SDS-PLUS bits. Powerful 800 W motor. 3 settings:

Turn only, striking while turning or striking only. Capacity for concrete is 26 mm.

Variable speed control allows the user to adjust the speed according to the application.
Rubber coating on the handle ensures a firm grip
Same speed and torque in forward and reverse gear
Features 3 modes: drilling, hammer drilling or hammering only

All Features

Input power: 800 W
Vibration value (chiselling in concrete): 10,3 m/s²
Tool holder type: SDS-plus
Type of system case: Not applicable
Supplied in: Case
Vibration value (drilling in concrete): 15,4 m/s²
Weight: 2,7 kg
Anti-vibration system: No
Impact energy: 2,3 J
Max. impact rate: 4500 /min.
Min. impact rate: 0 /min.
Forward and reverse rotation: Yes
Max. drilling diameter (concrete): 26 mm
Suitable for sds-plus bits: 1
Max. drilling diameter in concrete: 26 mm
Noise uncertainty (k-factor): 3 dB(A)
Max. drilling diameter in wood: 32 mm
Weight without cable: 2.7 kg
Vibration level, chiselling: 10.3 m/s²
Vibration uncertainty (k factor), chiselling: 1.5 m/s²
Power cable: 4,0 m
Drilling diameter with tct core drill bit: 68 mm
Stroke energy: 2,3 J
Max. drilling diameter in steel: 13 mm
Dimensions (l x w x h): 362 x 71 x 194 mm
Maximum power output: 500 W
Rated power: 800 W
Product range: Makita SDS-Plus

Brand MAKITA
02824384
EAN 0088381831376
Supplier number MAKITA M8701
Warranty Up to 5 years warranty on Makita after successful registration!

Frequently asked questions about this product

Answered by specialists

What operating modes does this combination hammer have?: It features 3 modes: rotation only, rotation with hammering, and hammering only (chiselling).
What is the maximum drilling capacity in concrete?: The maximum drilling diameter in concrete is 26 mm when using standard SDS-plus drill bits.
Which chuck system does the Makita M8701 use?: This model uses an SDS-plus tool holder for quick and secure accessory changes.
Does this tool come with a carry case?: Yes, this combination hammer is supplied in a carry case with a depth gauge.
Does the machine feature forward and reverse rotation?: Yes, it includes a reversing switch for smooth operation in both forward and reverse directions.
