Which machines are compatible with this drill bit?

This drill bit features an SDS-max shank and fits rotary hammers with an SDS-max chuck.

Which materials is this bit designed for?

It is engineered for drilling into concrete, masonry, and natural stone.

What is the benefit of the 4-cutter head?

The 4 carbide cutting edges produce round holes and prevent the bit from jamming on rebar.

What is the maximum working drilling depth?

The working length is 450 mm, with an overall tool length of 570 mm.

Can this drill bit be used in an SDS-plus chuck?

No, it has an SDS-max connection and is not directly compatible with SDS-plus machines.

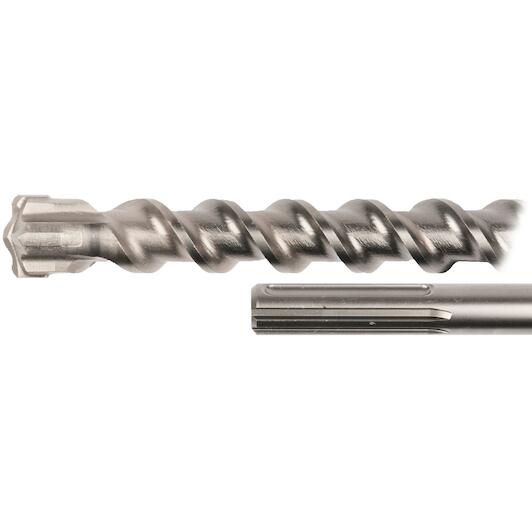

MAKITA P-77970 SDS-MAX 4-FORCE concrete drill bit 28x570mm

Name: MAKITA P-77970 SDS-MAX 4-FORCE concrete drill bit 28x570mm
Brand: MAKITA
SKU: 08055395
Price: 71.2 EUR
Availability: PreOrder

Supplier number: MAKITA P-77970 | EAN 0088381708722

Recommended Retail Price €104.70

71.20 tax incl.

€58.84 excl. VAT (incl. all environmental contributions)

On order: delivered from 07/11/2026

Ordered before 20:00 - delivered as of 07/11/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Efficient heavy-duty drilling with Makita

Practical benefits

Smooth drilling through reinforced concrete: The four-cutter carbide head prevents jamming when hitting steel reinforcement to deliver round holes.
Fast removal of drilling debris: You clear dust efficiently from deep holes thanks to the shortened flute geometry designed for high material volume.
Reliable SDS-MAX impact transfer: You transmit hammer impact directly to the tip without losing power in stone or concrete.

In a nutshell

The right choise for

With the Makita P-77970 SDS-max hammer drill bit, you drill with precision through solid and reinforced concrete, masonry, and natural stone. The symmetrical four-cutter carbide head prevents jamming when hitting steel rebar, ensuring consistently clean and round holes. Featuring a 450 mm working length and a 570 mm overall length, it allows you to create deep through-holes for pipe installations and heavy anchors with ease. The shortened flute geometry quickly clears drilling dust while reducing vibration, and the robust SDS-max shank delivers the full impact energy of your rotary hammer directly to the tip.

Product information FAQ

€71.20

tax incl.

Key features according to our expert

Diameter: 28 mm
Drill bit type: Hammer drill bit
Overall length: 570 mm
Shank type: SDS-max
Material (drill bit): Carbide tip
Number of cutting edges: 4
Cutting length: 450 mm
Product Range: Makita SDS-Max

Product description

TCT drill bit 28 x 450 / 570 mm, SDS-MAX

High-quality and durable SDS-MAX Zentro drill bit with a tip with 4 cutting edges for drilling in concrete and natural stone. Excellent grit removal thanks to shortened spiral grooves. This bit has an overall length of 570 mm, a working length of 450 mm and a diameter of 28 mm.

The Zentro drill bit with SDS-MAX connection is specially made for drilling in concrete and stone. The sharp and centred tips allow precise holes to be made. Compact, high-volume spiral grooves remove dust very efficiently during drilling. When drilling in natural stone, it is recommended to use cutting oil or equivalent to cool the blade. This significantly extends the life of the blade. Natural stone is a very hard material and if deep holes are drilled continuously, the blade gets hot and may eventually break.

All Features

Diameter: 28 mm
Drill bit type: Hammer drill bit
Overall length: 570 mm
Shank type: SDS-max
Material (drill bit): Carbide tip
Number of cutting edges: 4
Cutting length: 450 mm
Internal diameter: 28.0 mm
Working length: 450 mm
Length: 570 mm
Product range: Makita SDS-Max

Brand MAKITA
08055395
EAN 0088381708722
Supplier number MAKITA P-77970

Frequently asked questions about this product

Answered by specialists

Which machines are compatible with this drill bit?: This drill bit features an SDS-max shank and fits rotary hammers with an SDS-max chuck.
Which materials is this bit designed for?: It is engineered for drilling into concrete, masonry, and natural stone.
What is the benefit of the 4-cutter head?: The 4 carbide cutting edges produce round holes and prevent the bit from jamming on rebar.
What is the maximum working drilling depth?: The working length is 450 mm, with an overall tool length of 570 mm.
Can this drill bit be used in an SDS-plus chuck?: No, it has an SDS-max connection and is not directly compatible with SDS-plus machines.
