Which rotary hammers are compatible with this drill bit?

This bit features an SDS-MAX shank and fits all SDS-MAX rotary hammers. It is not compatible with SDS-PLUS tools.

What is the usable drilling depth of this hammer drill bit?

The total length is 920 mm, offering a usable working length of 800 mm.

Which materials can this drill bit be used on?

This bit is designed for drilling into concrete, masonry, and natural stone.

What is the benefit of the 4-cutter head design?

The 4-cutter head creates accurate round holes and reduces snagging or jamming when encountering rebar.

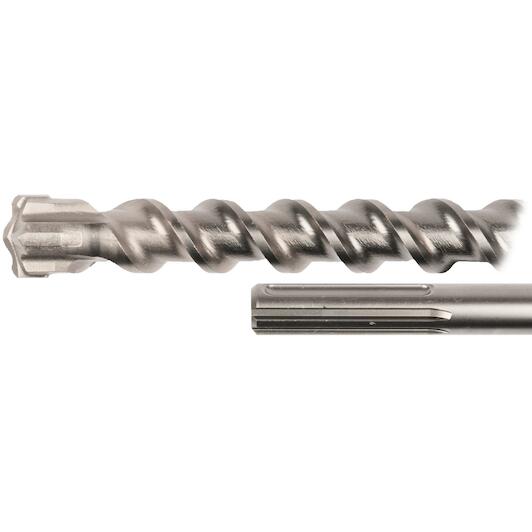

MAKITA P-78178 sds-max 4-force concrete drill bit 40x920mm

Name: MAKITA P-78178 sds-max 4-force concrete drill bit 40x920mm
Brand: MAKITA
SKU: 02628020
Price: 197.8 EUR
Availability: PreOrder

Supplier number: MAKITA P-78178 | EAN 0088381708920

Recommended Retail Price €290.30

197.80 tax incl.

€163.47 excl. VAT (incl. all environmental contributions)

On order: delivered from 09/10/2026

Ordered before 20:00 - delivered as of 09/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Heavy-duty masonry drilling with Makita reliability

Practical benefits

Accurate drilling without jamming: The dynamic 4-cutter head with centring tip prevents stalling on rebar contact and ensures round holes.
Rapid dust removal: High-volume flute channels clear debris fast so you maintain drilling speed during deep hole applications.
Direct SDS-MAX power transfer: The robust shank ensures complete impact energy transmission into concrete and stone with zero slippage.

In a nutshell

The right choise for

With the Makita P-78178 hammer drill bit, you can drill deep 40 mm diameter holes through solid concrete, masonry, and natural stone with complete control. Offering an 800 mm working length and a 920 mm total length, it enables seamless through-hole drilling for large pipes, utility cables, and ducting across thick foundation walls and floors. The solid carbide 4-cutter head with centring point creates precise, round holes while preventing snagging or jamming when encountering rebar. High-volume flutes quickly evacuate dust throughout heavy-duty drilling, ensuring maximum impact transfer and drilling speed on your sds-max rotary hammer.

Product information FAQ

€197.80

tax incl.

Key features according to our expert

Diameter: 40 mm
Drill bit type: Hammer drill bit
Overall length: 920 mm
Shank type: SDS-max
Material (drill bit): Carbide tip
Number of cutting edges: 4 ea
Cutting length: 800 mm
Product Range: Makita SDS-Max

Product description

TCT drill bit 40 x 800 / 920 mm, SDS-MAX

High-quality and durable SDS-MAX Zentro drill bit with a tip with 4 cutting edges for drilling in concrete and natural stone. Excellent grit removal thanks to shortened spiral grooves. This bit has an overall length of 920 mm, a working length of 800 mm and a diameter of 40 mm.

The Zentro drill bit with SDS-MAX connection is specially made for drilling in concrete and stone. The sharp and centred tips allow precise holes to be made. Compact, high-volume spiral grooves remove dust very efficiently during drilling. When drilling in natural stone, it is recommended to use cutting oil or equivalent to cool the blade. This significantly extends the life of the blade. Natural stone is a very hard material and if deep holes are drilled continuously, the blade gets hot and may eventually break.

All Features

Diameter: 40 mm
Drill bit type: Hammer drill bit
Overall length: 920 mm
Shank type: SDS-max
Material (drill bit): Carbide tip
Number of cutting edges: 4 ea
Cutting length: 800 mm
Internal diameter: 40.0 mm
Working length: 800 mm
Length: 920 mm
Product range: Makita SDS-Max

Brand MAKITA
02628020
EAN 0088381708920
Supplier number MAKITA P-78178

Frequently asked questions about this product

Answered by specialists

Which rotary hammers are compatible with this drill bit?: This bit features an SDS-MAX shank and fits all SDS-MAX rotary hammers. It is not compatible with SDS-PLUS tools.
What is the usable drilling depth of this hammer drill bit?: The total length is 920 mm, offering a usable working length of 800 mm.
Which materials can this drill bit be used on?: This bit is designed for drilling into concrete, masonry, and natural stone.
What is the benefit of the 4-cutter head design?: The 4-cutter head creates accurate round holes and reduces snagging or jamming when encountering rebar.
