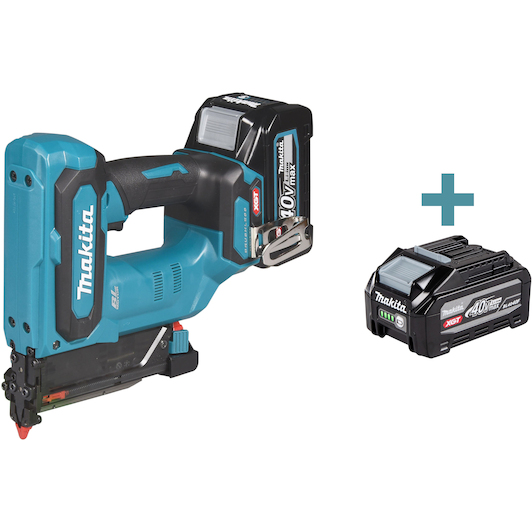

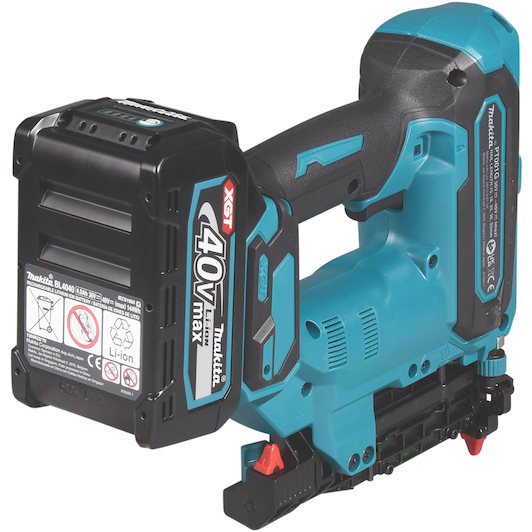

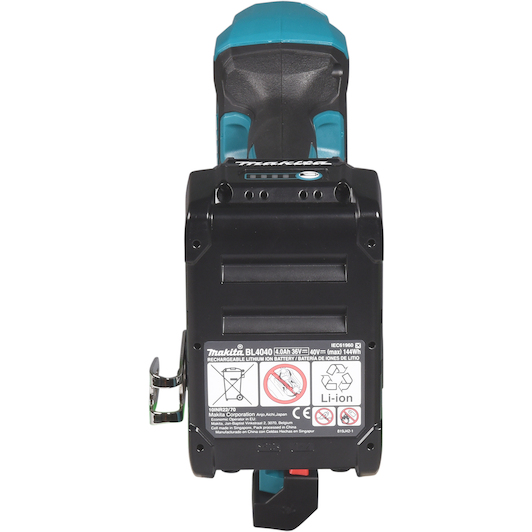

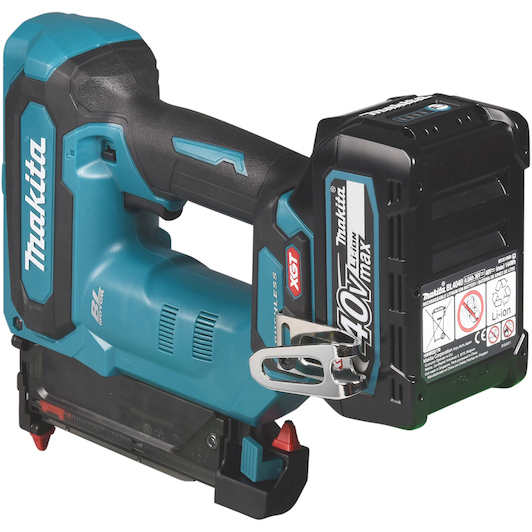

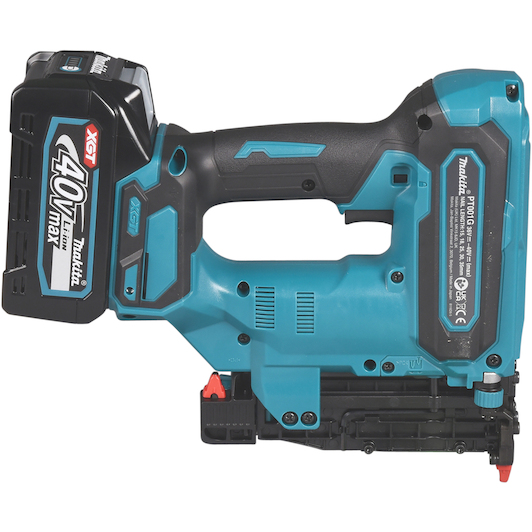

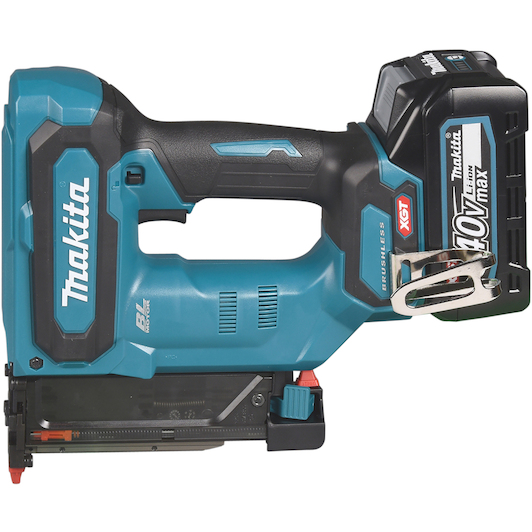

MAKITA PT001GD101 40Vmax XGT battery pintacker 23Ga 35mm n case (1x 2.5Ah battery + charger)

MAKITA
Supplier number: MAKITA PT001GD101 | EAN 0088381761338

Variant

MAKITA PT001GZ01 40Vmax XGT battery-pinacker 23Ga 35mm n case (without battery and charger) MAKITA PT001GZ01 40Vmax XGT battery-pinacker 23Ga 35mm n case (without battery and charger) MAKITA PT001GD101 40Vmax XGT battery pintacker 23Ga 35mm n case (1x 2.5Ah battery + charger) MAKITA PT001GD101 40Vmax XGT battery pintacker 23Ga 35mm n case (1x 2.5Ah battery + charger)
Recommended Retail Price €824.58
635.72 tax incl.
€525.39 excl. VAT (incl. all environmental contributions)
On order: delivered from 16/10/2026

✆ Talk to a specialist

Invisible fastening with high precision

Practical benefits
  • Clean and discrete finish: You drive 23GA pin nails from 15 to 35 mm to achieve seamless joints in fine carpentry.
  • Cordless Makita performance: Powered by the 40V XGT battery platform, it delivers consistent driving force without the hassle of hoses.
  • Low recoil operation: The refined mechanism absorbs reaction force so you protect delicate workpieces and finish trims from damage.

In a nutshell

The right choise for

With the Makita PT001GD101 cordless pin nailer, you fasten decorative moldings, glazing beads, and baseboards with a virtually invisible finish. Using ultra-fine 23GA headless pins from 15 to 35 mm with a 0.6 mm diameter, you prevent delicate wood from splitting and eliminate the need for filling and sanding nail holes. The powerful 40V Max xgt battery platform ensures consistent driving power in hardwoods, replacing bulky compressors and air hoses on the job site. Its refined firing mechanism noticeably reduces recoil to protect fine workpieces from damage. The straight magazine holds up to 120 pin nails. This set includes a 2.5 Ah BL4025 battery, a DC40RA fast charger, and a sturdy case.



Product information Accessories FAQ
€635.72
tax incl.

Product information

Key features according to our expert

  • Battery voltage: 40 V
  • Magzine capacity: 120 ea
  • Number of batteries included: 1
  • UN number: UN3481
  • Type of system case: Not applicable
  • Supplied in: Case
  • Magazine angle: 0 °
  • Weight: 1,7 kg
  • Type of nail head: O
  • Capacity (battery): 2,5 Ah
  • Min. nail thickness: 0,6 mm
  • Max. nail length: 35 mm
  • Min. nail length: 15 mm
  • Max. nail thickness: 0,6 mm
  • Product Range: Makita XGT 40V

Scope of delivery

  • 1 x 191B36-3 Battery XGT® 2.5 Ah BL4025
  • 1 x 191E07-8 Battery charger XGT® DC40RA

Product description

Cordless XGT® pin tacker for finishing work.

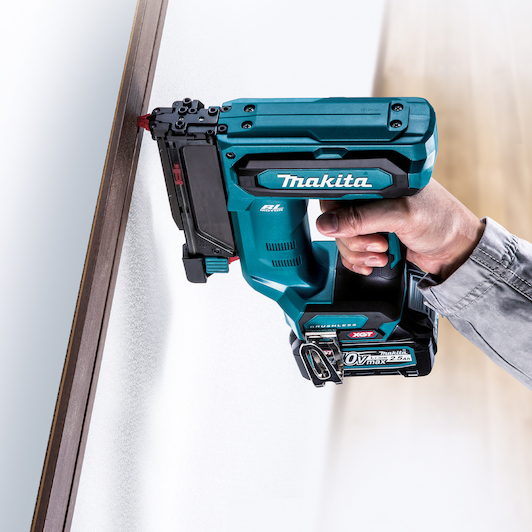

Especially developed for indoor nailing work where a high-quality finish is required, e.g. when installing skirting boards, cornices and the like. It has a low reaction force mechanism that allows nailing with long pins and a high finish quality.

  • Compact and lightweight design
  • Battery protection system automatically switches off power when battery level is low
  • Low reaction force mechanism enables easier nailing with long pins and a high-quality finish

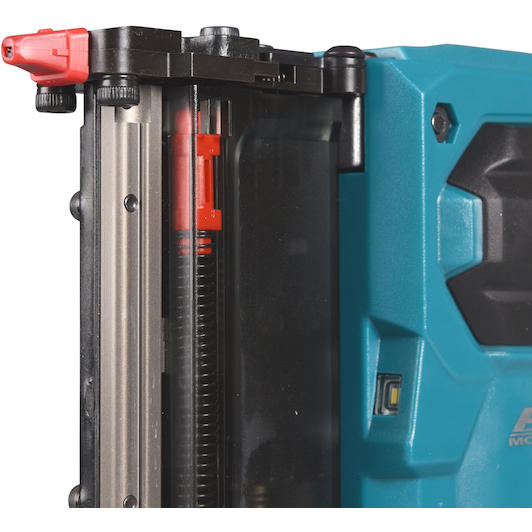

  • Built-in LED lamp with front and backlight function illuminates the work area

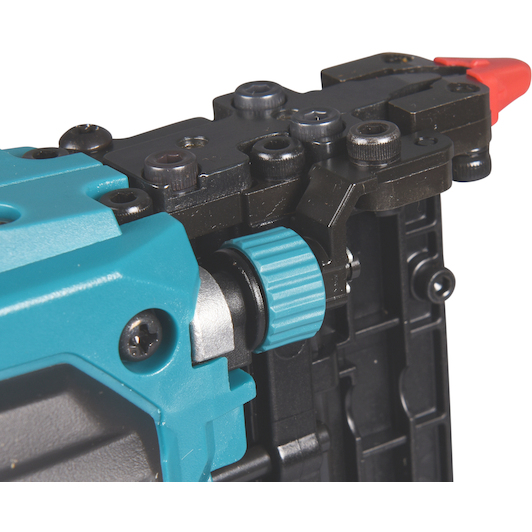

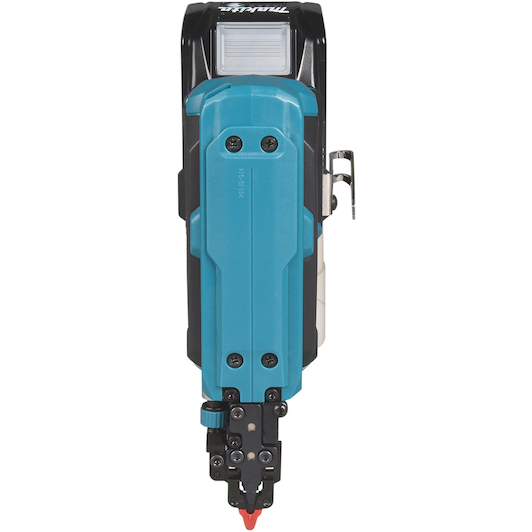

  • Nose tip designed for better visibility

Makita's PT001G is an excellent choice when you need precision and high efficiency. It has a stroke-interrupting mechanism and the nose tip is designed for better visibility. It has an IP56 rated dust- and shower-proof construction. It can handle 5 different lengths of 23 gauge, 0.6 mm nails, 15 mm, 18 mm, 25 mm, 30 mm and 35 mm.The eXtreme Protection Technology (XPT) offers enhanced dust and water resistance for use in harsh conditions The XGT® technology provides digital communication between battery and machine. This makes it easy to adapt the machine to the tasks of the future. XGT® also offers more durability and enough power to make the brad tacker a real option for even the most demanding users.

All Features

Battery voltage
40 V
Magzine capacity
120 ea
Number of batteries included
1
Un number
UN3481
Type of system case
Not applicable
Supplied in
Case
Magazine angle
0 °
Weight
1,7 kg
Type of nail head
O
Capacity (battery)
2,5 Ah
Min. nail thickness
0,6 mm
Max. nail length
35 mm
Min. nail length
15 mm
Max. nail thickness
0,6 mm
Depth adjustment
1
Capacity of fastener magazine
120
Xgt voltage
1
Nail length
15 - 35 mm
Noise uncertainty (k-factor)
3 dB(A)
Brushless motor
1
Weight with battery
2.4 - 3.0 kg
Product range
Makita XGT 40V
Fastener size
23 Go
Nominal battery voltage
40 V
Diameter nails
0.6 mm
Vibration uncertainty (k-factor)
1.5 m/s²
Dimensions (l x w x h)
271 x 86 x 232 mm
Charger angle
0 º

Accessories

Frequently asked questions about this product

Answered by specialists
Which nails are compatible with this pin nailer?
This nailer uses 23Ga headless pins (0.6 mm diameter) in lengths from 15 mm to 35 mm.
What applications is the Makita PT001GD101 designed for?
It is designed for fine interior finishing, such as fastening baseboards, trim moldings, and decorative panels with minimal visible marks.
Does this tool work with 18V LXT batteries?
No, this pin nailer is only compatible with the Makita 40V Max XGT battery platform.
What is included with the PT001GD101 set?
You receive the pin nailer, one 2.5 Ah BL4025 XGT battery, a DC40RA fast charger, and a carrying case.
What is the magazine capacity of the PT001GD101?
The straight magazine holds up to 120 pin nails (23Ga / 0.6 mm).
