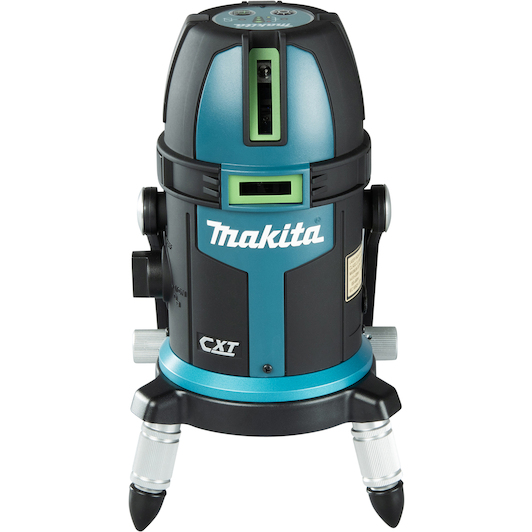

MAKITA SK209GDZ 12Vmax CXT cross line laser green (1H + 2V + 1 point plumb line)

Name: MAKITA SK209GDZ 12Vmax CXT cross line laser green (1H + 2V + 1 point plumb line)
Brand: MAKITA
SKU: 02824673
Price: 998.88 EUR
Availability: PreOrder

Supplier number: MAKITA SK209GDZ | EAN 0088381832540

Recommended Retail Price €1,185.04

998.88 tax incl.

€825.52 excl. VAT (incl. all environmental contributions)

On order: delivered from 09/10/2026

Ordered before 20:00 - delivered as of 09/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

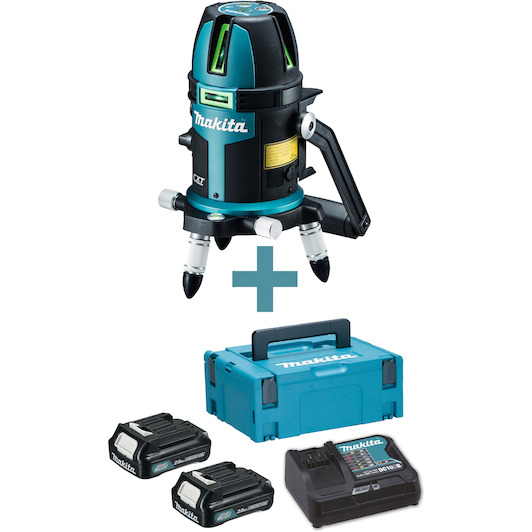

With this Makita deal, you receive the following item free of charge: 197658-5: Powerpack CXT BL1021B - Charger and two 2.0 Ah batteries in a Makpac case.

How does it work?

Order this Makita deal and receive the item mentioned above free of charge with your purchase.
The free item is delivered directly with your order. No additional registration is required.
The promotion is valid until 31.03.2027 or while stocks last.
Makita deals are recognisable by the promotion label on the product page. Click the label to view all available Makita deals.

Accurate and robust cross-line laser for every job

Practical benefits

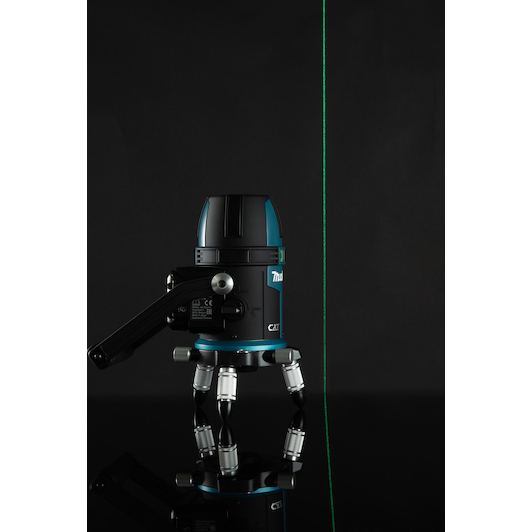

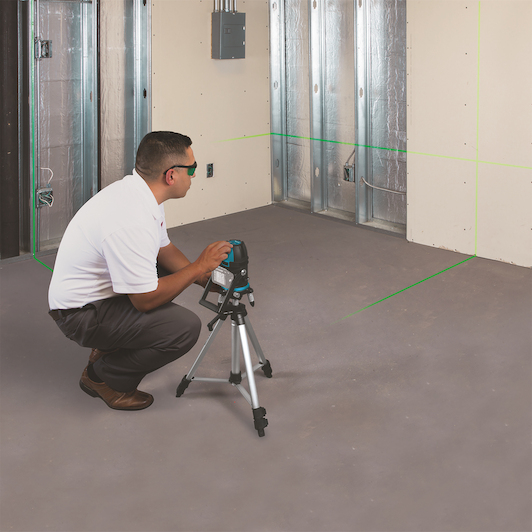

Highly visible green lines: The Makita SK209GDZ projects bright green laser lines, ensuring excellent visibility even in well-lit environments.
Fast and precise alignment: With a self-leveling range of 2° and an accuracy of 0.1 mm/m, the laser achieves stability in 3 seconds for productive work.

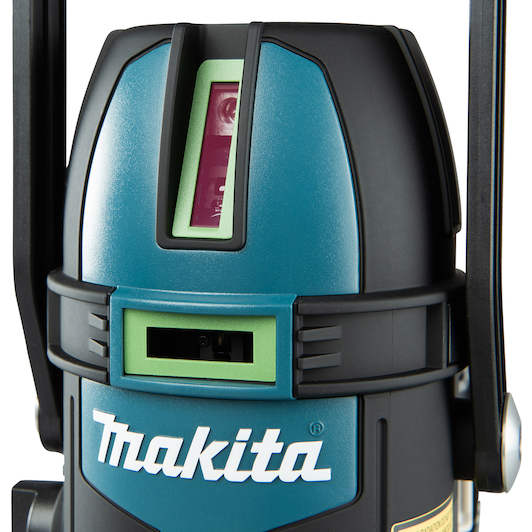

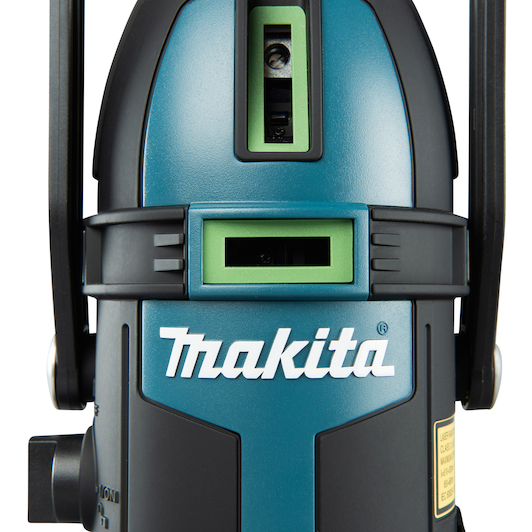

Durable and reliable design: The IP54 rating provides dust and water resistance, while recessed laser windows enhance durability on the job site.

In a nutshell

The right choise for

The Makita SK209GDZ 12VMAX cxt cross-line laser projects bright green lines for optimal visibility, even in well-lit areas. With an accuracy of 0.1 mm/m and a self-leveling range of 2°, you are assured of fast and precise alignment for all your projects. The laser is dust and water resistant with an IP54 rating and features recessed laser windows, which increases durability on the job site. You receive the laser in a case, complete with a carrying strap and laser viewing glasses, so you can get started right away.

Product information Accessories FAQ

€998.88

tax incl.

Key features according to our expert

Laser type: Cross line laser
Max. range: 10 m
With tripod: No
Tripod thread: 5/8"
Projection (laser beams): 1 horizontal, 2 vertical
Self-levelling range: 2,0000 °
Number of points: 1
Weight: 1,3 kg
Type of system case: Not applicable
Supplied in: Case
Protection class IP: IP54
Laser class: Class 2
Accuracy: 0,1 mm/m
Colour (laser beams): Green
Max. range with receiver: 20 m
Product Range: Makita CXT 12V

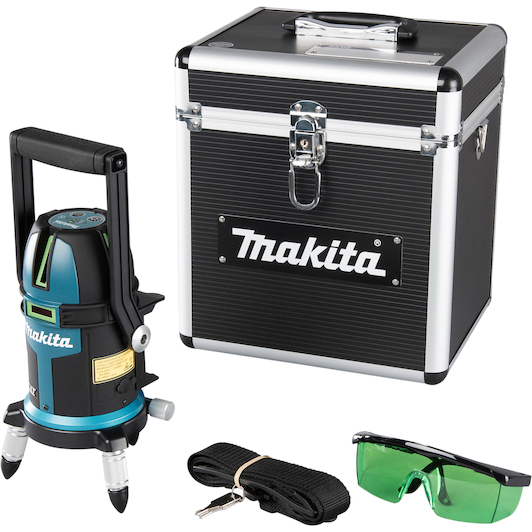

Contents of the package

1 x LE00772796 Green laser safety goggles

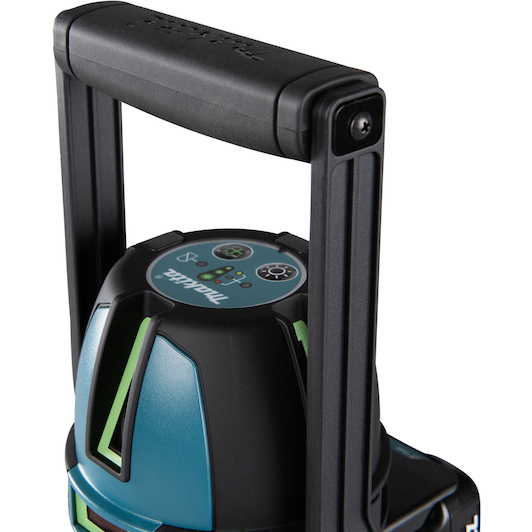

1 x TK00SB0001 Carrying strap for SK209/SK312 laser
1 x TK02100200 Laser line goggles

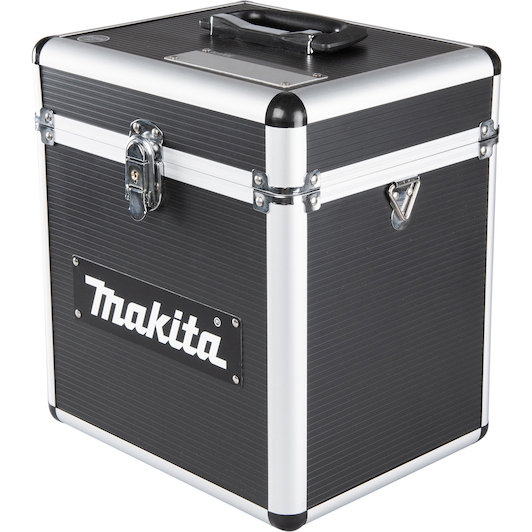

1 x TKAK400MUN Carrying case for laser

Product description

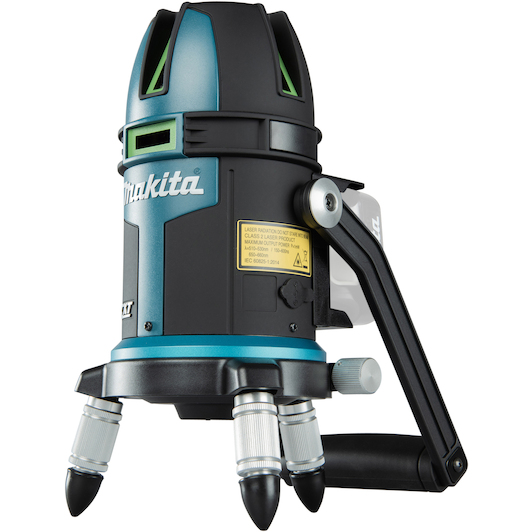

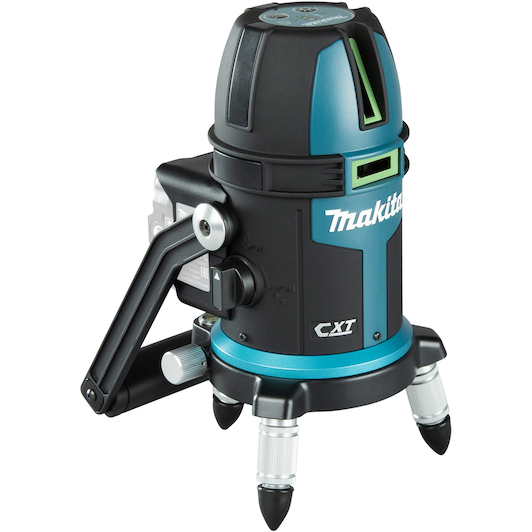

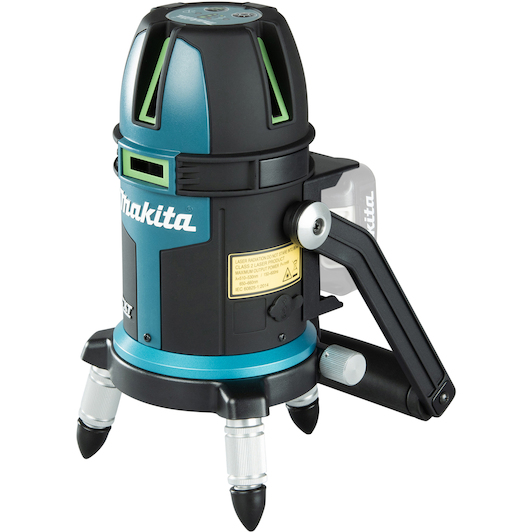

Cordless cross line laser with green laser

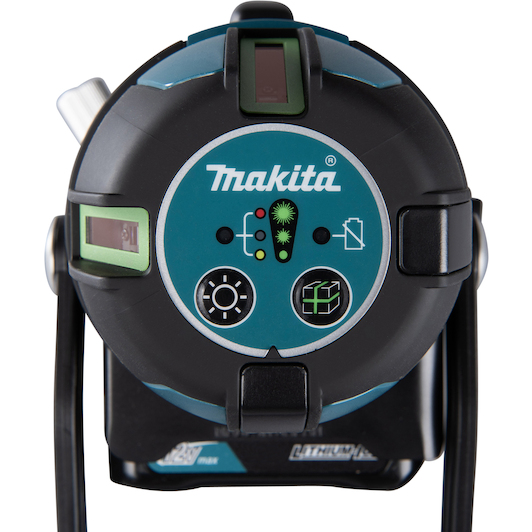

A self-levelling cross-line laser with two green vertical and one horizontal line that can be used separately or together. Visibility up to 10 metres. All functions are easily operated with a single button. The laser is dust- and water-resistant with IP54 rating and the operating time with a 4.0 Ah battery is about 40 hours.

Memory mode function: when the power is switched on, the laser beam will have the same mode as the last time before it was switched off
Battery protection system automatically switches off the power when the battery level is low
Horizontal line and vertical line
Dust and water-resistant with IP54 rating for increased durability

All Features

Laser type: Cross line laser
Max. range: 10 m
With tripod: No
Tripod thread: 5/8"
Projection (laser beams): 1 horizontal, 2 vertical
Self-levelling range: 2,0000 °
Number of points: 1
Weight: 1,3 kg
Type of system case: Not applicable
Supplied in: Case
Protection class ip: IP54
Laser class: Class 2
Accuracy: 0,1 mm/m
Colour (laser beams): Green
Max. range with receiver: 20 m
Battery chemical composition (nicd/nimh/li-ion): Li-ion
Cxt battery: 1
Average accuracy (2 s) of length measurement: ± 1 mm / 10 m
Ip protection class: IP54
12vmax /4.0 ah battery for continuous use: 40 h
12vmax / 2.0 ah battery for continuous use: 20 h
12vmax / 1.5ah battery for continuous operation: 15 h
Weight with battery: 1.5 - 1.6 kg
Nominal battery voltage: 12 V
Levelling range: ±2 º
Dimensions (l x w x h): 122 x 110 x 225 mm
Recording: 5/8"
Operating temperature: -10 - 40 °C
Product range: Makita CXT 12V

Brand MAKITA
02824673
EAN 0088381832540
Supplier number MAKITA SK209GDZ

Accessories

MAKITA 199010-3 USB cable to connect LXT battery via ADP05 (DEAADP05) to...

Recommended Retail Price €17.57

9.81

€8.11 excl. VAT

Delivery time average 9 days.

Frequently asked questions about this product

Answered by specialists

What is the maximum range of the Makita SK209GDZ cross-line laser?: The laser has a maximum range of 10 meters. With a receiver, this range extends up to 20 meters.
What laser lines does the SK209GDZ project?: This model projects one horizontal line, two vertical lines, and one plumb point.
Is a tripod included with the Makita SK209GDZ?: No, a tripod is not included. You can mount the laser on a tripod using its 5/8" tripod thread.
What is the accuracy of this cross-line laser?: The accuracy of the Makita SK209GDZ is 0.1 mm/m.
Are the battery and charger included with the SK209GDZ?: No, the battery and charger are not included. This is a "body" version, compatible with 12Vmax CXT batteries.
