metabo_0114026100

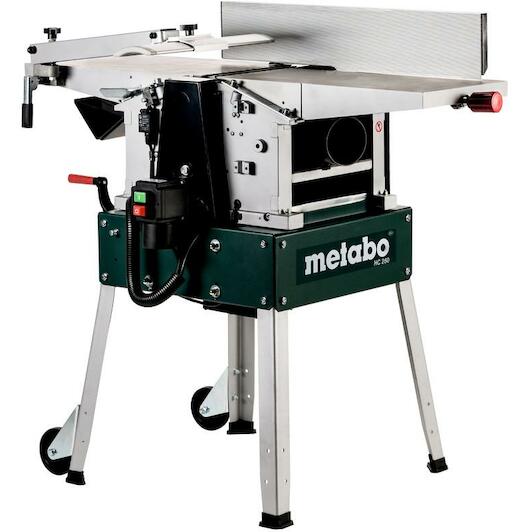

METABO HC 260 C surface and thicknessing machine 2.8 DNB - 114026100

METABO
Supplier number: METABO 114026100 | EAN 4003665436265
Recommended Retail Price €1,729.54
1,417.28 tax incl.
€1,171.30 excl. VAT (incl. all environmental contributions)
On order: delivered from 14/10/2026

✆ Talk to a specialist

Efficient Metabo planer and thicknesser

Practical benefits
  • Fast tool-free conversion: You can convert the machine from jointer to thicknesser quickly without needing additional tools.
  • Powerful and smooth feed: The 2800 W three-phase motor delivers a steady feed rate of 5 m/min for uniform cuts.
  • Precise depth adjustment: You easily set the heavy-duty table using the crank handle for chip removal up to 3 mm.

In a nutshell

The right choise for

With the Metabo hc 260 C planer and thicknesser, you flatten and dimension rough-sawn timber with professional precision. Powered by a strong 2800 w three-phase motor, it provides a smooth feed rate of 5 m/min for consistent, high-quality results. The machine handles workpieces up to 260 mm wide and 160 mm thick, with an adjustable chip removal of up to 3 mm. You can switch between surface planing and thicknessing quickly without using any tools. Delivered complete with a sturdy stand, transport wheels, a tiltable fence, an extraction nozzle, and reversible planer blades, you gain full control and versatility in your workshop.



Product information Accessories FAQ
€1,417.28
tax incl.

Product information

Key features according to our expert

  • Power: 2800 W
  • Max. material thickness: 160 mm
  • Max. chip thickness: 3 mm
  • Feed speed: 5 m/min
  • With stand: Yes
  • Weight: 71 kg
  • Max. plaining width: 260 mm

Scope of delivery

  • Integrated disposable reversible planer blades
  • Short, swivelling jointing fence
  • Chip ejection hood
  • Push stick
  • Extraction Nozzles
  • Transport wheels

Product description

  • Simple conversion from surface planer to bench thicknesser without tools
  • Stable gear for uniform work piece feed
  • Thickness table made of solid, non-abrasive grey cast iron
  • Convenient height adjustment with crank handle
  • Planer blades with double blade for longer service life
  • Jointing fence, swivelling 90°-45°
  • Quiet induction motor, maintenance-free and robust.
  • Restart protection: prevents unintentional start-up after power supply interruption
  • High torque three-phase motor

All Features

Power
2800 W
Max. material thickness
160 mm
Max. chip thickness
3 mm
Feed speed
5 m/min
With stand
Yes
Weight
71 kg
Max. plaining width
260 mm
Flat table l x w
1040 x 280 mm
Number of planing teeth
2
Thickness table l x w
400 x 260 mm
Material of thickness table
Grey cast iron
Passage height/width
160 / 260 mm
Diameter of the chisel axis
63 mm
Dimensions
1110 x 620 x 980 mm
Flat plate material
Cast aluminium
Speed of the chisel axis
6500 rpm
Chip removal surfaces
0 - 3 mm
Feed rate
5 m/min
Power consumption
2800 W
Power output
1900 W
Chip removal from thickness planes
0 - 3 mm

Accessories

View more accessories (8)

Frequently asked questions about this product

Answered by specialists
What power supply does this planer-thicknesser require?
The Metabo HC 260 C in the 2,8 DNB configuration operates on three-phase current (400V) with 2800 W power.
What are the maximum workpiece dimensions for planning?
You can process workpieces with a maximum width of 260 mm and a maximum thickness height of 160 mm.
What is the maximum chip removal per pass?
Chip removal is adjustable from 0 to 3 mm for both surface and thickness planing.
Are tools needed to convert from surface to thickness planing?
No, you can switch between surface planing and thicknessing easily without using tools.
Are the stand and essential accessories included?
Yes, the stand, transport wheels, push stick, extraction nozzle, chip ejection hood, and blades are included.
