metabo_611216000

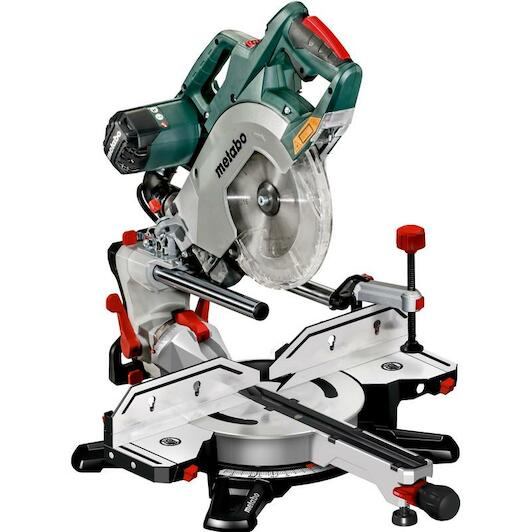

METABO KGSV 72 XACT sliding compound mitre saw 216 mm 1500 W - 611216000

This product has been discontinued.

Successor to this product

Is this mitre saw right for you?

Answer a few questions and see if this mitre saw is a perfect match for you.

Scope of delivery

  • Carbide saw blade (40 teeth)
  • 2 Table length extensions
  • Material clamp
  • Tool for saw blade change
  • Cable winder

Product description

  • Compact traction function for wide workpieces up to 305 mm: no space required behind the saw
  • Maximum flexibility when sawing thanks to rotating table and inclinable saw head on both sides
  • Double line laser for precise display of the cutting line left and right of the saw blade
  • Speed control for extended range of application, e.g. for cutting of aluminium profiles and plastics
  • Compact light-weight with ergonomically designed carry handles, ideal for mobile use
  • Effective dust extraction via integrated dust scoop
  • Fast and precise setting of common angles using stop points
  • Bright LED work light for illumination of the cutting line (mains powered, no batteries required)
  • Sliding high rear fence profiles for safe sawing
  • Depth guide for easy creation of grooves
  • Easy saw blade change by means of spindle lock: No dismantling of the pendulum guard required
Key features according to our expert
  • Power: 1500 W
  • Cut line indicator: Double laser
  • Saw blade diameter: 216 mm
  • Adapter required for 35 mm vacuum cleaner hose: No
  • Dust extraction position: Behind the saw blade
  • Max. height (workpiece): 72 mm
  • Cable length: 3 m
  • Max. width (workpiece): 305 mm
  • Tiltable left/right: Yes
  • Engine brake: No
  • Slide function: Yes
  • Bore size: 30 mm
  • Weight: 16,1 kg
  • With stand: No
Specifications / All features
Power
1500 W
Cut line indicator
Double laser
Saw blade diameter
216 mm
Adapter required for 35 mm vacuum cleaner hose
No
Dust extraction position
Behind the saw blade
Max. height (workpiece)
72 mm
Cable length
3 m
Max. width (workpiece)
305 mm
Tiltable left/right
Yes
Engine brake
No
Slide function
Yes
Bore size
30 mm
Weight
16,1 kg
With stand
No
Dimensions
660 x 540 x 415 mm
Cutting capacity 45°/45°
215 x 42 mm
Saw blade inclination left/right
47 / 47 °
Zero load speed
2200 - 6300 rpm
Zero load speeds
2200 - 6300 rpm
Cutting capacity 90°/90°
305 x 72 mm
Max. cutting depth 90°/45°
72 / 42 mm
Cutting speed
25 - 70 m/s
Saw blade
216 mm
Power consumption s1 100%
1500 W
Left/right turntable adjustment
50 / 50 °
Max. cutting width 90°/45°
305 / 215 mm
Power consumption s6 20%
1800 W
