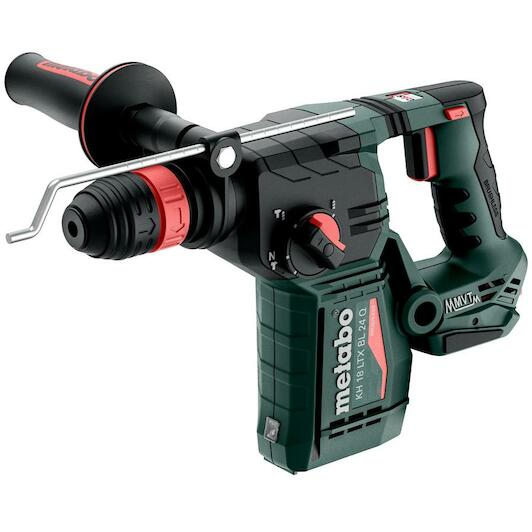

METABO KH 18 LTX 24 BL Quick cordless combi hammer in cardboard box (without battery and charger) - 601714850

METABO
Supplier number: METABO 601714850 | EAN 4061792218543
Recommended Retail Price €386.44
298.48 tax incl.
€246.68 excl. VAT (incl. all environmental contributions)
On order: delivered from 17/10/2026

✆ Talk to a specialist

Metabo Free 18V Battery Promotion 2026

Receive a FREE Metabo 18V 5.2 Ah battery worth €129.59 when you purchase a participating Metabo Body Tool!

How does it work?

  • Purchase a participating Metabo tool with a minimum value of €199 incl. VAT. You can recognise participating products by the promotional label on the product page. Click the promotional label to view all participating products.
  • The free battery is automatically added to your order and delivered together with your order. No registration is required.
  • The promotion is valid from 1 September 2026 until 30 November 2026.

Powerful and versatile drilling with Metabo

Practical benefits
  • Quick tool-free chuck change: You quickly swap between the SDS-plus chuck and the keyless chuck for cylindrical drill bits without extra tools.
  • High impact drilling power: Delivering 2.2 J of impact energy, you easily drill holes up to 24 mm in diameter into solid concrete.
  • Reduced vibration during work: You work with less fatigue and better control thanks to the integrated anti-vibration system and ergonomic grip handle.

In a nutshell

The right choise for

With the Metabo kh 18 ltx 24 bl Quick, you drill and chisel powerfully into concrete, stone, and masonry. Delivering 2.2 j of impact energy and 4750 blows per minute, you easily drill holes up to 24 mm in concrete. You switch quickly between the SDS-plus chuck and the supplied keyless chuck for wood up to 30 mm and steel up to 13 mm. Three operating modes – hammer drilling, drilling without impact, and chiselling – handle diverse jobs. The integrated anti-vibration system and non-slip rubber grip reduce fatigue during use. This 18V bare unit comes in a cardboard box with a depth guide, without battery and charger.



Product information Accessories FAQ
€298.48
tax incl.

Product information

Key features according to our expert

  • Battery voltage: 18 V
  • Max. impact rate: 4750 /min.
  • Number of batteries included: 0
  • UN number: Not applicable
  • Weight: 3 kg
  • Type of system case: Not applicable
  • Supplied in: Cardboard box
  • Vibration value (drilling in concrete): 13,4 m/s²
  • Vibration value (chiselling in concrete): 9,1 m/s²
  • Anti-vibration system: Yes
  • Min. impact rate: 0 /min.
  • Max. drilling diameter (steel): 13 mm
  • Max. drilling diameter (wood): 30 mm
  • Max. drilling diameter (concrete): 24 mm
  • Impact energy: 2,2 J
  • With keyless chuck: Yes
  • Tool holder type: SDS-plus
  • With dust extraction system: No
  • Product Range: Metabo 18V

Scope of delivery

  • Hammer chuck for tools with SDS-plus shank end
  • Keyless chuck for tools with cylindrical shank
  • Rubber-coated side handle
  • Drilling depth guide
  • Without battery pack, without charger

Product description

  • Extremely light and compact cordless hammer with integrated extraction interface
  • Maximum drill performance, efficiency and service life thanks to brushless technology and high-performance hammer action
  • Dust-free drilling with compact dust extraction ISA 24 (accessory)
  • Combination hammer with 3 functions: hammer drilling, drilling and chiselling
  • Metabo VibraTech (MVT): integrated damping system to reduce vibrations in order to protect the user's health
  • Metabo Quick: quick change between SDS Plus hammer chuck and keyless chuck for many different applications
  • Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load
  • Electronic soft start for precise spot-drilling
  • Double safety when the drill bit jams: No kick-back thanks to the mechanic decoupling plus ultra-fast sensor-controlled shutdown
  • LED work light for optimum view of the drilling site
  • Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-systems.com

All Features

Battery voltage
18 V
Max. impact rate
4750 /min.
Number of batteries included
0
Un number
Not applicable
Weight
3 kg
Type of system case
Not applicable
Supplied in
Cardboard box
Vibration value (drilling in concrete)
13,4 m/s²
Vibration value (chiselling in concrete)
9,1 m/s²
Anti-vibration system
Yes
Min. impact rate
0 /min.
Max. drilling diameter (steel)
13 mm
Max. drilling diameter (wood)
30 mm
Max. drilling diameter (concrete)
24 mm
Impact energy
2,2 J
With keyless chuck
Yes
Tool holder type
SDS-plus
With dust extraction system
No
Drilling ø masonry with drilling crowns
82 mm
Max. individual stroke energy (epta)
2.2 J
Product range
Metabo 18V
Drilling ø soft wood
30 mm
Drilling ø steel
13 mm
Drilling ø concrete with hammer drills
24 mm

Accessories

View more accessories (20)

Frequently asked questions about this product

Answered by specialists
Which chucks are included with this combi hammer?
You receive both an SDS-plus hammer chuck and a keyless chuck for cylindrical shank drill bits.
Which batteries are compatible with this tool?
This 18V tool is fully compatible with all 18V batteries and chargers from Metabo and the CAS platform.
What is the maximum drilling capacity in concrete?
With hammer drill bits, the maximum drilling diameter in concrete is 24 mm.
Are a battery and charger included in this package?
No, this bare unit is supplied in a cardboard box without a battery and charger.
What operating modes does this machine offer?
This combi hammer offers 3 modes: hammer drilling, drilling without impact, and chiselling.
