Scope of delivery
- Spacer Rings
- 2 Diamond cutting discs
- 20 mm Diamond Cutting Disc 2 UP
- Flange nut
- Face pin wrench
- Chase chisel
- Plastic carry case

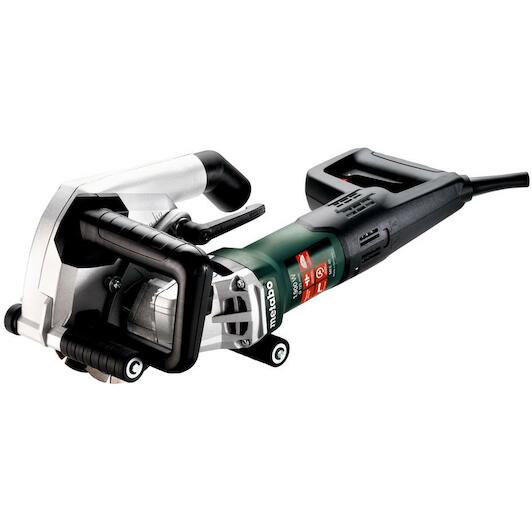

Product description

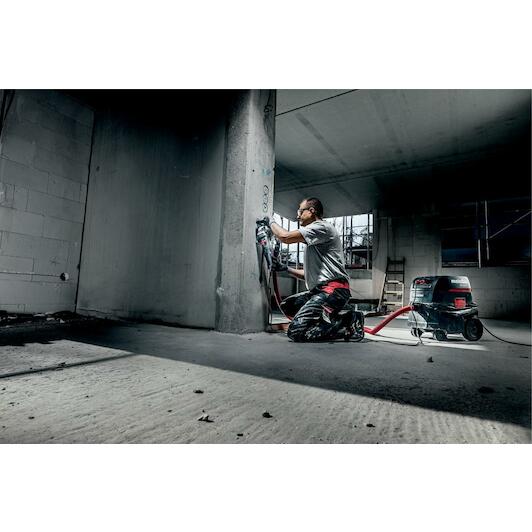

- Ideal for electric installations to lay cables and pipework under plaster with cutting depths up to 40 mm
- Maximum work progress by means of powerful motor, constant speed and two-speed high-performance gear
- Robust aluminium die-cast hood with rubber rollers and optimal handle position for comfortable guidance of the machine
- Push cut for optimal view of the marking line
- Channel width and cutting depth can be set
- Metabo Marathon motor with patented dust protection for long service life
- Tacho-Constamatic (TC)-Full Wave Electronics: fast work progress by means of constant speed under load
- Electronic soft start and restart protection for safe working
- LED signal informs about overload or active restart protection
- Clean, low-dust working by means of connecting a Metabo all-purpose vacuum cleaner (certified with ASR 35 M ACP)
- Suitable for slitting grooves up to a width of 30 mm without centre in one workstep (with special accessories)
- Also suitable for cutting with only one diamond cutting disc
- Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the disc stop unexpectedly
Key features according to our expert
-
Power: 1900 W
-
Number of grooves: 1
-
Max. grinding depth: 40 mm
-
Slot width: 9 - 35 mm
-
Supplied in: Case
-
Type of system case: Not applicable
-
(Disc) diameter: 125 mm
Specifications / All features
- Power
- 1900 W
- Number of grooves
- 1
- Max. grinding depth
- 40 mm
- Slot width
- 9 - 35 mm
- Supplied in
- Case
- Type of system case
- Not applicable
- (disc) diameter
- 125 mm
- Speed under load
- 4200 rpm
- Speeds at nominal load
- 4200 rpm
- Zero load speed
- 5000 rpm
- Cable length
- 4 m
- Possible groove widths
- 9 / 15.5 / 22 / 28.5 / 35 mm
- Weight (without power cord)
- 4.6 kg
- Zero load speeds
- 5000 rpm
- Torque
- 6 Nm
- Power output
- 1120 W
- Number of revolutions
- 4200 rpm
- Adjustable cutting depth
- 10 - 40 mm
- Power consumption
- 1900 W
- Cut-off wheels-ø
- 125 mm
