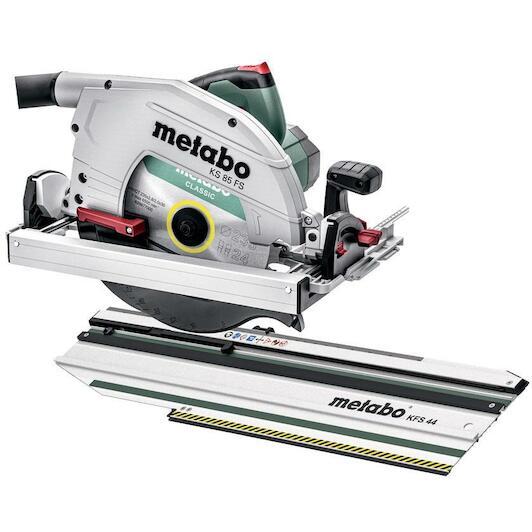

METABO SET KS 85 FS circular saw 235mm 2000W in box + guide rail KFS 44 - 691197000

METABO
Supplier number: METABO 691197000 | EAN 4061792200470
Recommended Retail Price €628.44
472.68 tax incl.
€390.64 excl. VAT (incl. all environmental contributions)
On order: delivered from 17/10/2026
set

✆ Talk to a specialist

Precise heavy cuts with the Metabo KS 85 FS

Practical benefits
  • Deep cuts up to 85MM: You cut through thick timber and heavy workpieces effortlessly with the powerful 2000W motor and 235MM blade.

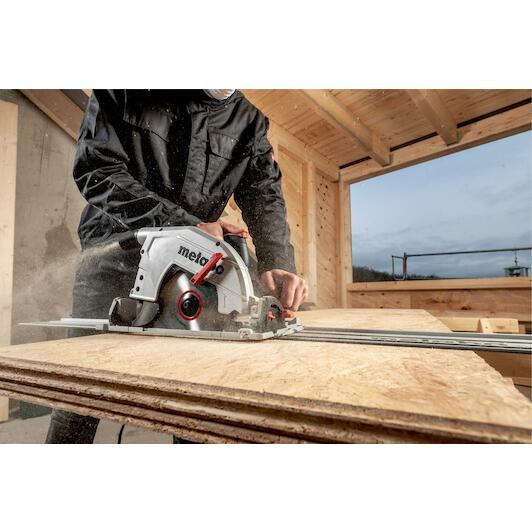

  • Direct crosscut rail connection: Connect quickly to the included KFS 44 guide rail to make accurate, repeatable angle cuts anywhere on site.
  • Stable and safe operation: The integrated riving knife and sturdy aluminium base plate keep your cutting line controlled and prevent blade binding.

In a nutshell

The right choise for

With the Metabo ks 85 fs circular saw set, you effortlessly power through thick dimensional lumber and heavy beams in a single pass. Driven by a robust 2000W motor and a 235 mm blade, it delivers an impressive cutting depth of up to 85 mm at 90° and 65 mm at 45°. When coupled with the included kfs 44 cross-cutting rail, you can make precise, repeatable angle and straight cuts directly on the jobsite. The integrated riving knife and sturdy aluminium guide plate ensure complete stability and safety during heavy-duty cutting. This set comes in a cardboard box complete with a 24-tooth carbide blade, aluminium parallel guide, and hex wrench.



Product information Accessories FAQ
€472.68
tax incl.

Product information

Key features according to our expert

  • Saw blade diameter: 235 mm
  • Riving knife: Yes
  • Power: 2000 W
  • Type of system case: Not applicable
  • Supplied in: Cardboard box
  • Weight: 8,4 kg
  • Plunge saw: No
  • Max. cutting depth at 45°: 65 mm
  • Max. cutting depth at 90°: 85 mm
  • Max. cutting depth: 85 mm

Scope of delivery

  • Cross cutting rail KFS 44
  • Carbide circular saw blade (24 teeth)
  • Aluminium parallel guide
  • Hexagonal wrench

Product description

  • Robust circular saw, can be used directly on guide rails from Mafell, Bosch, Festool, Makita, HiKOKI, Hilti and other manufacturers
  • Light guide plate made from die cast aluminium
  • Fast, precise cross cuts thanks to easy coupling with a Metabo KFS cross cutting rail
  • Grip area with non-slip soft-grip surface
  • Precise, double-track aluminium parallel guide makes cutting to size easier
  • Clearly visible cutting indicator for precise sawing after initial cut
  • 0° position re-adjustable for highest cutting precision
  • Extraction possibility by means of connecting an all-purpose vacuum cleaner
  • Sawdust ejection nozzle for any working position can be rotated and locked individually
  • Auto-stop carbon brushes to protect the motor
  • Precision guide rail available as accessory

All Features

Saw blade diameter
235 mm
Riving knife
Yes
Power
2000 W
Type of system case
Not applicable
Supplied in
Cardboard box
Weight
8,4 kg
Plunge saw
No
Max. cutting depth at 45°
65 mm
Max. cutting depth at 90°
85 mm
Max. cutting depth
85 mm
Max. cutting speed
55 m/s
Saw blade ø x drill hole
235 x 30 mm
Power consumption
2000 W
Power output
1100 W

Accessories

View more accessories (14)

Frequently asked questions about this product

Answered by specialists
What is the maximum cutting depth of this circular saw?
Without a rail, it cuts up to 85 mm at 90° and 65 mm at 45°. On a guide rail, the maximum cutting depth is 80 mm at 90°.
Which saw blades fit the KS 85 FS?
The saw requires blades with a 235 mm outer diameter and a 30 mm bore.
Is the KS 85 FS a plunge-cut saw?
No, this is a standard handheld circular saw equipped with a riving knife, not a plunge saw.
What is included in this set?
You receive the KS 85 FS saw in a cardboard box, the KFS 44 cross-cutting rail, a 24-tooth blade, a parallel guide, and a hex wrench.
Can the KS 85 FS be used on guide rails from other brands?
Yes, the guide plate fits directly onto rails from Metabo, Festool, Bosch, Makita, and Mafell.
