Scope of delivery
- Carbide saw blade with alternately bevel-ground tips (24 teeth)
- Wheel set incl. handles
- Universal guide
- Table extension (550 x 800 mm)
- Chip and Dust Extraction Unit
- Push stick
Product description
- Restart protection: prevents unintentional start-up after power supply interruption
- Universal table saw with basic equipment

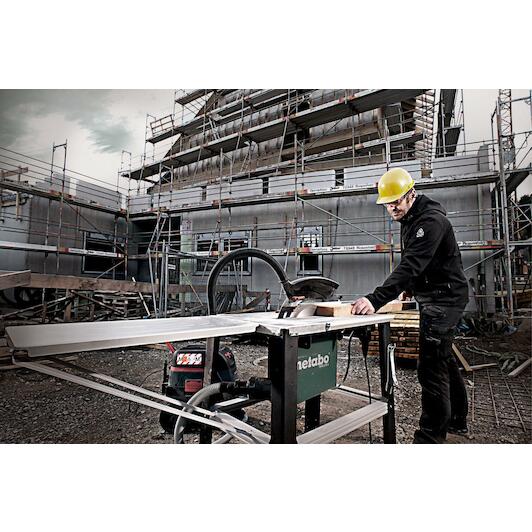

- Ideal for sawing squared timber, boards, panels and wood-like materials in the workshop and at construction sites
- Quiet induction motor with motor brake and overload protection - maintenance-free and robust.
- Universal guide with magnetic guide for precise straight cuts and mitre cuts
- Freely height-adjustable saw blade
- Comfortable setting of the saw blade inclination from the front
- Sturdy, powder-coated sheet steel design and galvanised table-top
- Foldable table length extension
- Frame and motor pre-mounted
Key features according to our expert
-
Power: 2000 W
-
Constant speed control: No
-
Weight: 62 kg
-
Saw blade diameter: 315 mm
-
Max. cutting capacity (left): 220 mm
-
Max. cutting capacity (right): 290 mm
-
Adjustment (rip fence): Clamping lever on guide rail
-
Number of spanners (blade change): 2
-
With spindle lock: No
-
Adjustable riving knife: No
-
Variable speed: No
-
Extensions included: Table extension
-
Engine brake: No
-
Max. no-load speed: 2980 rpm
-
Inrush current limiter: No
-
Max. cutting depth at 90°: 85 mm
-
Max. cutting depth at 45°: 60 mm
-
Max. cutting depth: 85 mm
-
With stand: Yes
-
Voltage: 230 V
-
Dust extraction position: None
-
Slide function: No
Specifications / All features
- Power
- 2000 W
- Constant speed control
- No
- Weight
- 62 kg
- Saw blade diameter
- 315 mm
- Max. cutting capacity (left)
- 220 mm
- Max. cutting capacity (right)
- 290 mm
- Adjustment (rip fence)
- Clamping lever on guide rail
- Number of spanners (blade change)
- 2
- With spindle lock
- No
- Adjustable riving knife
- No
- Variable speed
- No
- Extensions included
- Table extension
- Engine brake
- No
- Max. no-load speed
- 2980 rpm
- Inrush current limiter
- No
- Max. cutting depth at 90°
- 85 mm
- Max. cutting depth at 45°
- 60 mm
- Max. cutting depth
- 85 mm
- With stand
- Yes
- Voltage
- 230 V
- Dust extraction position
- None
- Slide function
- No
- Cutting speed
- 50 m/s
- Max. bearing surface
- 800 x 550 mm
- Cutting height
- 0 - 85 mm
- Saw blade tilt range
- 0 - 45 °
- Zero load speed
- 2980 rpm
- Max. cutting height 90°/45°
- 85 / 60 mm
- Zero load speeds
- 2980 rpm
- Dimensions
- 1650 x 650 x 1000 mm
- Saw blade
- 315 x 30 mm
- Working height
- 850 mm
- Max. cutting width on parallel guide
- 290 mm
- Power consumption
- 2000 W
- Max. material width on angle guide
- 220 mm
