Which drill bit sizes are included in this set?

The set includes 4 diamond drill bits with diameters of 6 mm, 8 mm, 10 mm, and 14 mm.

Which power tool is compatible with these drill bits?

They feature an M14 thread designed to screw directly onto standard angle grinders.

Is water cooling required when drilling?

No, these diamond drill bits are designed for dry drilling without water cooling.

Which materials can you drill with this set?

They are suitable for hard materials such as porcelain, ceramic tiles, cast iron, and fibreglass.

How do you remove waste material from the drill bit?

The drill bits feature extraction slots to push out the core plugs quickly and easily.

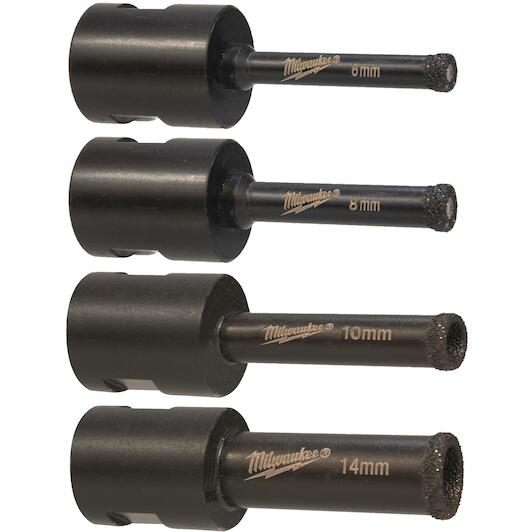

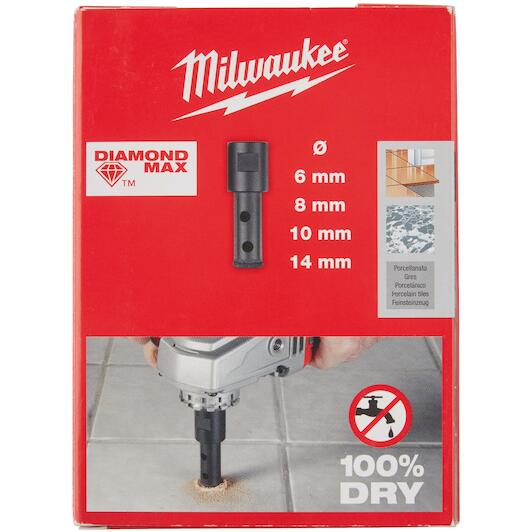

MILWAUKEE 4932471863 DIAMOND PLUS diamond drill bit set 6-8-10-14 mm 4-piece

Name: MILWAUKEE 4932471863 DIAMOND PLUS diamond drill bit set 6-8-10-14 mm 4-piece
Brand: MILWAUKEE
SKU: 03049006
Price: 77.2 EUR
Availability: InStock

Supplier number: MILWAUKEE 4932471863 | EAN 4058546297626

Recommended Retail Price €154.58

77.20 tax incl.

€63.80 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 1 products in stock.

set

Ordered before 20:00 - delivered tomorrow 03/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

How does it work?

Buy Milwaukee products with a total order value of at least €250 excl. VAT.
For a total order value of €250 excl. VAT up to but excluding €500 excl. VAT, you receive a FREE Milwaukee 12-piece Tri-Lobe screwdriver set (4932472003) worth €55.90.
For a total order value of €500 excl. VAT up to but excluding €750 excl. VAT, you receive a FREE Milwaukee M18 125 mm Random Orbital Sander cordless random orbital sander (4933464228) worth €168.90.
For a total order value of €750 excl. VAT or more, you receive a FREE Milwaukee M18 FUEL 125 mm cordless angle grinder with slide switch and brake worth €357.90.
The free item is automatically added to your order. No registration is required.
This promotion cannot be combined with the ongoing Milwaukee Cashback Promotion on Milwaukee hand tools. An invoice for which you receive a free Buy More, Get More gift therefore cannot also be submitted for the Milwaukee hand tools cashback promotion.
The promotion is valid from 01.10.2026 to 31.10.2026.
Milwaukee Buy More, Get More deals are recognisable by the promotion label on the product page. Click the label to view all available deals.

Clean drilling in hard tiles

Practical benefits

High performance Milwaukee diamond bond: You drill clean and precise holes through tough materials like porcelain, gres, and hard ceramics without surface chipping.
Direct angle grinder mounting: The integrated M14 thread connects directly to your angle grinder for fast and efficient dry drilling without cooling water.
Four practical core diameters: Featuring 6, 8, 10, and 14 mm sizes, you always have the right diameter ready for your fixture installations.

In a nutshell

The right choise for

With the Milwaukee diamond plus diamond tile drill bit set, you can drill clean, precise mounting holes in hard materials such as porcelain, gres, ceramic tiles, cast iron, and fibreglass without surface chipping or cracking. The four drill bits, sized at 6, 8, 10, and 14 mm, fit directly onto your angle grinder via an M14 thread for immediate dry drilling without cooling water. The high-performance diamond bond delivers fast, controlled cutting, while side extraction slots allow quick core removal between holes.

Product information FAQ

€77.20

In stock - tax incl.

Key features according to our expert

Smallest diameter: 6 mm
Largest diameter: 14 mm
Drill set type: Diamond drill bit set
Quantity per set: 4

Supplied as standard

Ø 6, 8, 10, 14 mm

Product description

Diamond Max M14 dry drills and holesaws are designed for drilling holes in extremely hard materials such as porcelain/gres/quarry tiles, cast iron or fibreglass. These bits and holesaws guarantee superior life and fastest cutting even in the hardest of materials. M14 thread to fit directly onto an angle grinder or with relevant adaptors to fit spot polisher and die grinder.
Dry use. No cooling needed.
Clean holes: Drills clean, precise holes without any perimeter scratches.
Superior lifetime and durability due to the high grade diamond bond and the tough alloy body which resists bending under stress.
Easy slug removal due to the multiple access slots.
Sizes available: 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 25mm, 30mm, 32mm, 35mm, 38mm, 40mm, 44mm, 51mm, 54mm, 55mm, 57mm, 60mm, 64mm, 65mm, 68mm, 73mm, 75mm, 76mm, 83mm, 102mm.
Sets available: 3pc, 4pc.
Adaptors available: M9, M16.

All Features

Smallest diameter: 6 mm
Largest diameter: 14 mm
Drill set type: Diamond drill bit set
Quantity per set: 4
Recording: M14
Number: 4
Axle intake: M14
Overall length (mm): 68
Working length (mm): 35

Brand MILWAUKEE
03049006
EAN 4058546297626
Supplier number MILWAUKEE 4932471863

Frequently asked questions about this product

Answered by specialists

Which drill bit sizes are included in this set?: The set includes 4 diamond drill bits with diameters of 6 mm, 8 mm, 10 mm, and 14 mm.
Which power tool is compatible with these drill bits?: They feature an M14 thread designed to screw directly onto standard angle grinders.
Is water cooling required when drilling?: No, these diamond drill bits are designed for dry drilling without water cooling.
Which materials can you drill with this set?: They are suitable for hard materials such as porcelain, ceramic tiles, cast iron, and fibreglass.
How do you remove waste material from the drill bit?: The drill bits feature extraction slots to push out the core plugs quickly and easily.
