Which rotary hammers are compatible with this dust extractor?

It fits Milwaukee SDS-plus rotary hammers and most third-party models with a collar diameter of 41 to 61 mm.

What are the maximum drill bit diameter and length?

It supports drilling diameters up to 30 mm and SDS-plus drill bits up to 210 mm in length.

What type of filter is installed?

It comes equipped with a HEPA H13 filter designed to capture fine dust particles.

What is included in this M12 UDEL-201B kit?

You receive the dust extractor, 1x M12 B2 2.0Ah battery, C12 C charger, side handle, 2 nozzles, and a tool bag.

What is the operating runtime with a 2.0Ah battery?

The included M12 2.0Ah battery provides more than 40 minutes of runtime.

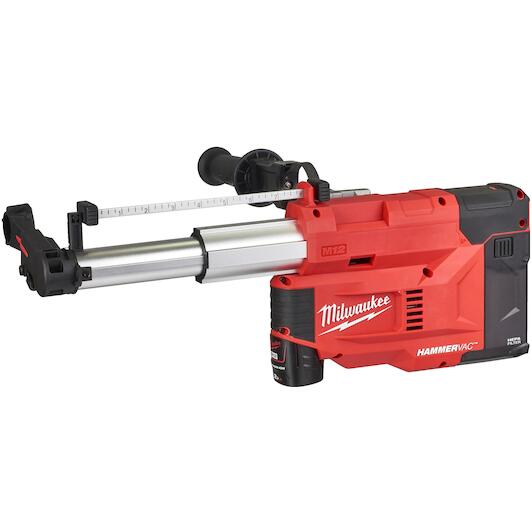

MILWAUKEE M12 UDEL-201B universal dust extractor in transport bag (1x 2.0Ah battery + charger) - 4933471461

Name: MILWAUKEE M12 UDEL-201B universal dust extractor in transport bag (1x 2.0Ah battery + charger) - 4933471461
Brand: MILWAUKEE
SKU: 03167235
Price: 359.3 EUR
Availability: PreOrder

Supplier number: MILWAUKEE 4933471461 | EAN 4058546290894

Variant

This product has been discontinued.

✆ Talk to a specialist

How does it work?

Buy Milwaukee products with a total order value of at least €250 excl. VAT.
For a total order value of €250 excl. VAT up to but excluding €500 excl. VAT, you receive a FREE Milwaukee 12-piece Tri-Lobe screwdriver set (4932472003) worth €55.90.
For a total order value of €500 excl. VAT up to but excluding €750 excl. VAT, you receive a FREE Milwaukee M18 125 mm Random Orbital Sander cordless random orbital sander (4933464228) worth €168.90.
For a total order value of €750 excl. VAT or more, you receive a FREE Milwaukee M18 FUEL 125 mm cordless angle grinder with slide switch and brake (4933498062) worth €357.90.
The free item is automatically added to your order. No registration is required.
This promotion cannot be combined with the ongoing Milwaukee Cashback Promotion on Milwaukee hand tools. An invoice for which you receive a free Buy More, Get More gift therefore cannot also be submitted for the Milwaukee hand tools cashback promotion.
The promotion is valid from 01.10.2026 to 31.10.2026.
Milwaukee Buy More, Get More deals are recognisable by the promotion label on the product page. Click the label to view all available deals.

Dustless drilling with Milwaukee

Practical benefits

Broad universal compatibility: You can attach the unit to most SDS-plus rotary hammers using the adjustable side handle designed for 41 to 61 mm collars.
Efficient HEPA H13 filtration: The integrated HEPA H13 filter captures fine concrete dust effectively to keep your surrounding workspace clean and safe.
Smart automatic extraction: The extractor activates as soon as drilling starts and features a 5-second shut-off delay for a completely clean hole.

In a nutshell

The right choise for

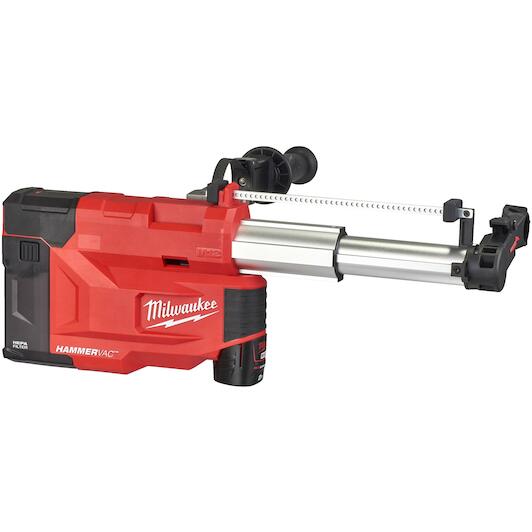

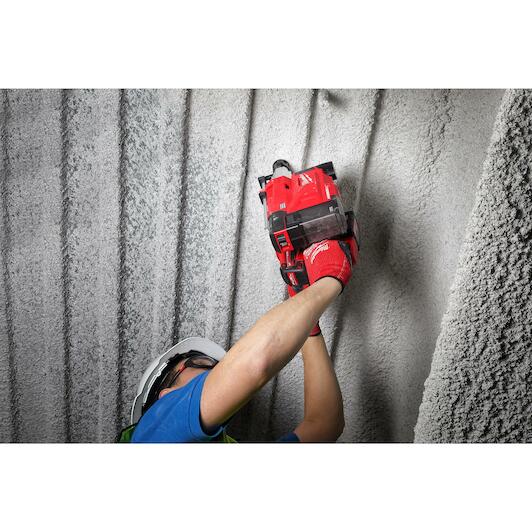

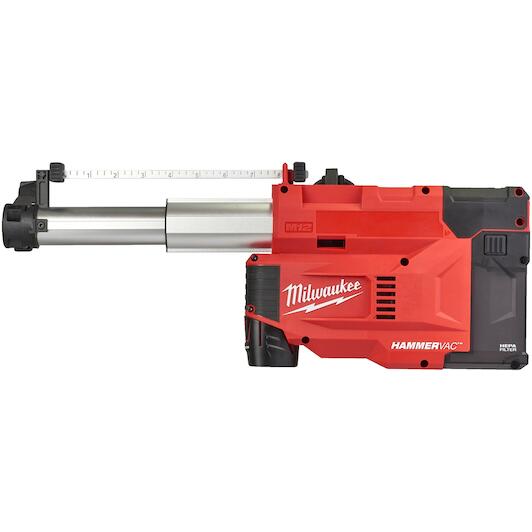

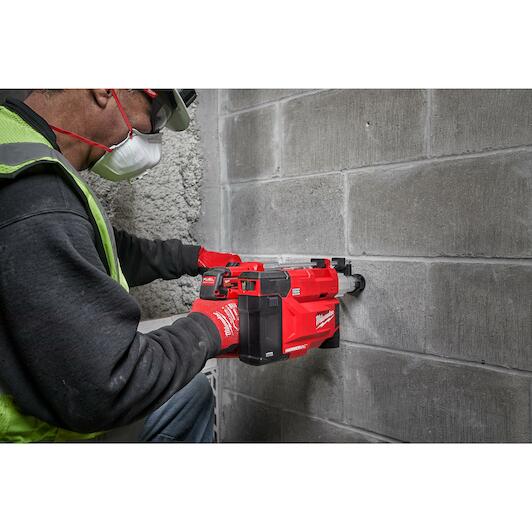

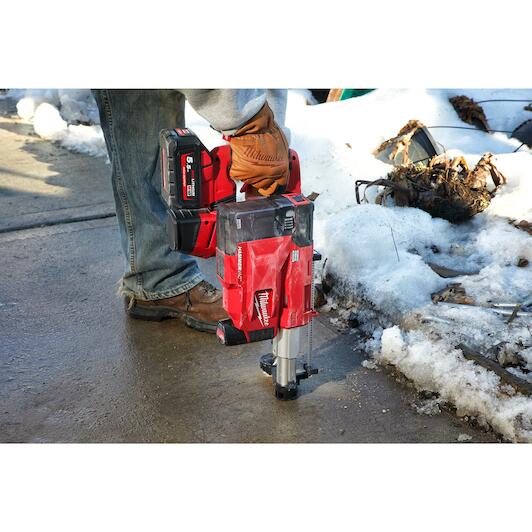

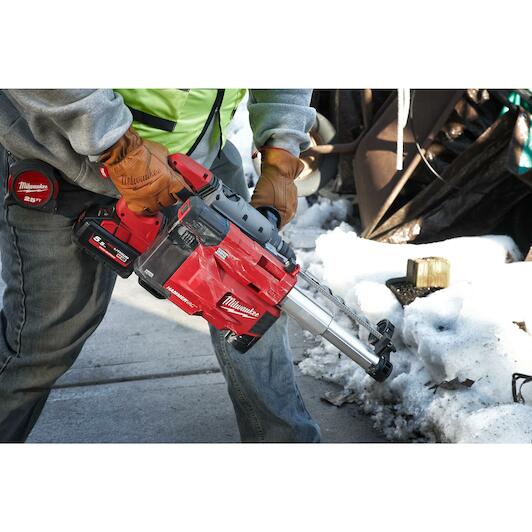

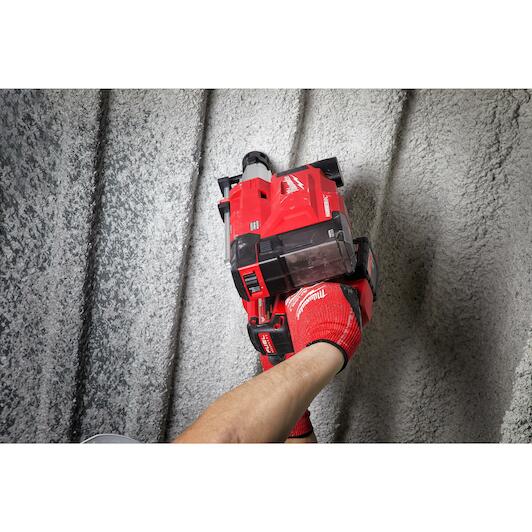

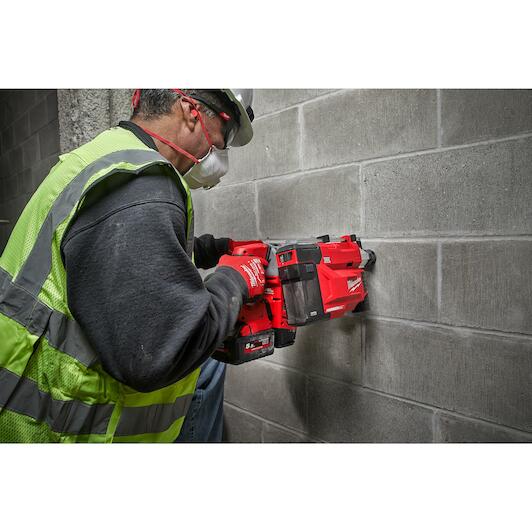

Take full control over dust on the jobsite with the Milwaukee M12 UDEL-201B universal dust extractor. Designed with an adjustable side handle, it mounts quickly onto most SDS-plus rotary hammers with a 41 to 61 mm collar. The integrated hepa H13 filter captures airborne fine silica dust directly at the source, making indoor and overhead drilling cleaner and safer. With smart auto-mode, extraction begins as soon as you drill and delays shut-off by five seconds to clear every hole completely. Supplied with an M12 B2 2.0Ah battery, C12 C charger, two nozzles, and a sturdy tool bag, this kit provides reliable cordless extraction wherever your work takes you.

Product information Accessories FAQ

Key features according to our expert

Supplied as standard

1 x M12 B2 Battery pack
C12 C Charger
Supplied in: Tool bag
2x nozzles
Side handle

Product description

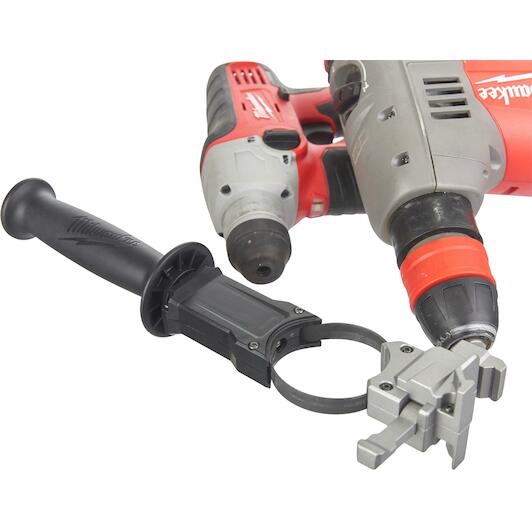

Fits the majority of the MILWAUKEE SDS-plus and the competitor's hammers between 41-61 mm neck size with just one adjustable side handle which can be mounted right or left of the hammer

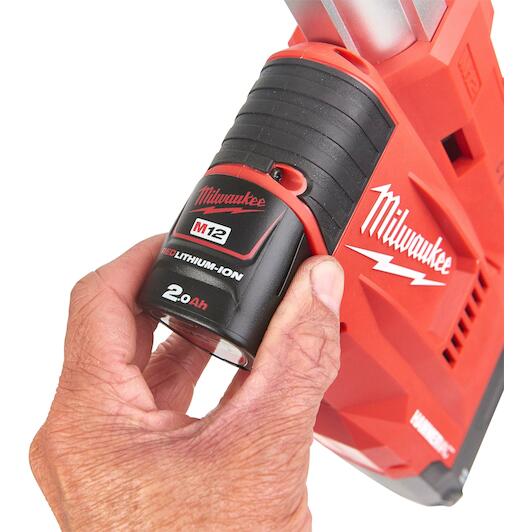

Delivering more than 40 min run time on a single M12 B2 2.0 Ah battery

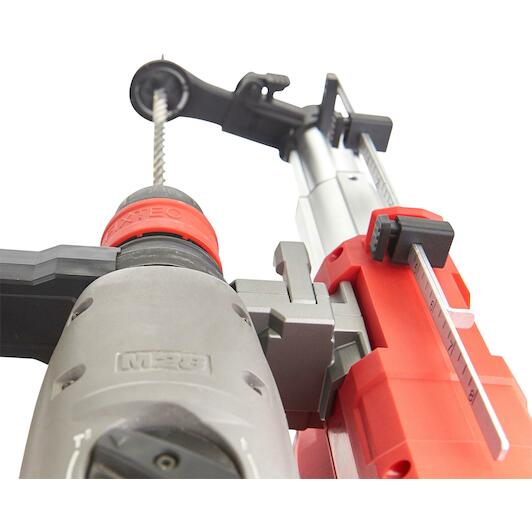

Due to telescopic nozzle capable of operating with up to 210 mm long SDS-plus drill bits

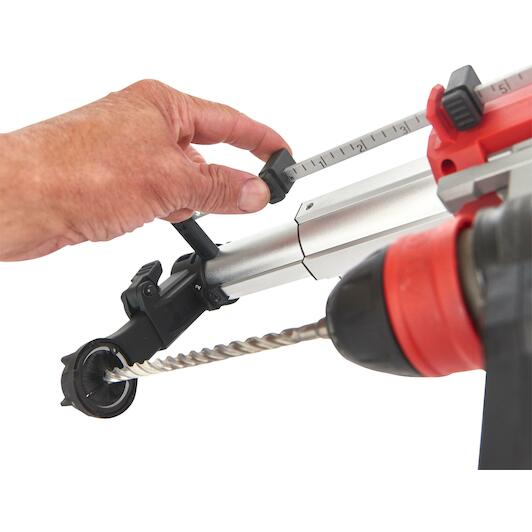

Adjustable drilling depth gauge for a perfect adjustment to the task

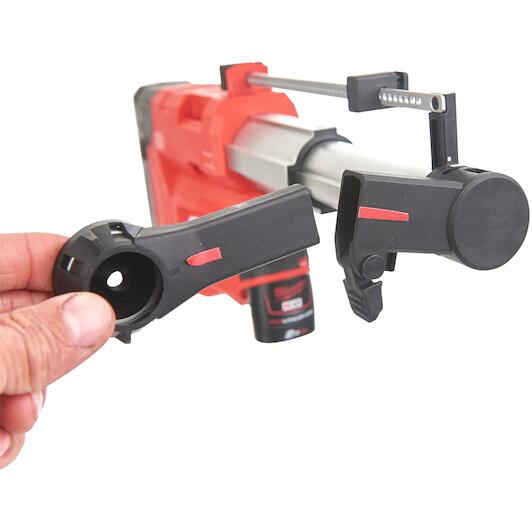

2 exchangeable nozzles with brushes to cover drilling diameters up to Ø30 mm ( Ø5-16 mm, Ø16-30 mm)

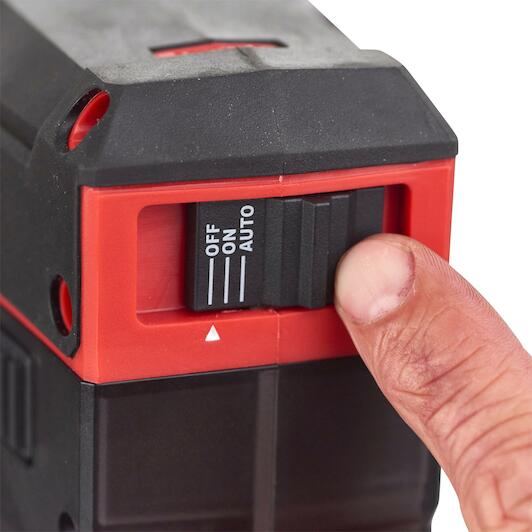

2 different vacuum modes to switch the unit either permanently on or activate it automatically when the actual drilling starts
Automatic 5 sec switch off time delay to ensure a clean drill hole
Equipped with a HEPA H13 class filter as well as a filter cleaning mechanism for best performance and a longer filter life time

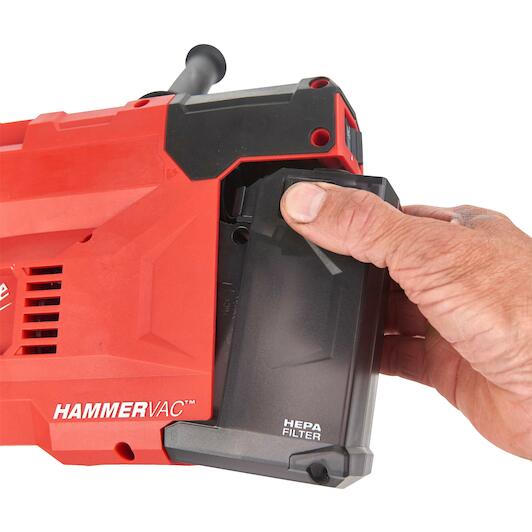

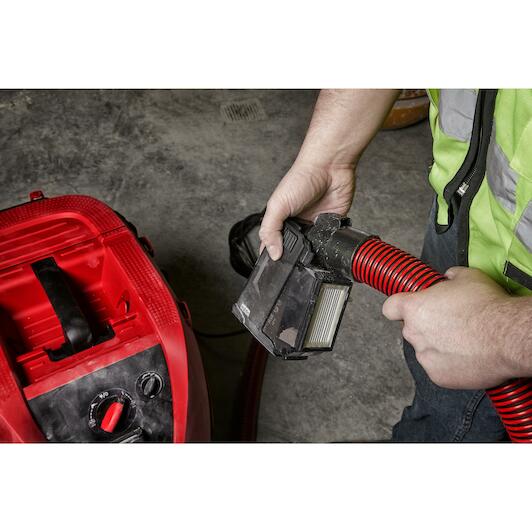

Equipped with a transparent tank for full capacity visibility as well as a Ø32 mm vacuum connector to empty the dust bin without any dust exposure

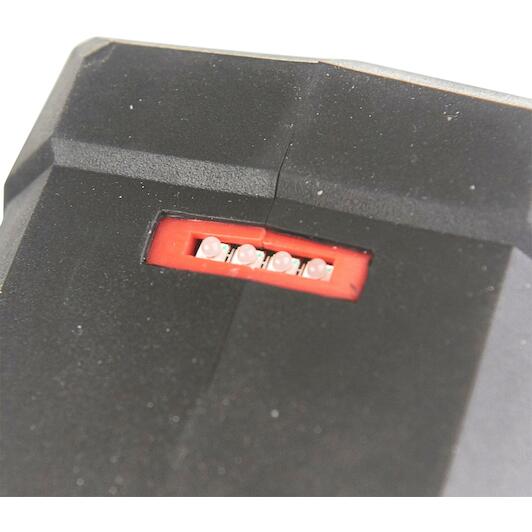

Fuel gauge displays remaining charge

All Features

Air volume (l/min): 466
Drilling diameter (mm): 30
Sound pressure level, deviation (db(a)): 2
Air flow rate (m/hour): 28
Sound power level, deviation (db(a)): 2
Vibration level, deviation (m/s²): 0.5
Sound power level (lwa(db(a)): 86.5
Vibration level (m/s²): 0.2
Liquid capacity (l): 0.31
Max. vacuum (mbar): 23.4
Battery type: Li-ion
Voltage (v): 12
Stroke length (mm): 203
Number of batteries supplied: 1
Max. drilling length (mm): 210
Max drilling depth (mm): 203

Brand MILWAUKEE
03167235
EAN 4058546290894
Supplier number MILWAUKEE 4933471461
