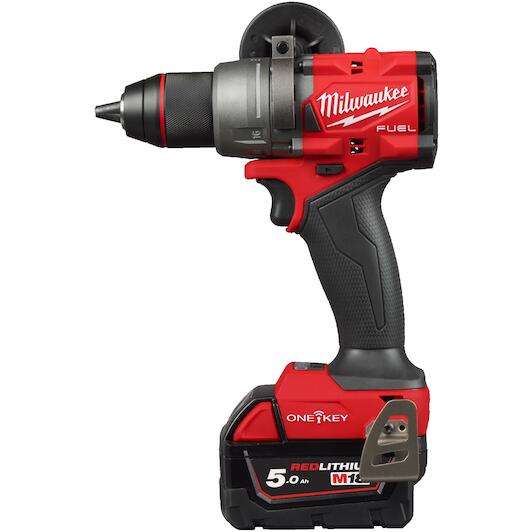

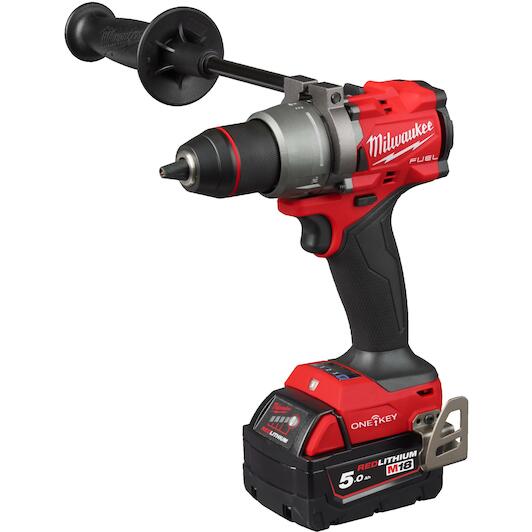

MILWAUKEE M18 ONEPD3-502X FUEL ONE-KEY cordless impact drill in HD Box (2x 5.0Ah battery + charger) - 4933492801

Supplier number: MILWAUKEE 4933492801 | EAN 4058546476724
Recommended Retail Price €699.95
533.36 tax incl.
€440.79 excl. VAT (incl. all environmental contributions)
On order: delivered from 01/12/2026

Powerful performance with digital control

Practical benefits
  • Exceptional torque and power: With 158 Nm of torque, you easily tackle demanding drilling and fastening tasks in tough materials.

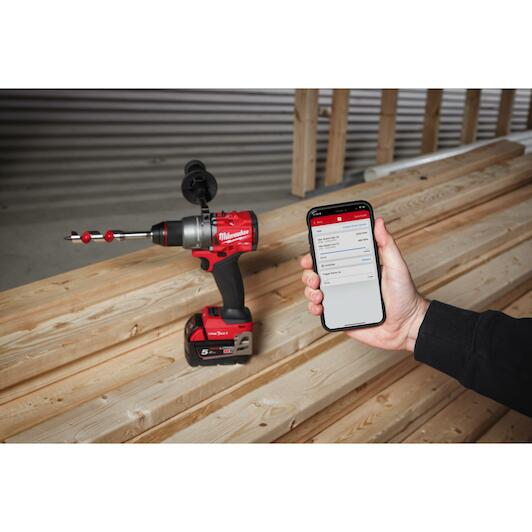

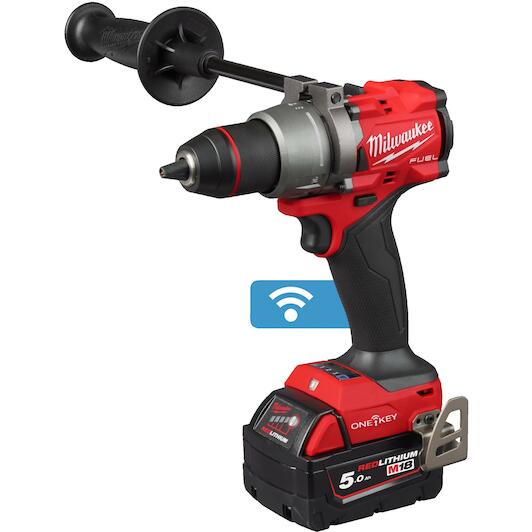

  • Intelligent ONE-KEY customisation: Connect wirelessly via the mobile application to fine-tune speed and power settings for consistent, repeatable precision.
  • Compact Milwaukee combi drill: Measuring just 175 mm in length, it gives you comfortable access and control in tight work areas.

In a nutshell

The right choise for

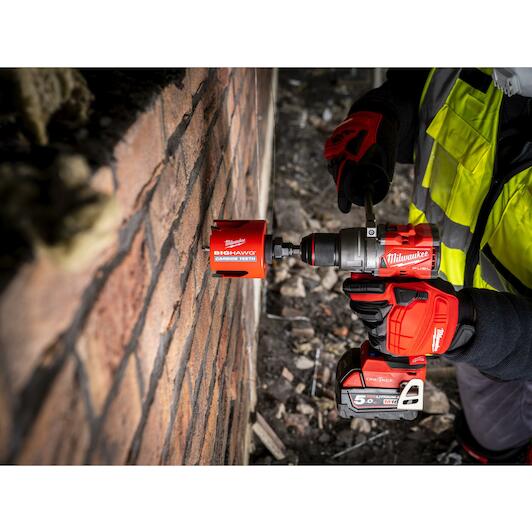

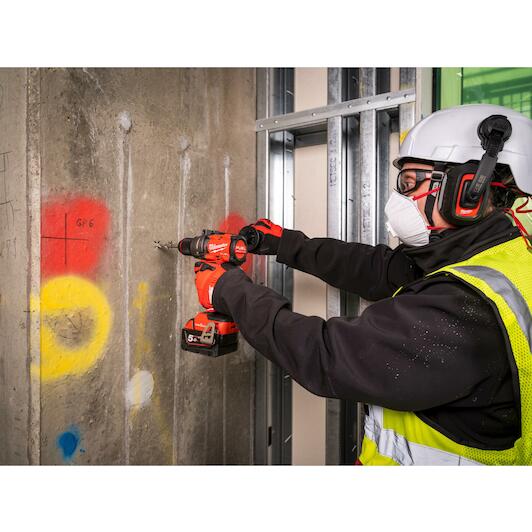

With the Milwaukee M18 ONEPD3-502X cordless combi drill, you tackle demanding drilling and screwdriving jobs with total confidence. Delivering an impressive 158 Nm of torque, it easily drills up to 89 mm in wood and 16 mm in steel or masonry. Integrated one-key technology allows you to customise tool settings wirelessly and manage your tool inventory directly through the app. a compact length of just 175 mm gives you access to tight spaces, while the included side handle provides extra safety and control. This complete set includes two 18V 5.0Ah batteries, an M12-18 fc fast charger, a belt clip, and a durable hd Box.

Recommended Combinations
With Milwaukee M18 HB5 18V 5.0 Ah Battery
With Milwaukee M18 HB5 18V 5.0 Ah Battery and Charger


€533.36
tax incl.

Product information

Key features according to our expert

  • Battery voltage: 18 V
  • Max. drilling diameter (steel): 16 mm
  • Chuck material: Metal
  • UN number: UN3481
  • Weight: 1,5 kg
  • Type of system case: HD Box
  • Supplied in: System case
  • Max. drilling diameter (wood): 89 mm
  • Max. drilling diameter (masonry): 16 mm
  • Number of settings (torque): 16 (+drill mode)
  • Max. tightening torque: 158 Nm
  • Max. clamping capacity: 13 mm
  • Capacity (battery): 5 Ah
  • Number of batteries supplied: 2
  • Product Range: Milwaukee M18

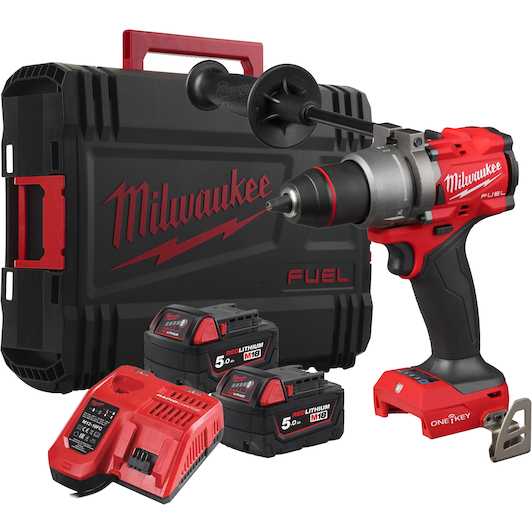

Supplied as standard

  • 2 x M18 B5 Battery packs
  • M12-18 FC Charger
  • Supplied in: HD Box
  • Belt clip
  • Side handle

Product description

  • Higher power efficiency under load - outstanding torque of 158 Nm
  • Extremely compact design of 175 mm length for access into tight spaces

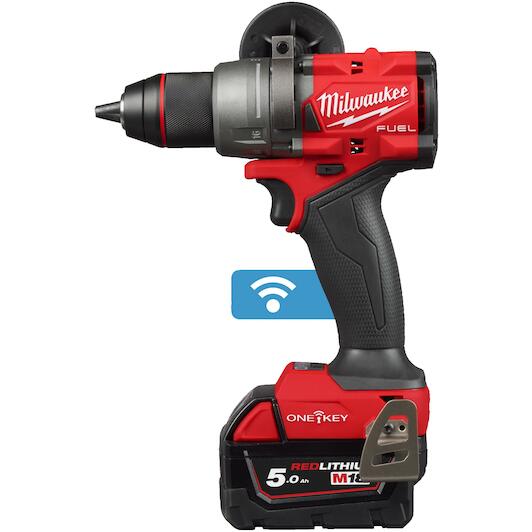

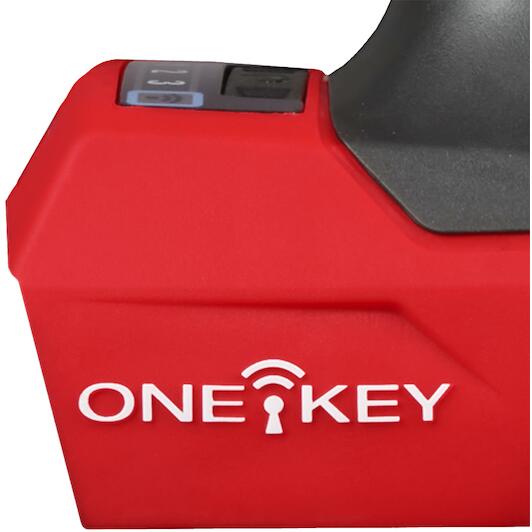

  • Connect via Bluetooth with the ONE-KEY app

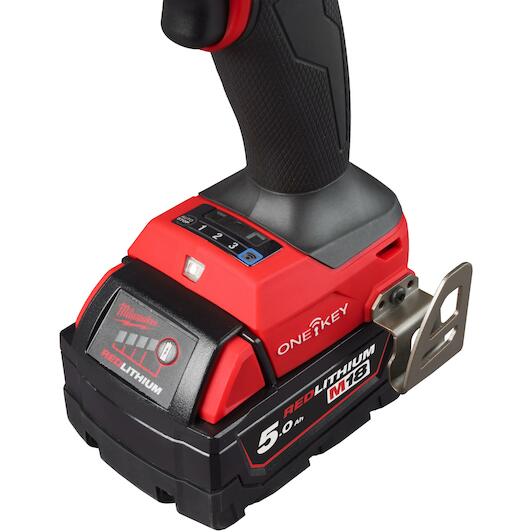

  • Save up to 3 custom settings to the tools memory for fast selection on the jobsite
  • ONE-KEY tool tracking & security offers a free of charge cloud-based tracking network and inventory management platform for your tools. ONE-KEY also features a remote locking functionality
  • Adjustable trigger control for all applications with ONE-KEY
  • Configure to any application choosing optimum tool settings for repeatable precision
  • Control speed, torque, start and end speeds, anti-kickback functions and LED
  • All metal reversible belt clip to hang your tool quickly and easily

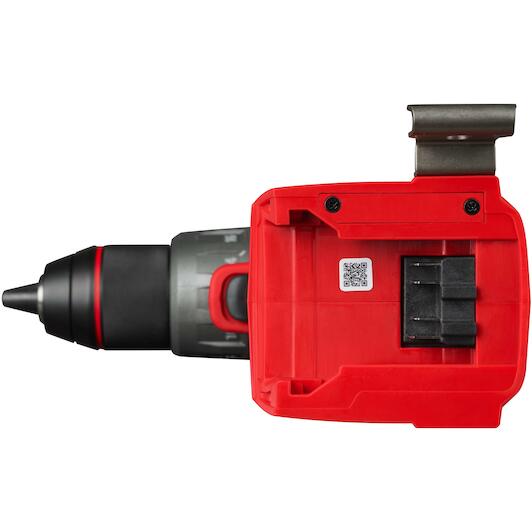

  • Flexible battery system: works with all MILWAUKEE M18 batteries

All Features

Battery voltage
18 V
Max. drilling diameter (steel)
16 mm
Chuck material
Metal
Un number
UN3481
Weight
1,5 kg
Type of system case
HD Box
Supplied in
System case
Max. drilling diameter (wood)
89 mm
Max. drilling diameter (masonry)
16 mm
Number of settings (torque)
16 (+drill mode)
Max. tightening torque
158 Nm
Max. clamping capacity
13 mm
Capacity (battery)
5 Ah
Number of batteries supplied
2
Vibration level when drilling into concrete, deviation (m/s²)
1.5
Vibration level when drilling into concrete (m/s²)
11.3
Screw vibration level (m/s²)
1.48
Max chuck capacity (mm)
13
Sound power level (lwa(db(a))
106.78
Sound power level, deviation (db(a))
3
Vibration level screws, deviation (m/s²)
1.5
Vibration level drilling in metal, deviation (m/s²)
1.5
Sound pressure level, deviation (db(a))
3
Product range
Milwaukee M18
Voltage (v)
18
Battery type
Li-ion
Speed level 1 (rpm)
0 - 500
Max. drill ø in stone (mm)
16
Speed settings
2
Max. drill ø in wood (mm)
89
Vibration level drilling in metal (m/s²)
1.85
Max. torque (nm)
158
Max. drill ø in steel (mm)
16
Max. stroke frequency (per min)
0 - 33,000

Accessories

View more accessories (530)

Frequently asked questions about this product

Answered by specialists
What is included in this set?
You receive the tool, 2 M18 5.0Ah batteries, an M12-18 FC fast charger, a side handle, a belt clip, and an HD Box case.
What is the maximum torque of this percussion drill?
The machine delivers a maximum torque of 158 Nm for heavy-duty drilling and screwdriving applications.
What are the maximum drilling capacities in different materials?
You can drill up to 89 mm in wood, up to 16 mm in steel, and up to 16 mm in masonry.
What benefits does the ONE-KEY technology provide?
ONE-KEY allows you to customize tool settings, lock the tool remotely, and manage inventory tracking via the app.
Which batteries are compatible with this tool?
The tool is compatible with all 18V batteries from the Milwaukee M18 system.
