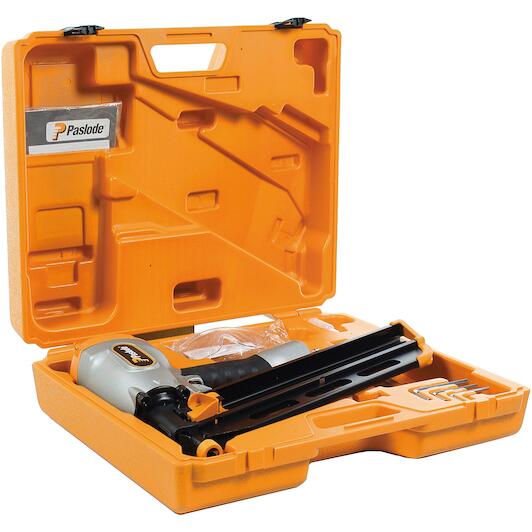

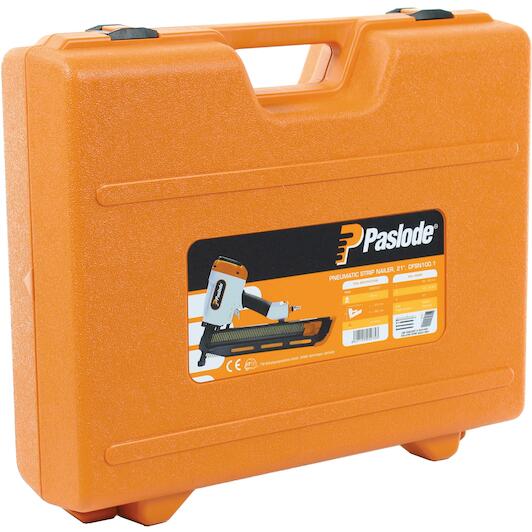

Scope of delivery

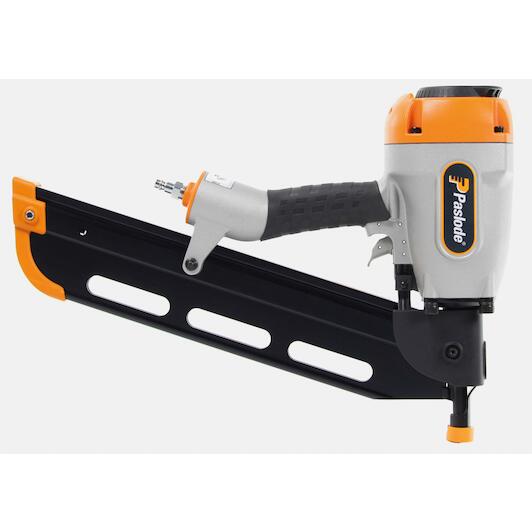

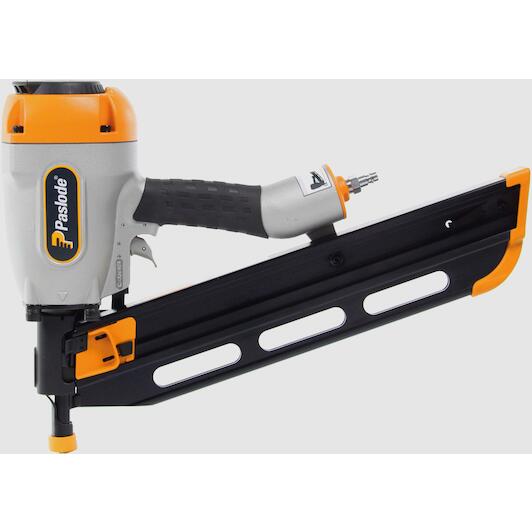

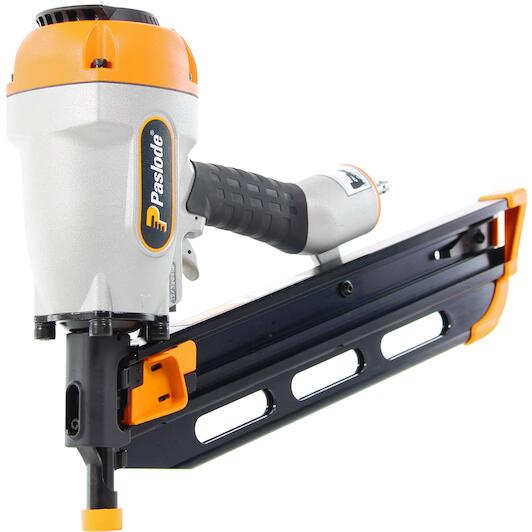

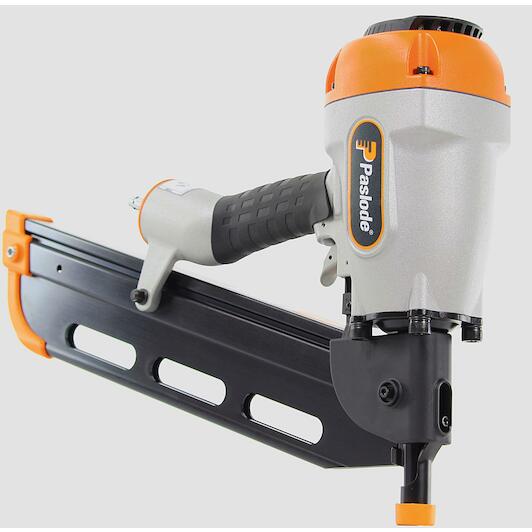

- Strip nailing machine DFSN100.1
- Safety glasses
- Manual
- Maintenance schedule
- Safety instructions
- CE declaration of conformity
- Pneumatic oil
Product description
- Pneumatic nailer for 21° plastic bonded strip nails from 50 to 100 mm
- Multi-functional pneumatic strip nailer for construction and industry
- Lightweight tool secures nails up to 100 mm
- Designed for shooting 21° plastic bonded nails with a full head in smooth, ring and screw design
- Ergonomic and well-balanced
- Depth adjustment for best finishing results
- Rubberised handle
- Available as single-shot and repeating

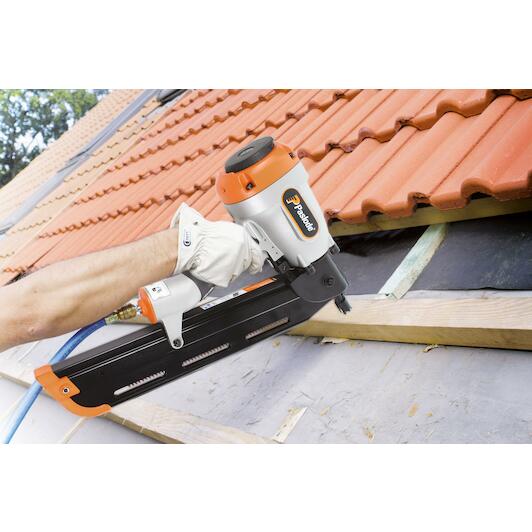

Applications
- Battens
- Roof trusses / Timber frame
- Cladding
- Framing
- Roof panels
- Flat roofing
- Ceiling slabs / suspended ceilings
- Floor slabs
- Panel walls
- Chipboard
- Shuttering
- Terraces
- Packaging
Key features according to our expert
-
Min. nail length: 50 mm
-
Max. nail length: 100 mm
-
Max. working pressure: 3,4 bar
Specifications / All features
-
Brand:
PASLODE
-
02372582
-
EAN:
8427155052753
-
Supplier number:
PASLODE 505275
- Min. nail length
- 50 mm
- Max. nail length
- 100 mm
- Max. working pressure
- 3,4 bar
- Last nail blocking
- Where
- Adjustable air outlet
- Where
- Easy removal
- False
- Number of degrees of nail connection
- 21 °
- Noise level (en 12549) lpa
- 90.0 dB(A)
- Type of connection
- 21° plastic strip
- Nail length (mm)
- 50-100
- Sound level (en 12549) lwa
- 103 dB(A)
- Type of fastening
- Paslode strip nails
- Energy
- pneumatic
- Anchorage tax
- Rear loader
- Anchor diameter range
- 2.8 - 3.4 mm
- Power
- With the key
- Warehouse capacity
- 66 nail
- Minimum air pressure
- 4.9 bar
- Max. air pressure
- 8.3 bar
- Base material
- Wood
- Vibration (en iso 8662-11) hav
- 3.8 m/s²
- Air consumption per shot
- 2.9 l/shot at 6 bar
- Sound level (en 12549) lpc
- < 130 dB(C)
- Operation
- sequential
- Health and safety
- Eye protection, Hearing protection
