Scope of delivery

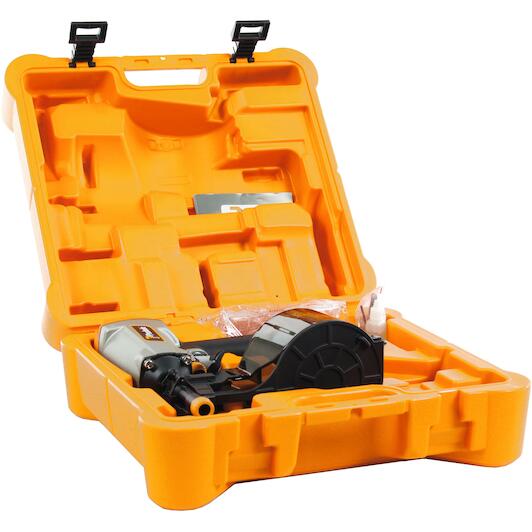

- Coil nailer
- Allen spanner
- Manual
- Exploded view
- Safety instructions
- CE declaration of conformity
- Pneumatic oil
- Special nose + Allen key
Product description

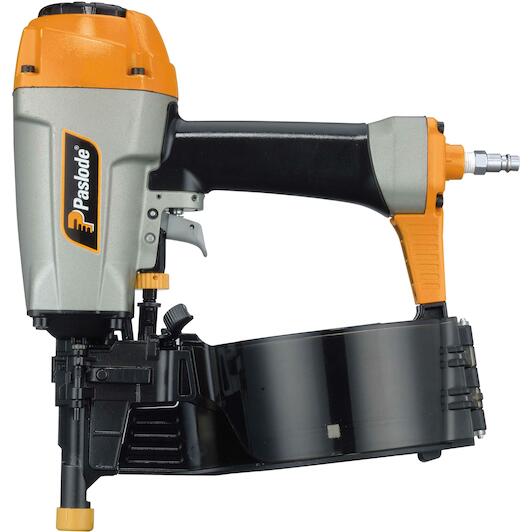

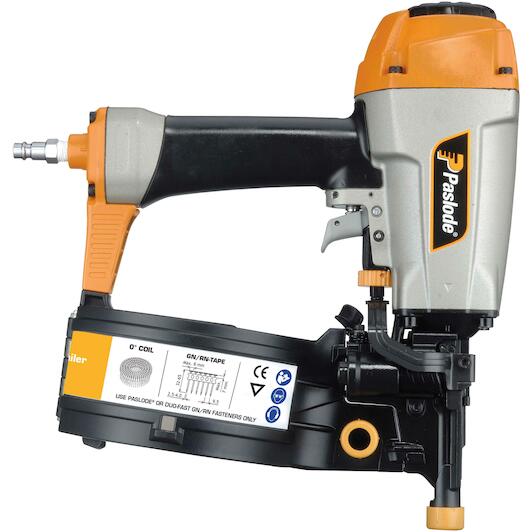

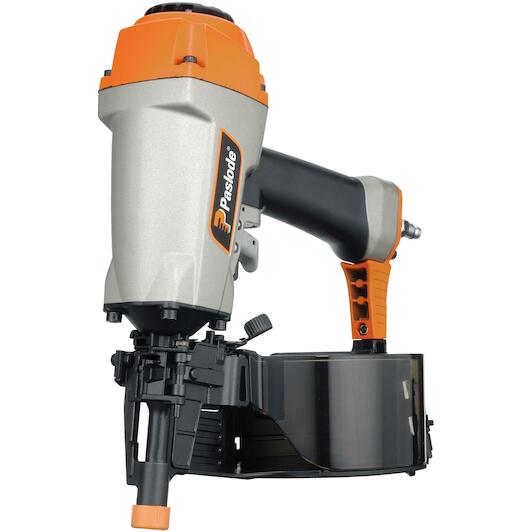

- Pneumatic nailer for 0° plastic bonded coil nails from 32 to 65 mm
- Premium flush nailer for multi-functional use with both nails and screws
- Designed for applying various fasteners up to 65 mm for specific applications
- 0° nail connection: ensures highest finish quality without residual material
- The best-balanced device: light and easy to use
- Large nailing capacity: increases productivity
- Last-nail lock to prevent misses
- Tool-free depth adjustment for a perfect finish
- Available as single-shot and repeating
Applications

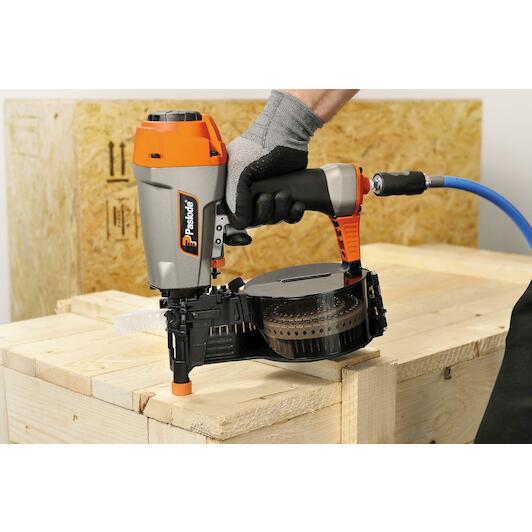

- Industrial packaging

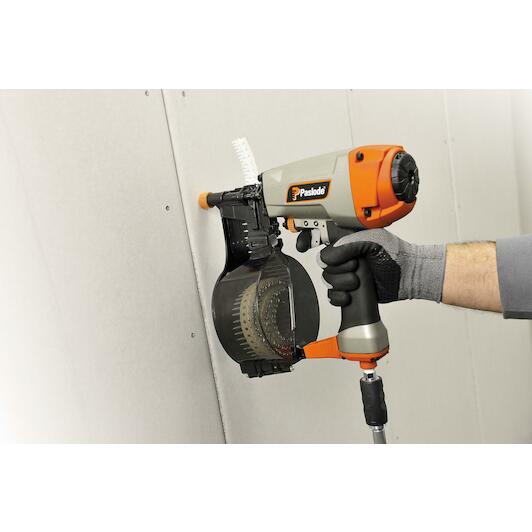

- Internal/external plasterboard-on-wood

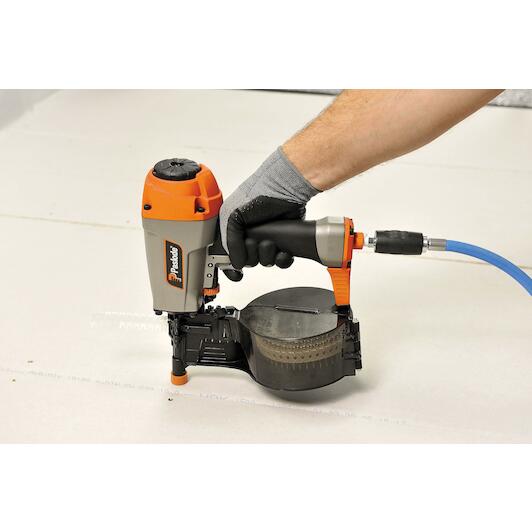

- Chipboard
- Cladding
- Production of garden products
- Walls
Key features according to our expert
-
Min. nail length: 32 mm
-
Max. nail length: 65 mm
-
Max. working pressure: 8,3 bar
Specifications / All features
-
Brand:
PASLODE
-
02758609
-
EAN:
4022907759009
-
Supplier number:
PASLODE 575900
- Min. nail length
- 32 mm
- Max. nail length
- 65 mm
- Max. working pressure
- 8,3 bar
- Number of degrees of nail connection
- 0 °
- Anchor diameter range
- 2.5 - 4.2 mm
- Adjustable air outlet
- Where
- Easy removal
- Where
- Sound level (en 12549) lwa
- 87.6 dB(A)
- Last nail blocking
- Where
- Type of connection
- Plastic bound GN, Plastic bound RN
- Nail length (mm)
- 32-65
- Warehouse
- Where
- Noise level (en 12549) lpa
- 74.6 dB(A)
- Energy
- pneumatic
- Anchorage tax
- Side loader
- Type of fastening
- Plastic-bonded coil nails
- Max. air pressure
- 8.3 bar
- Warehouse capacity
- 150 nail
- Minimum air pressure
- 5.5 bar
- Power
- Thumbwheel
- Base material
- Wood
- Vibration (en iso 8662-11) hav
- 4.0 m/s²
- Air consumption per shot
- 1.7 l/shot at 6 bar
- Sound level (en 12549) lpc
- < 130 dB(C)
- Operation
- sequential
- Health and safety
- Eye protection, Hearing protection
