Product description

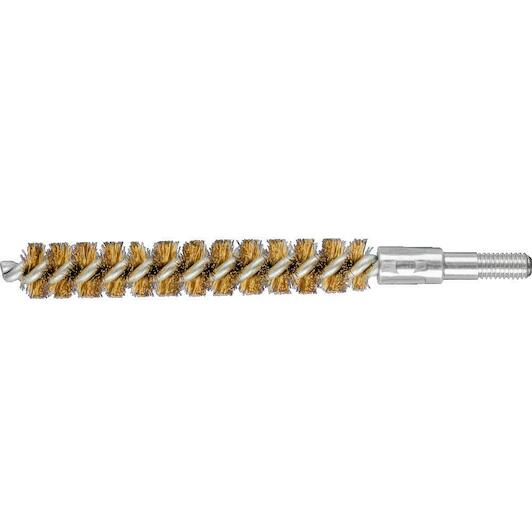

- PFERD tube brush IBU dia. 12x80mm M6 brass wire dia. 0.15
Characteristics

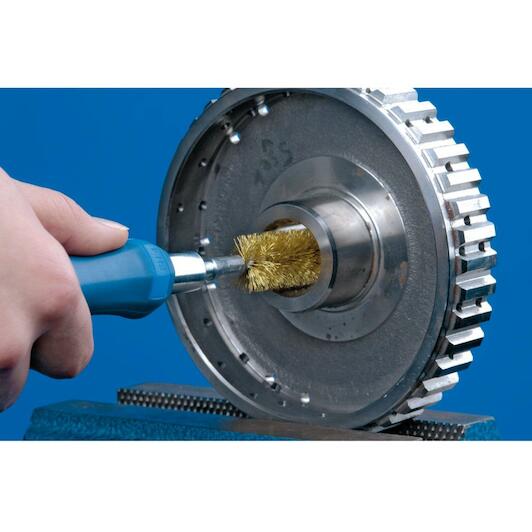

- Particularly suitable for deburring and cleaning pipes, threads, coupling sleeves and cylinders
- Brushes with brass wire filament material are suitable for particular applications such as surface finishing on workpieces made from copper and brass
- In comparison to steel wire, brass wire is softer and more flexible
- For all brushes with brass wire, PFERD uses wire quality CuZn37
- Brass wire withstands temperatures up to 180 °C
- In addition to the thread, this tube brush has a 6 mm shank
Advantages:
- Can be clamped in collets thanks to integrated shank.
- Non-sparking.
- Creates fine surfaces.
Key features according to our expert
-
Diameter: 12 mm
-
Connection type (machine): Outer thread
-
Overall length: 120 mm
-
Pipe brush version: With thread
-
Thread type: Metric
-
Wire thickness: 0,15 mm
-
Connection size (machine): M6
-
Material (brush wire): Brass
-
Brush length: 80 mm
Specifications / All features
-
Brand:
PFERD
-
22087314
-
EAN:
4007220659632
-
Supplier number:
PFERD 43679022
- Diameter
- 12 mm
- Connection type (machine)
- Outer thread
- Overall length
- 120 mm
- Pipe brush version
- With thread
- Thread type
- Metric
- Wire thickness
- 0,15 mm
- Connection size (machine)
- M6
- Material (brush wire)
- Brass
- Brush length
- 80 mm
- ø shaft metric
- 6
- Workable materials 3
- Zinc
- ø outside metric
- 12
- Max. rpm
- 1000
- Filling material
- Brass wire (MES)
- Processing tasks 1
- Deburring
- Processing tasks
- Cleaning
- Workable materials 1
- Copper
- Width metric
- 80
- Workable materials
- Brass
- Length, total
- 120
- ø thread
- M6
- Recording system
- Thread
- Processing tasks 2
- Removing oxide layers
- Workable materials 2
- Other non-ferrous metals
- ø topping material
- 0.15
