Product description

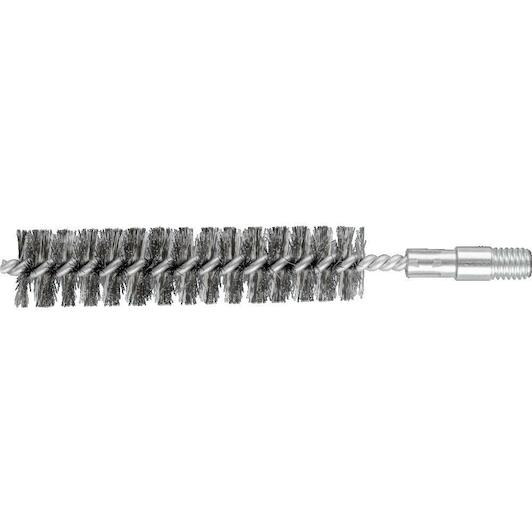

- PFERD tube brush IBU dia. 22x100mm thread 3/8"" BSW stainless steel wire dia. 0.20
Characteristics

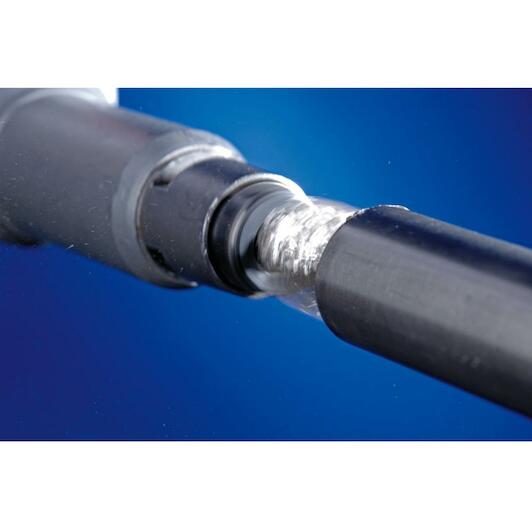

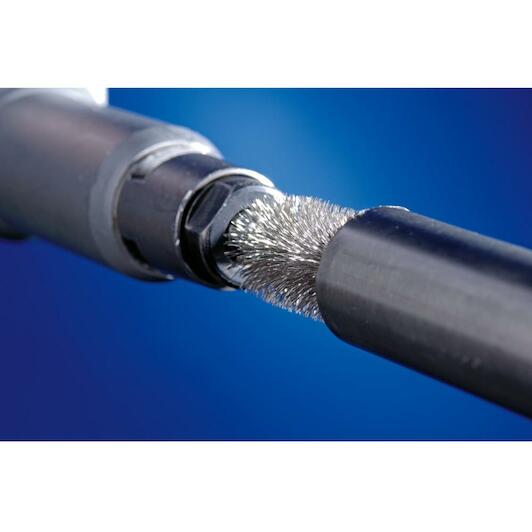

- Particularly suitable for deburring and cleaning pipes, threads, coupling sleeves and cylinders
- In order to fulfil the particular requirements for working with stainless steel (INOX), PFERD uses wire quality 1,4310 (V2A) for all INOX brushes
- Practical experience from industry has shown that this offers very good corrosion resistance with an optimum tool life
- All PFERD brushes with INOX filaments are colour-coded in blue and are suitable for use on all stainless steels (INOX), such as V4A
- The wire quality 1,4310 tends to become ferromagnetic in the case of cold working; i
- E
- It can be attracted using magnets
- ;The reason for this is a change in the microstructure caused by deformation ( e.g. during the wire drawing process)
- This does not have any impact on the quality and corrosion resistance of the INOX filament
- The filament is still resistant to corrosion
- Stainless steel wire (INOX) withstands temperatures up to 450 °C
- In addition to the thread, this tube brush has a 10 mm shank
Advantages:
- Can be clamped in collets thanks to integrated shank.
- Very good corrosion resistance.
- Creates fine surfaces.
Key features according to our expert
-
Diameter: 22 mm
-
Brush length: 100 mm
-
Material (brush filament): Stainless steel
-
Connection size (machine): 3/8"
-
Connection type (machine): Outer thread
-
Thread type: BSW
-
Pipe brush version: With thread
-
Wire thickness: 0,2 mm
-
Overall length: 170 mm
Specifications / All features
-
Brand:
PFERD
-
08077831
-
EAN:
4007220660676
-
Supplier number:
PFERD 43679083
- Diameter
- 22 mm
- Brush length
- 100 mm
- Material (brush filament)
- Stainless steel
- Connection size (machine)
- 3/8"
- Connection type (machine)
- Outer thread
- Thread type
- BSW
- Pipe brush version
- With thread
- Wire thickness
- 0,2 mm
- Overall length
- 170 mm
- Processing tasks 1
- Deburring
- Workable materials 9
- Stainless steel (INOX)
- Workable materials 5
- Nickel-based alloys (e.g. Inconel and Hastelloy)
- Workable materials 1
- Bronze
- Processing tasks
- Cleaning
- Processing tasks 3
- Removal of run-on colours
- Workable materials 3
- Non-ferrous metal hard
- Filling material
- Stainless steel wire (INOX)
- Processing tasks 5
- Removal of lacquers
- Max. rpm
- 1000
- ø outside metric
- 22
- Width metric
- 100
- Workable materials 7
- Other non-ferrous metals
- Workable materials 10
- Titanium
- Workable materials 4
- Heat-resistant materials
- Recording system
- Thread
- Workable materials 8
- soft titanium alloys (tensile strength 500 N/mm²)
- Workable materials 6
- Nickel- or titanium-based superalloys
- Workable materials
- Aluminium
- Workable materials 2
- Cobalt-based alloys
- ø shaft metric
- 10
- Processing tasks 2
- Derusting
- Processing tasks 6
- Roughening
- Workable materials 11
- Titanium alloys
- ø thread
- 3/8 BSW
- Length, total
- 170
- Processing tasks 4
- Removing oxide layers
- ø topping material
- 0.2
