Product description

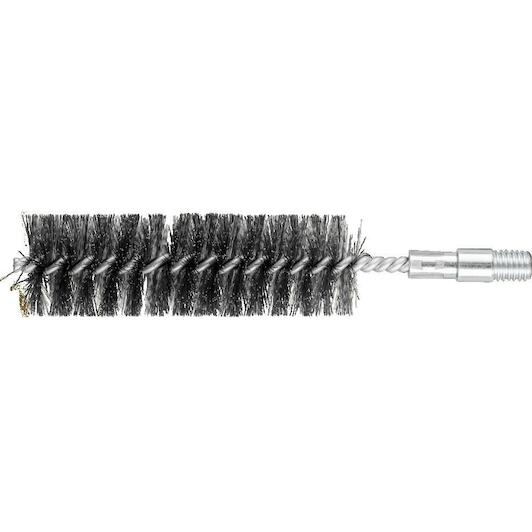

- PFERD tube brush IBU dia. 30x100mm thread 3/8"" BSW steel wire dia. 0.20
Characteristics

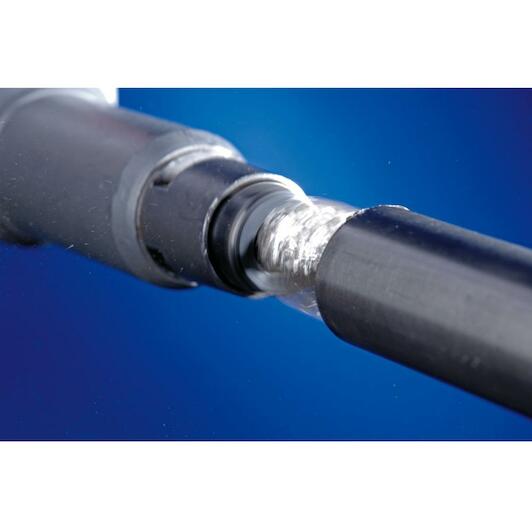

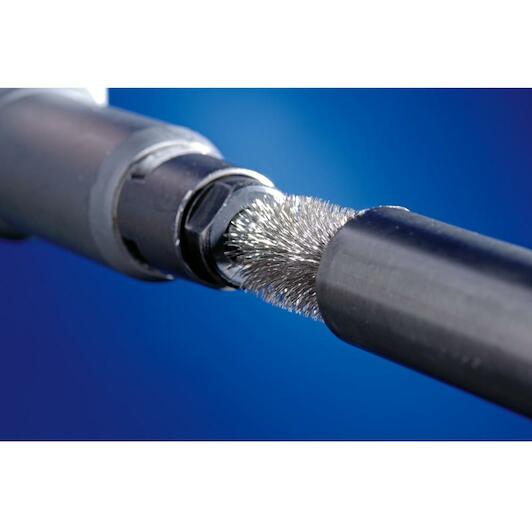

- Particularly suitable for deburring and cleaning pipes, threads, coupling sleeves and cylinders
- Steel wire is the most common filament material
- Brushes with steel wire as the filament material are especially well-suited to work on surfaces and deburring
- PFERD special wire has high tensile strength and bending fatigue strength
- This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications
- Steel wire withstands temperatures up to 300 °C
- In addition to the thread, this tube brush has a 10 mm shank
Advantages:
- Can be clamped in collets thanks to integrated shank.
- Long tool life through use of PFERD special wire.
- Creates fine surfaces.
Key features according to our expert
-
Diameter: 30 mm
-
Brush length: 100 mm
-
Material (brush wire): Steel wire
-
Connection size (machine): 3/8"
-
Connection type (machine): Outer thread
-
Thread type: BSW
-
Pipe brush version: With thread
-
Wire thickness: 0,2 mm
-
Overall length: 170 mm
Specifications / All features
-
Brand:
PFERD
-
57993577
-
EAN:
4007220660744
-
Supplier number:
PFERD 43679101
- Diameter
- 30 mm
- Brush length
- 100 mm
- Material (brush wire)
- Steel wire
- Connection size (machine)
- 3/8"
- Connection type (machine)
- Outer thread
- Thread type
- BSW
- Pipe brush version
- With thread
- Wire thickness
- 0,2 mm
- Overall length
- 170 mm
- Processing tasks 1
- Deburring
- Workable materials 5
- Steel up to 1,200 N/mm² (< 38 HRC)
- Workable materials 1
- Cast steel
- Processing tasks
- Cleaning
- Processing tasks 3
- Removing oxide layers
- Workable materials 3
- Steel, cast steel
- Filling material
- Steel wire (ST)
- Processing tasks 5
- Roughening
- Max. rpm
- 1000
- ø outside metric
- 30
- Width metric
- 100
- Workable materials 7
- Wood
- Workable materials 4
- Steel grades with hardness > 54 HRC
- Recording system
- Thread
- ø shaft metric
- 10
- Processing tasks 4
- Removal of lacquers
- Length, total
- 170
- ø thread
- 3/8 BSW
- Processing tasks 2
- Derusting
- Workable materials 2
- Duroplast
- Workable materials 6
- Thermoplastics
- Workable materials
- Cast iron
- ø topping material
- 0.2
