Product description

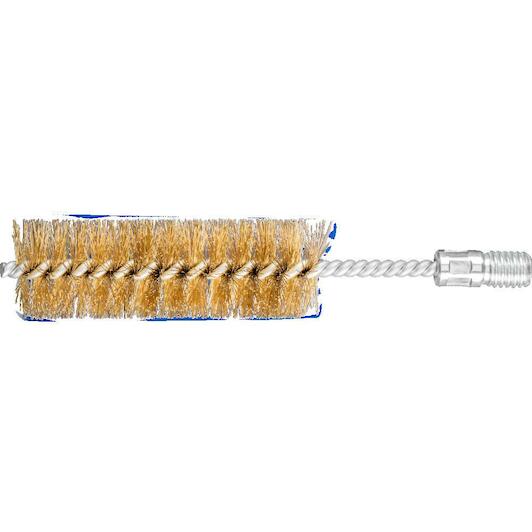

- PFERD Tube brush IBU dia. 32X100 mm thread 1/2"" BSW brass wire dia. 0.25
Characteristics

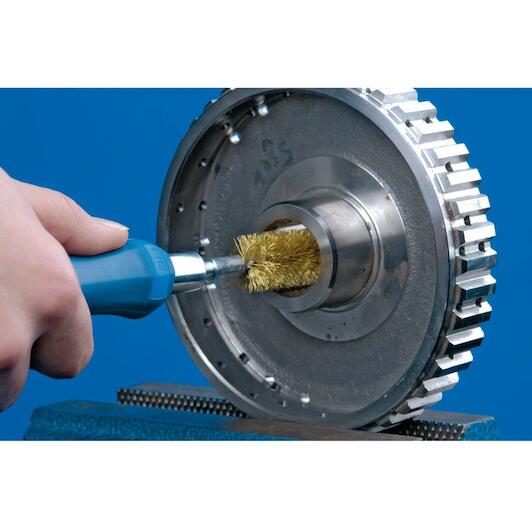

- Particularly suitable for deburring and cleaning pipes, threads, coupling sleeves and cylinders
- Brushes with brass wire filament material are suitable for particular applications such as surface finishing on workpieces made from copper and brass
- In comparison to steel wire, brass wire is softer and more flexible
- For all brushes with brass wire, PFERD uses wire quality CuZn37
- Brass wire withstands temperatures up to 180 °C
Advantages:
- Non-sparking.
- Creates fine surfaces.
Key features according to our expert
-
Diameter: 32 mm
-
Connection type (machine): Outer thread
-
Overall length: 170 mm
-
Pipe brush version: With thread
-
Thread type: BSW
-
Wire thickness: 0,25 mm
-
Connection size (machine): 1/2"
-
Material (brush wire): Brass
-
Brush length: 100 mm
Specifications / All features
-
Brand:
PFERD
-
04023808
-
EAN:
4007220749456
-
Supplier number:
PFERD 43679112
- Diameter
- 32 mm
- Connection type (machine)
- Outer thread
- Overall length
- 170 mm
- Pipe brush version
- With thread
- Thread type
- BSW
- Wire thickness
- 0,25 mm
- Connection size (machine)
- 1/2"
- Material (brush wire)
- Brass
- Brush length
- 100 mm
- Length, total
- 170
- Workable materials 3
- Zinc
- ø outside metric
- 32
- Max. rpm
- 1000
- Filling material
- Brass wire (MES)
- Processing tasks 1
- Deburring
- Processing tasks
- Cleaning
- Workable materials 1
- Copper
- Width metric
- 100
- Workable materials
- Brass
- ø thread
- 1/2 BSW
- Recording system
- Thread
- Processing tasks 2
- Removing oxide layers
- Workable materials 2
- Other non-ferrous metals
- ø topping material
- 0.25
