Product description

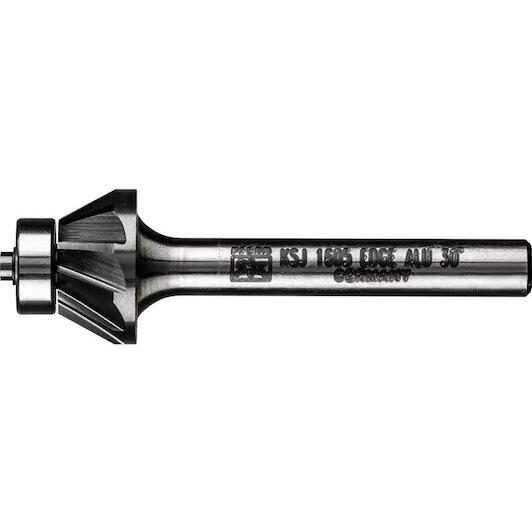

- PFERD Tungsten carbide burr EDGE ALU conical KSJ 30 ° dia. 16x05 mm shank dia. 6 mm work on edges aluminium
Characteristics
- Tungsten carbide burrs with the EDGE cut have been especially developed for defined work on edges

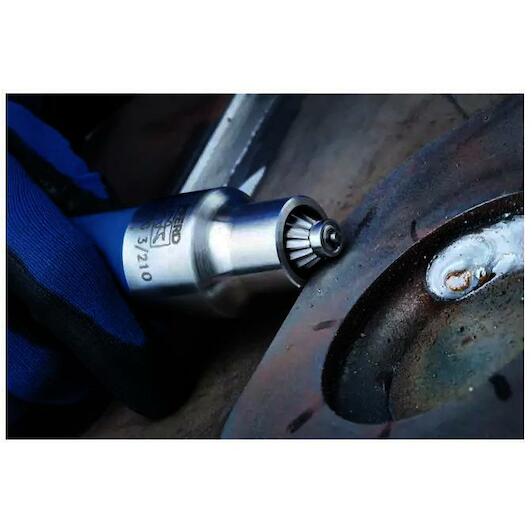

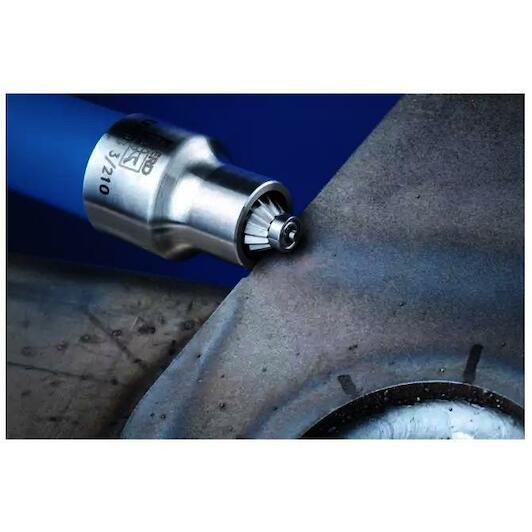

- The special design allows the burr to run directly along the edges without damaging the workpiece
- In just one step, it is possible to achieve precise edge shapes
- Among other things, rounding edges is a precautionary measure for anti-corrosion protection according to: ISO 129443, ISO 85013, SOLAS XII/6,3 (Ref
- T4/3,01 MSC
- 1/Circ
- 1198)
- Conical counterbore burr for the production of precisely defined chamfers
- Suitable for counterboring and chamfering of defined 30° chamfer angles
Advantages:
- Special design for precise guidance.
- Safe and comfortable to guide.
- Creates exact edge shapes in one single step.
- The highly accurate concentricity enables impactfree working without creating chatter marks. This considerably reduces wear on the tool and tool drive.
