PFERD Tungsten carbide burr EDGE conical counterbore KSJ 45 ° dia. 16x03 mm shank dia. 6 mm work on edges
Characteristics
Tungsten carbide burrs with the EDGE cut have been especially developed for defined work on edges
The special design allows the burr to run directly along the edges without damaging the workpiece
In just one step, it is possible to achieve precise edge shapes
Among other things, rounding edges is a precautionary measure for anti-corrosion protection according to: ISO 129443, ISO 85013, SOLAS XII/6,3 (Ref
T4/3,01 MSC
1/Circ
1198)

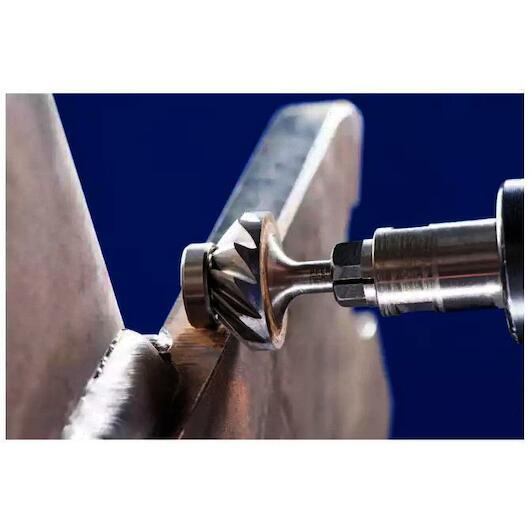

Conical counterbore burr for the production of precisely defined chamfers
Suitable for counterboring and chamfering of defined 45° chamfer angles

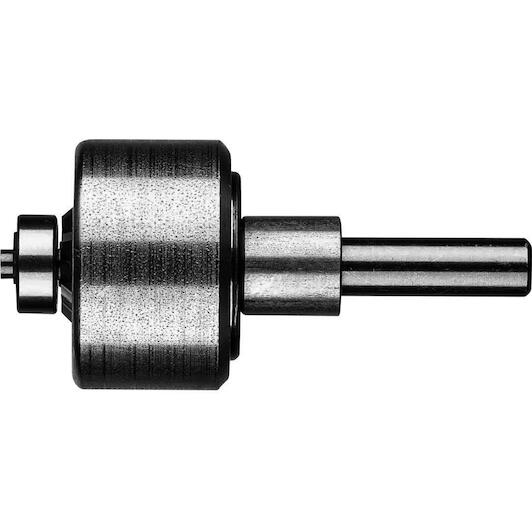

The EDGE Cutting System consists of burrs with the EDGE cut and a special guide sleeve

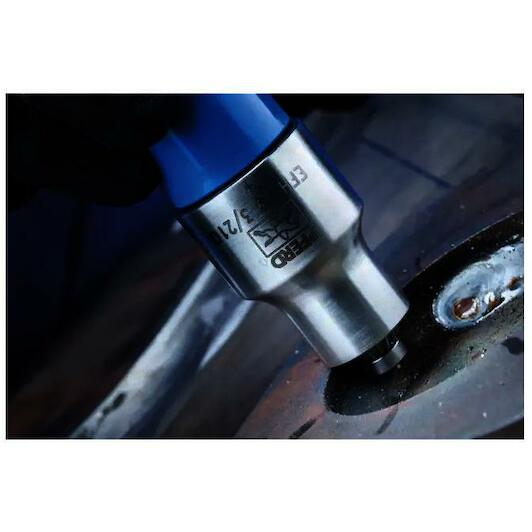

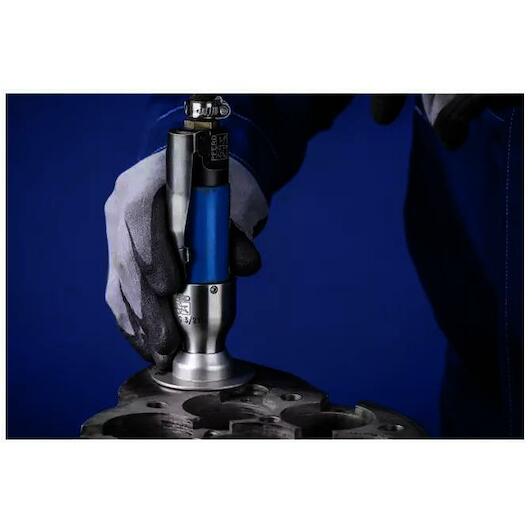

The system can be used on any commercially available drive to ensure optimal guidance during light deburring work
The chamfers created using the EDGE Cutting System (ECS) are 1,2 mm (+/- 0,2 mm) wide
Advantages:
Improved guidance.
Can be used with any conventional straight grinder.
Burr is interchangeable.
Special design for precise guidance.
Safe and comfortable to guide.
Creates exact edge shapes in one single step.
The highly accurate concentricity enables impactfree working without creating chatter marks. This considerably reduces wear on the tool and tool drive.
