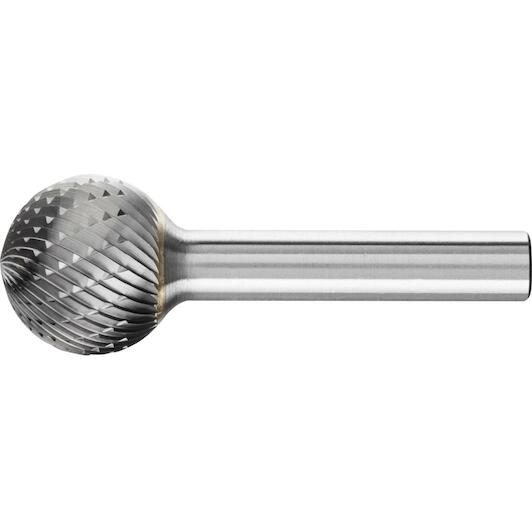

PFERD KUD 2018/8 Z3 PLUS tungsten carbide burrs ball shape 20x18mm 8mm universal medium with crosscut teeth - 21113028

Name: PFERD KUD 2018/8 Z3 PLUS tungsten carbide burrs ball shape 20x18mm 8mm universal medium with crosscut teeth - 21113028
Brand: PFERD
SKU: 51183779
Price: 92.31 EUR
Availability: PreOrder

Supplier number: PFERD 21113028 | EAN 4007220047231

92.31 tax incl.

€76.29 excl. VAT (incl. all environmental contributions)

On order: delivered from 08/10/2026

Ordered before 20:00 - delivered as of 08/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Efficient metal removal with Pferd

Practical benefits

High stock removal rate: The Z3 PLUS universal cross cut delivers fast, effective material removal across steel, cast iron, and stainless steel.
Smooth and impact-free operation: Accurate concentricity ensures you work without chatter marks, reducing overall wear on both burr and drive tool.
Versatile ball head geometry: The spherical design allows you to easily deburr edges, mill internal contours, and prepare weld seams with precision.

In a nutshell

The right choise for

With the Pferd kud 2018/8 Z3 plus tungsten carbide rotary burr, you machine steel, cast iron, and stainless steel with high efficiency and accurate control. The ball-shaped cutting head, featuring a 20 mm diameter and an 18 mm cut length, is ideal for deburring contours, milling inner radii, and smoothing weld seams. Thanks to the universal Z3 plus cross cut, you benefit from a high stock removal rate combined with smooth, chatter-free operation that protects both your workpiece and drive tool. Fitted with a sturdy 8 mm cylindrical shank, this durable rotary burr delivers reliable performance across demanding metalworking tasks.

Product information FAQ

€92.31

tax incl.

Key features according to our expert

Diameter: 20 mm
Shank size (milling cutter): 8 mm
Shank type: Cylindrical
Shape (burr cutter): Sphere (D)
Cutting length: 18 mm

Product description

PFERD Tungsten carbide burr ball KUD dia. 20x18 mm shank dia. 8 mm Z3P universal medium cross cut

Characteristics

Cut 3 PLUS is cross cut and especially well-suited to machining of cast iron, steel, stainless steel (INOX), nickel-based alloys and titanium alloys
It is characterized by its high stock removal rate
Tungsten carbide burrs for general applications are suitable for fine and coarse stock removal on the key materials used in industrial manufacturing
They provide a good stock removal rate and are not specific to a particular material
Ball-shaped burr according to DIN 8032 with cut conforming to DIN 8033

Advantages:

Good stock removal rate through optimum matching of tungsten carbide, geometry, cut and available coating.
Long tool life.
The highly accurate concentricity enables impactfree working without creating chatter marks. This considerably reduces wear on the tool and tool drive.
High surface quality.

All Features

Diameter: 20 mm
Shank size (milling cutter): 8 mm
Shank type: Cylindrical
Shape (burr cutter): Sphere (D)
Cutting length: 18 mm
Processing tasks: Obtaining cut-outs
Rpm up to, hardened refined steels above 1,200 n/mm²: 6000
Rpm of, steels up to 1,200 n/mm²: 7000
Rpm of, stainless and acid-resistant steels: 4000
Rpm van, grey cast iron, white cast iron: 7000
Gearing: 3 PLUS
Rpm up to, steels up to 1,200 n/mm²: 10000
Rpm of, heat-resistant materials: 4000
Rpm of, hardened refined steels above 1,200 n/mm²: 4000
Rpm to, grey cast iron, white cast iron: 10000
Workable materials: Annealed cast iron
Rpm to, stainless and acid-resistant steels: 5000
Length, toothed: 18
ø shaft metric: 8
Rpm to, heat-resistant materials: 7000

Brand PFERD
51183779
EAN 4007220047231
Supplier number PFERD 21113028

Frequently asked questions about this product

Answered by specialists

What shape is this Pferd rotary burr?: It is a ball-shaped burr (shape KUD according to DIN 8032), designed for contouring and deburring tasks.
What is the shank diameter of the Pferd KUD 2018/8 Z3 PLUS?: The cylindrical shank has a diameter of 8 mm. Ensure your drive tool is equipped with an 8 mm collet.
What are the dimensions of the cutting head?: The burr head has a 20 mm diameter and an 18 mm cut length, with a total overall length of 58 mm.
What are the advantages of the Z3 PLUS cut?: The Z3 PLUS cross cut delivers high stock removal rates, smooth operation, and small chips on steel and cast iron.
What material is the cutting head made of?: It is made of solid tungsten carbide (HM), providing exceptional wear resistance and a long service life.
