pferd_21134338

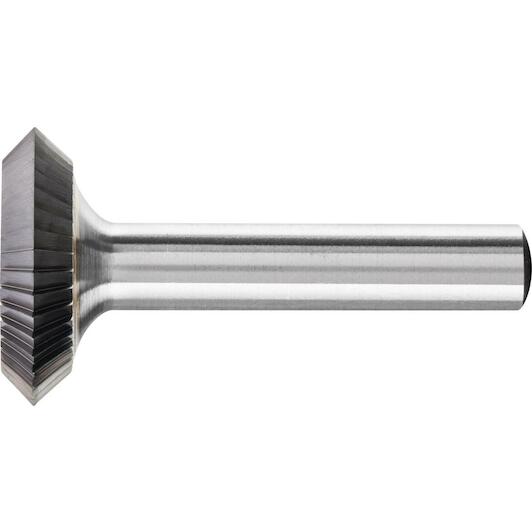

PFERD N 2506/8 Z3 carbide burr shape disc 25x6mm 8mm universal medium - 21134338

PFERD
Supplier number: PFERD 21134338 | EAN 4007220048757
125.09 tax incl.
€103.38 excl. VAT (incl. all environmental contributions)
On order: delivered from 20/10/2026

  • Ordered before 20:00 - delivered as of 20/10/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium
✆ Talk to a specialist


Product information
€125.09
tax incl.

Product information

Key features according to our expert

  • Diameter: 25 mm
  • Shape (burr cutter): Special
  • Cutting length: 6 mm
  • Shank type: Cylindrical
  • Shank size (milling cutter): 8 mm

Product description

  • PFERD Tungsten carbide burr rim shape N dia. 25x06 mm shank dia. 8 mm Z3 universal medium

Characteristics

  • Cut 3 is especially well-suited to machining of cast iron, steel, stainless steel (INOX), nickel-based alloys and titanium alloys
  • It is characterized by its high stock removal rate and achieves a good surface
  • Tungsten carbide burrs for general applications are suitable for fine and coarse stock removal on the key materials used in industrial manufacturing
  • They provide a good stock removal rate and are not specific to a particular material
  • Rim-shaped burr, circumferential cut is 90° and symmetric, tapered tip
  • The rim shape is particularly well suited to producing and processing prism-shaped keyways

Advantages:

  • Good stock removal rate through optimum matching of tungsten carbide, geometry, cut and available coating.
  • Long tool life.
  • The highly accurate concentricity enables impactfree working without creating chatter marks. This considerably reduces wear on the tool and tool drive.
  • High surface quality.

All Features

Diameter
25 mm
Shape (burr cutter)
Special
Cutting length
6 mm
Shank type
Cylindrical
Shank size (milling cutter)
8 mm
Rpm up to, hardened refined steels above 1,200 n/mm²
4000
Rpm up to, hard non-ferrous metals
4000
Rpm of, soft non-ferrous metals
6000
Rpm of, hard non-ferrous metals
3000
Rpm of, stainless and acid-resistant steels
3000
Processing tasks
Deburring
Rpm van, grey cast iron, white cast iron
6000
Gearing
3
Rpm up to, soft non-ferrous metals
8000
Rpm of, hardened refined steels above 1,200 n/mm²
3000
Rpm to, grey cast iron, white cast iron
8000
Corner
90
Workable materials
Annealed cast iron
Rpm to, stainless and acid-resistant steels
4000
Length, toothed
6
ø shaft metric
8
  • Brand PFERD
  • EAN 4007220048757
  • Supplier number PFERD 21134338
