PFERD WRC 1020/6 Z3 PLUS HC-FEP carbide high-efficiency burr round roller 10x20mm 6mm HICOAT universal - 21105224

Name: PFERD WRC 1020/6 Z3 PLUS HC-FEP carbide high-efficiency burr round roller 10x20mm 6mm HICOAT universal - 21105224
Brand: PFERD
SKU: 03234284
Price: 76.87 EUR
Availability: PreOrder

76.87 tax incl.

€63.53 excl. VAT (incl. all environmental contributions)

PFERD WRC 1020/6 Z3 PLUS HC-FEP carbide high-efficiency burr round roller 10x20mm 6mm HICOAT universal - 21105224

€76.87

On order: delivered from 26/05/2026

each

Ordered before 20:00 - delivered as of 26/05/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

Product information

Product description

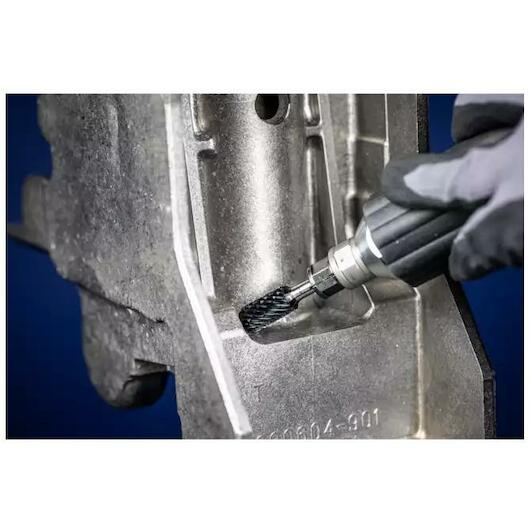

PFERD Tungsten carbide high-performance burr cylindrical with radius end WRC dia. 10x20 mm shank dia. 6 mm Z3P HICOAT universal

Characteristics

Cut 3 PLUS with HICOAT coating HC-FEP is characterized by its high hardness and wear resistance
It enables effective chip removal through improved anti-adhesion characteristics and is highly temperature-resistant
It allows for a longer tool life and use at higher cutting speeds in comparison with uncoated burrs
Cylindrical burr with radius end according to DIN 8032 with cut conforming to DIN 8033
Combination of cylindrical and ball-shaped geometries

Advantages:

The highly accurate concentricity enables impactfree working without creating chatter marks. This considerably reduces wear on the tool and tool drive.

Key features according to our expert

Diameter: 10 mm
Shape (burr cutter): Rounded cylindrical (C)
Cutting length: 20 mm
Shank type: Cylindrical
Shank size (milling cutter): 6 mm

Specifications / All features

Brand: PFERD
03234284
EAN: 4007220222546
Supplier number: PFERD 21105224

Diameter: 10 mm
Shape (burr cutter): Rounded cylindrical (C)
Cutting length: 20 mm
Shank type: Cylindrical
Shank size (milling cutter): 6 mm
Rpm up to, steels up to 1,200 n/mm²: 24000
Gearing: 3 PLUS HC-FEP
Rpm of, steels up to 1,200 n/mm²: 14000
Workable materials 7: Steel above 700 N/mm² (> 220 HB)
Workable materials 9: Tool steel
ø outside metric: 10
Processing tasks 5: Machining of surfaces
Rpm up to, hardened refined steels above 1,200 n/mm²: 14000
Processing tasks 1: Deburring
Processing tasks 3: Milling
Processing tasks: Obtaining cut-outs
Workable materials 1: Cast steel
Workable materials 5: Steel, cast steel
Workable materials 3: Hardened, heat-treated steels above 1,200 N/mm² (< 38 HRC)
ø shaft metric: 6
Workable materials 4: Steel
Workable materials 8: Steel up to 700 N/mm² (< 220 HB)
Processing tasks 4: Milling out
Length, total: 60
Processing tasks 6: welding
Processing tasks 2: Levelling
Workable materials 2: Aluminium alloys hard
Length, toothed: 20
Workable materials 6: Steel up to 1,200 N/mm² (< 38 HRC)
Workable materials: High-speed steel
Rpm of, hardened refined steels above 1,200 n/mm²: 8000
