PHANTOM

PHANTOM 158200600 HSS-E centre drill bit DIN 332/2 for tapped holes' 60° M6 5x6'4mm

100.54 tax incl.
€83.09 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium

Product Description:

  • Phantom HSS-E DIN 332-A for threaded holes 60°
  • DIN 332-A, for drilling centre holes according to DIN 332/2, straight shank
Key features according to our expert
  • Diameter: 5 mm
  • Point angle: 60 °
  • Overall length: 71 mm
  • Shank size: 12,5 mm
Specifications / All features
  • Brand: PHANTOM
  • EAN: 8716563331216
  • Supplier number: PHANTOM 158200600
Diameter
5 mm
Point angle
60 °
Overall length
71 mm
Shank size
12,5 mm

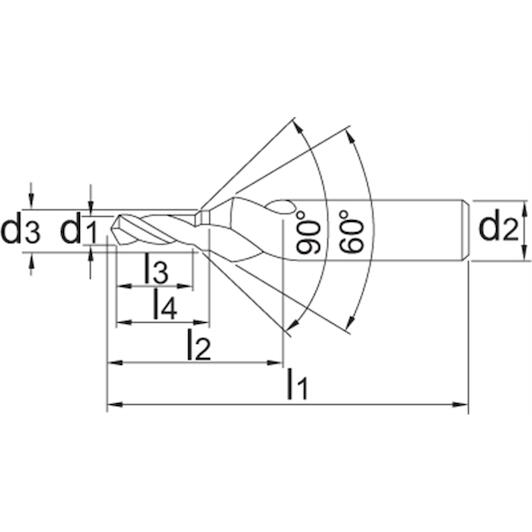

Metric (m)
6
Total length (l1)
71 mm
Tool material
HSS-E
Flute length (l2)
33 mm
Drill diameter (d1)
5 mm
Tolerance d2 (tol. d2)
h7
Diameter ø (d3)
6,4 mm
Coolant feed
No
Cutting direction
Right
Working length (l3)
16 mm
Tolerance d1 (tol. d1)
0/-0,05
Shank ø (d2)
12,5 mm
Second length (l4)
18,9 mm
Point type
Thinned point
Surface
Bright
Shank type
Straight shank
Shape
D
Norms
DIN 332-D
