Product Description:
- Phantom HSS-E Phantom short 90°
- Phantom, type N, straight shank, short series
Supplier number:
PHANTOM 161000200
|
EAN
8716563331414
26.14
tax incl.
€21.60 excl. VAT (incl. all environmental contributions)

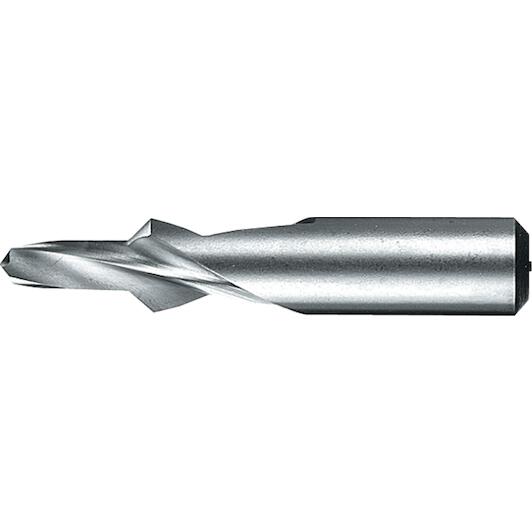

Phantom HSS-E step drill for precision holes
Practical benefits- Drill and countersink together: You complete the core hole and 90° countersink in a single efficient operation.
- Resilient HSS-E cobalt steel: High heat resistance prevents premature wear during demanding metal drilling applications.
- Accurate fit for M2: The 2.2 mm to 4.6 mm stepped profile ensures exact clearances for countersunk screws.
In a nutshell
The right choise forWith the Phantom hss-e step drill 16.100, you drill and countersink in a single operation. This tool simultaneously creates a 2.2 mm pilot hole and a 90° countersink of 4.6 mm for fine fit M2 countersunk screws. By eliminating tool changes, it speeds up your workflow while ensuring exact concentricity. Thanks to its resilient hss-e cobalt formulation, the drill maintains heat resistance and long tool life during demanding metal machining. The 4.6 mm cylindrical shank provides stable clamping, giving you full control and precision in every drilling task.
Product information
Key features according to our expert
- Smallest diameter: 2,2 mm
- Shank size: 4,6 mm
- Largest diameter: 4,6 mm
All Features
- Smallest diameter
- 2,2 mm
- Shank size
- 4,6 mm
- Largest diameter
- 4,6 mm
- Tolerance d1 (tol. d1)
- ±0,05
- Total length (l1)
- 45 mm
- Tool material
- HSS-E
- Drill diameter (d1)
- 2,2 mm
- Tolerance d2 (tol. d2)
- h9
- Diameter ø (d3)
- 4,6 mm
- Coolant feed
- No
- Cutting direction
- Right
- Working length (l3)
- 6 mm
- Shank ø (d2)
- 4,6 mm
- Metric (m)
- 2
- Point type
- Thinned point
- Surface
- Bright
- Shank type
- Straight shank
- Point angle
- 118°
- Brand PHANTOM
- EAN 8716563331414
- Supplier number PHANTOM 161000200
Frequently asked questions about this product
Answered by specialists
- What is this step drill used for?
- It drills a 2,2 mm clearance hole and a 90° countersink of 4,6 mm in a single operation for M2 fine fit screws.
- What type of shank does this drill have?
- It features a straight cylindrical shank with a diameter of 4,6 mm.
- What material is this tool made of?
- It is made of HSS-E (high-speed cobalt steel), providing superior heat resistance and extended tool life.
- What are the step dimensions?
- The smaller pilot diameter is 2,2 mm and the larger countersink diameter is 4,6 mm.
- What is the countersink step angle?
- The countersink step has an angle of 90°.
