Accurate drilling in metal

Practical benefits

Wear-resistant TiN tip: The titanium nitride tip reduces friction, allowing you to drill faster with extended tool life.
Immediate self-centering start: The split point and 118° point angle ensure you begin drilling accurately without walking or pre-punching.
Complete Phantom drill set: Containing diameters from 1 to 10 mm, this set provides the exact size you need for hand-held drilling.

In a nutshell

The right choise for

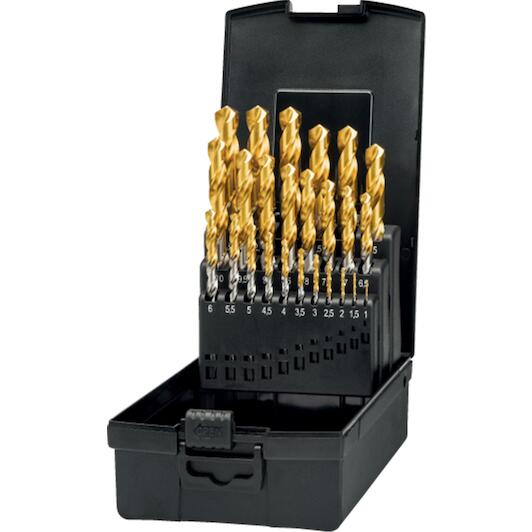

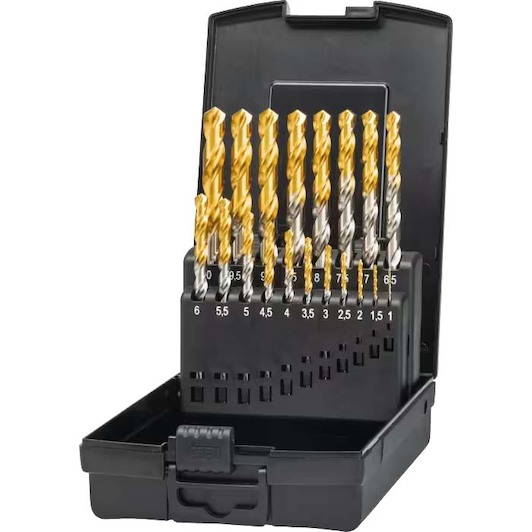

With the Phantom 11.461 hss twist drill bit set, you drill rapidly and accurately into metal and steel. This 19-piece set, featuring diameters from 1 to 10 mm in 0.5 mm steps, is specifically designed for handheld drilling with corded and cordless drills. The wear-resistant TiN-tip coating reduces friction and heat buildup, significantly extending cutting tool life. Thanks to the split point geometry and 118° point angle, each bit self-centers immediately without walking, eliminating the need for center punching or pilot drilling. It provides the control and durability you need to complete any installation or maintenance job efficiently.

Product information FAQ

€109.81

In stock - tax incl.

Key features according to our expert

Smallest diameter: 1 mm
Drill set type: Metal drilling set
Quantity per set: 19
Largest diameter: 10 mm

Product description:

Phantom HSS Set Spiral Drills DIN 338 TiN-tip (hand use)
DIN 338, short ground version, with cross grinding from 1.6 mm, in plastic case, filled with drills from article group 11.461

All Features

Smallest diameter: 1 mm
Drill set type: Metal drilling set
Quantity per set: 19
Largest diameter: 10 mm
Point type: Split point
Tool material: HSS
Contains diameters (ø mm): 1-10 mm x 0,5 mm
Coolant feed: No
Cutting direction: Right
Spiral type: Phantom
Tolerance d1 (tol. d1): h8
Model: 11.461
Surface: TiN
Shank type: Straight shank
Standard: DIN 338
Point angle: 118°

Brand PHANTOM
03051364
EAN 8716563733683
Supplier number PHANTOM 191471000

Frequently asked questions about this product

Answered by specialists

Which drill diameters are included in this Phantom drill set?: The set contains 19 drills ranging from 1 mm to 10 mm in 0.5 mm increments.
What is the benefit of the TiN-tip coating?: The titanium nitride tip coating reduces friction and cutting edge wear, resulting in a longer tool life.
Is center punching or pilot drilling required?: No, the split point grind (from 1.6 mm) and 118° point angle ensure precise self-centering without walking.
Are these drills suitable for cordless drills?: Yes, these DIN 338 twist drills are specifically optimized for manual drilling with cordless and corded machines.
Which materials can be machined with this metal drill set?: These HSS drills are engineered for drilling into structural steel, unalloyed steel, and various metals.
