Product Description:

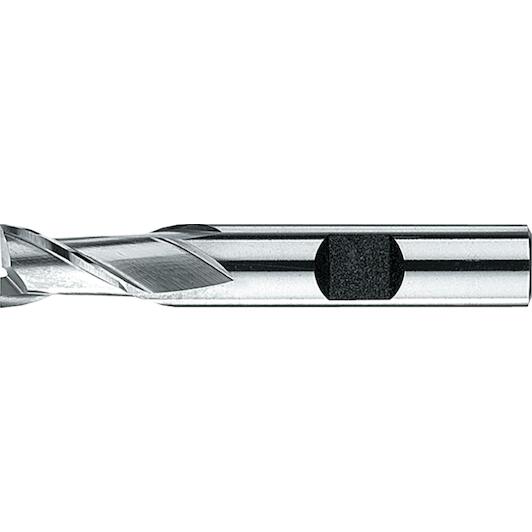

- Phantom HSS-E 2 Flute End Mill DIN 327 B
- DIN 327 B, Weldon shank (DIN 1835-B), in M42 steel
Supplier number:
PHANTOM 322200400
|
EAN
8716556321767
13.82
tax incl.
€11.42 excl. VAT (incl. all environmental contributions)
Clean slotting and keyway milling
Practical benefits- Enhanced durability with cobalt: The HSS-E CO8 alloy ensures you maintain sharp cutting edges even during high-temperature metal machining operations.
- Secure grip with Weldon: With the 6 mm Weldon shank to DIN 327-B, you achieve rigid clamping without tool slipping under load.
- Smooth chip removal geometry: The 2-flute design with a 30 ° helix angle lets you produce clean slots with efficient material clearance.
In a nutshell
The right choise forWith the Phantom 32.220 slot drill, you mill precise keyways and slots in metal with ease. Thanks to the center-cutting 2-flute geometry, you can plunge drill directly into solid material without pre-drilling. Made from hss-e CO8 cobalt steel with an 8% cobalt alloy, it retains sharp cutting edges and delivers exceptional heat and wear resistance during demanding machining operations. Featuring a 4 mm cutting diameter, a 7 mm cutting length, and a 30° helix angle built to din 327-B type N, it ensures smooth chip removal. The 6 mm Weldon shank guarantees rigid, slip-free clamping in your tool holder.
Product information
Key features according to our expert
- Diameter: 4 mm
- Material (milling cutter): HSS-E
- Cutting length: 7 mm
- Spiral angle: 30 °
- Number of cutting edges: 2
- Shank type (milling cutter): Weldon
- Shank size (milling cutter): 6 mm
- Milling type: Keyway cutter
All Features
- Diameter
- 4 mm
- Material (milling cutter)
- HSS-E
- Cutting length
- 7 mm
- Spiral angle
- 30 °
- Number of cutting edges
- 2
- Shank type (milling cutter)
- Weldon
- Shank size (milling cutter)
- 6 mm
- Milling type
- Keyway cutter
- Tolerance d1 (tol. d1)
- e8
- Tool material
- HSS-E
- Number of flutes (z)
- 2
- Diameter ø (d1)
- 4 mm
- Flute length (l2)
- 7 mm
- Tolerance d2 (tol. d2)
- h6
- Coolant feed
- No
- Shank ø (d2)
- 6 mm
- Surface
- Bright
- Shank type
- Weldon (DIN 1835-B)
- Standard
- DIN 327-B
- Total length (l1)
- 51 mm
- Brand PHANTOM
- EAN 8716556321767
- Supplier number PHANTOM 322200400
Frequently asked questions about this product
Answered by specialists
- What are the dimensions of this milling cutter?
- This cutter features a 4 mm cutting diameter, a 7 mm cutting length, and a 6 mm shank diameter.
- What shank type does this cutter have?
- It features a 6 mm cylindrical Weldon shank with a clamping flat (DIN 1835-B / DIN 327-B) for secure gripping.
- Can this cutter plunge directly into material?
- Yes, thanks to its 2-flute center-cutting geometry, you can plunge drill directly into the workpiece and mill slots.
- What material is this cutter made of?
- It is made of premium HSS-E (Co8) cobalt steel, offering high wear resistance and heat resistance during machining.
- What standard and helix angle apply to this cutter?
- The cutter is manufactured according to DIN 327-B Type N with a standard 30° helix angle.
