Product Description:

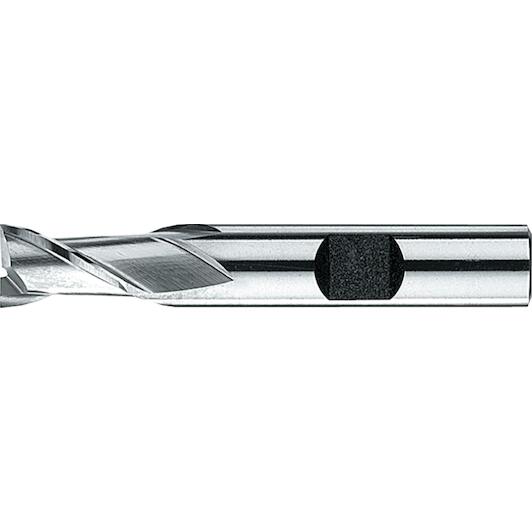

- Phantom HSS-E 2 Flute End Mill DIN 327 B
- DIN 327 B, Weldon shank (DIN 1835-B), in M42 steel
Supplier number:
PHANTOM 322200500
|
EAN
8716563217701
13.82
tax incl.
€11.42 excl. VAT (incl. all environmental contributions)
High precision milling for keyway slots
Practical benefits- Smooth plunging and slotting: The 2-flute center-cutting geometry allows you to plunge smoothly and mill accurate keyway slots into metal.
- Superior HSS-E heat resistance: Formulated with HSS-E CO8, it maintains cutting edge hardness under high temperatures to extend overall tool life.
- Secure Weldon shank clamping: The 6 mm Weldon flat prevents tool slippage inside the chuck for dependable and accurate milling passes.
In a nutshell
The right choise forWith the Phantom hss-e CO8 slot drill end mill, you can machine accurate keyways and slots in metal with ease. The 2-flute centre-cutting geometry according to din 327-B allows you to plunge directly into solid material without pre-drilling, while the 30° helix angle ensures smooth chip evacuation. Formulated with 8% cobalt alloyed steel (HSS-E CO8), it delivers high heat resistance and extended tool life when cutting tough steels. Featuring a 5 mm cutting diameter, an 8 mm cutting length, and a 6 mm Weldon shank, this cutter prevents slipping in the holder for precise, vibration-free milling.
Product information
Key features according to our expert
- Diameter: 5 mm
- Material (milling cutter): HSS-E
- Cutting length: 8 mm
- Spiral angle: 30 °
- Number of cutting edges: 2
- Shank type (milling cutter): Weldon
- Shank size (milling cutter): 6 mm
- Milling type: Keyway cutter
All Features
- Diameter
- 5 mm
- Material (milling cutter)
- HSS-E
- Cutting length
- 8 mm
- Spiral angle
- 30 °
- Number of cutting edges
- 2
- Shank type (milling cutter)
- Weldon
- Shank size (milling cutter)
- 6 mm
- Milling type
- Keyway cutter
- Tolerance d1 (tol. d1)
- e8
- Tool material
- HSS-E
- Number of flutes (z)
- 2
- Diameter ø (d1)
- 5 mm
- Flute length (l2)
- 8 mm
- Tolerance d2 (tol. d2)
- h6
- Coolant feed
- No
- Shank ø (d2)
- 6 mm
- Surface
- Bright
- Shank type
- Weldon (DIN 1835-B)
- Norm
- DIN 327-B
- Total length (l1)
- 52 mm
- Brand PHANTOM
- EAN 8716563217701
- Supplier number PHANTOM 322200500
Frequently asked questions about this product
Answered by specialists
- What is this slot drill end mill used for?
- It is designed for precisely milling keyways and slots in metal in accordance with DIN 327-B.
- What are the dimensions of this end mill?
- The tool features a 5 mm cutting diameter, an 8 mm cutting length, and a 6 mm Weldon shank.
- What material is this end mill made of?
- It is made of HSS-E (Co8), providing high heat resistance and excellent tool life during demanding machining tasks.
- What type of shank does this cutter have?
- It features a 6 mm Weldon shank with a clamping flat to prevent slipping in standard Weldon tool holders.
- How many flutes does this cutter have?
- This model has 2 flutes with a 30° helix angle, ensuring efficient chip evacuation during slotting operations.
