PHANTOM

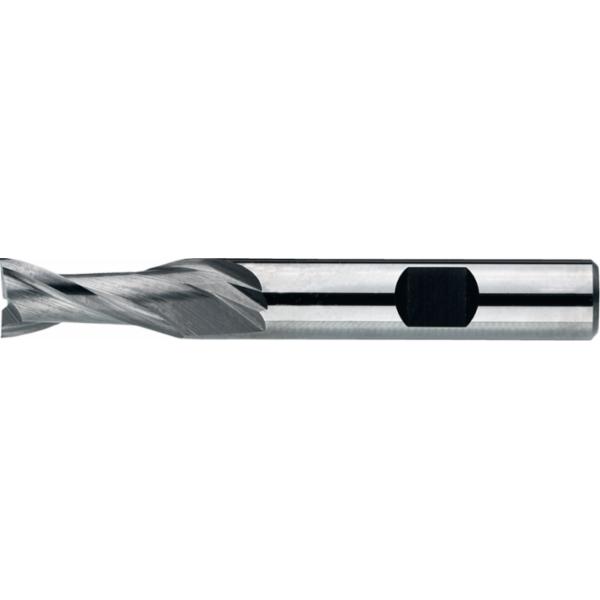

PHANTOM 322500600 VHM shank cutter 2-cutter DIN 6527-B long 6x10mm

This article is not available

Successor to this product

phantom-32-250-322500600
PHANTOM 322540600 UNI VHM shank cutter 2-cutter DIN 6527-B...
View product

Product Description:

  • Phantom SC 2 Flute End Mill DIN 6527 B DIN 6527 long
  • DIN 6527 B, Weldon shank (DIN 6535-HB)
Key features according to our expert
  • Diameter: 6 mm
  • Milling type: Keyway cutter
  • Shank size (milling cutter): 6 mm
  • Cutting length: 10 mm
Specifications / All features
  • Brand: PHANTOM
  • EAN: 8716563218401
  • Supplier number: PHANTOM 322500600
Diameter
6 mm
Milling type
Keyway cutter
Shank size (milling cutter)
6 mm
Cutting length
10 mm
Spiral angle
30°
Tool equipment
VHM
Number of cutting edges (z)
2

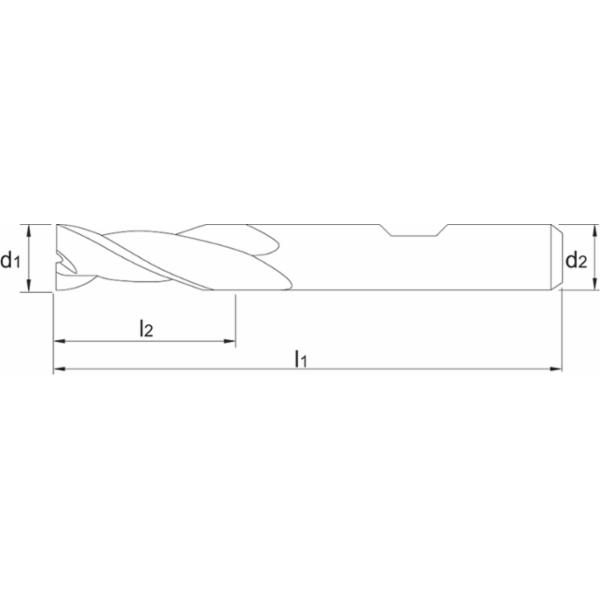

Diameter ø (d1)
6 mm
Spiral length (l2)
10 mm
Tolerance d2 (tol. d2)
h6
Cooling channel
No
Surface
Polished blank
Tolerance d1 (tol. d1)
h10
Shaft ø (d2)
6 mm
Shaft type
Weldon (DIN 6535-HB)
Standard
DIN 6527-B
Overall length (l1)
57 mm
