Product Description:

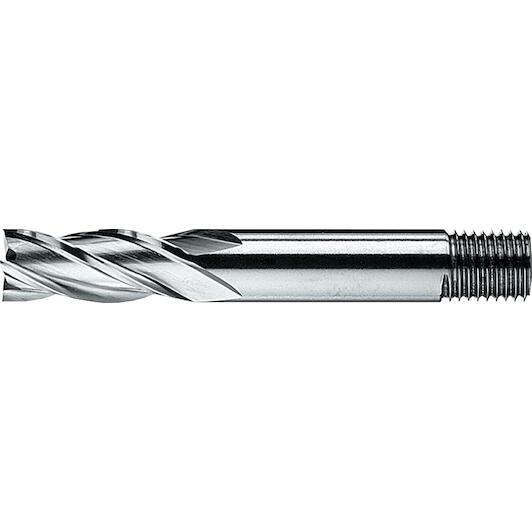

- Phantom HSS-E Multi Flute End Mill DIN 844 D
- DIN 844 D, centre cutting up to 25 mm, threaded shank, in M42 steel
Supplier number:
PHANTOM 342000800
|
EAN
8716563222354
26.02
tax incl.
€21.50 excl. VAT (incl. all environmental contributions)
Reliable milling in tough materials
Practical benefits- Superior heat resistance with cobalt: Thanks to the HSS-E CO8 composition, the tool retains hardness at elevated temperatures so you cut smoothly through tough metals.
- Fine surface finish with flutes: The 4 cutting flutes deliver stable operation and reduced vibration, leaving you with clean surfaces during side milling.
- Secure mounting via threaded shank: The M10 external thread locks firmly into the holder, giving you maximum rigidity and precision during heavy milling passes.
In a nutshell
The right choise forWith the Phantom hss-e CO8 end mill, you reliably machine tough materials and high-tensile steels. Thanks to the 8% cobalt alloy, the tool maintains exceptional heat and wear resistance during demanding cutting passes. Its four flutes and 30° helix angle provide smooth, low-vibration operation and a clean surface finish during contouring, slotting, and face milling. Featuring an 8 mm cutting diameter, a 19 mm cutting length, and a short overall design conforming to din 844-D, deflection is kept to a minimum. The M10 external thread ensures rigid, secure clamping in your tool holder, preventing pull-out even under heavy milling loads.
Product information
Key features according to our expert
- Diameter: 8 mm
- Material (milling cutter): HSS-E
- Cutting length: 19 mm
- Spiral angle: 30 °
- Number of cutting edges: 4
- Shank type (milling cutter): External thread
- Shank size (milling cutter): M10
- Milling type: Finger cutter
All Features
- Diameter
- 8 mm
- Material (milling cutter)
- HSS-E
- Cutting length
- 19 mm
- Spiral angle
- 30 °
- Number of cutting edges
- 4
- Shank type (milling cutter)
- External thread
- Shank size (milling cutter)
- M10
- Milling type
- Finger cutter
- Tolerance d1 (tol. d1)
- 0,00/-0,040
- Tool material
- HSS-E
- Number of flutes (z)
- 4
- Diameter ø (d1)
- 8 mm
- Flute length (l2)
- 19 mm
- Tolerance d2 (tol. d2)
- h8
- Coolant feed
- No
- Shank ø (d2)
- 10 mm
- Surface
- Bright
- Shank type
- Threaded shank (DIN 1835-D)
- Standard
- DIN 844-D
- Total length (l1)
- 69 mm
- Brand PHANTOM
- EAN 8716563222354
- Supplier number PHANTOM 342000800
Frequently asked questions about this product
Answered by specialists
- What are the dimensions of this end mill?
- The mill has a diameter of 8 mm, a cutting length of 19 mm, and an M10 shank thread.
- What shank type does this tool have?
- This milling cutter features a shank with an M10 external thread.
- What material is this cutter made of?
- It is manufactured from HSS-E Co8 high-speed steel with 8% cobalt.
- How many flutes does this end mill have?
- This is a 4-flute multi-tooth cutter with a 30° helix angle.
- Which standard does this end mill follow?
- This short end mill conforms to the DIN 844-D standard (type N).
