What are the dimensions of this end mill?

The cutter has a cutting diameter of 18 mm and a flute length of 32 mm.

What type of shank connection does this cutter have?

This end mill features an external male thread connection in size M16 according to DIN 844-D.

What material is this end mill made of?

It is made from HSS-E Co8 (high-speed steel with 8% cobalt) for high heat and wear resistance.

How many flutes does this model have?

This type N cutter features 4 flutes with a 30° helix angle.

What is a 4-flute end mill typically used for?

A 4-flute end mill is ideal for peripheral milling and finishing operations on steel and metals with a high-quality surface finish.

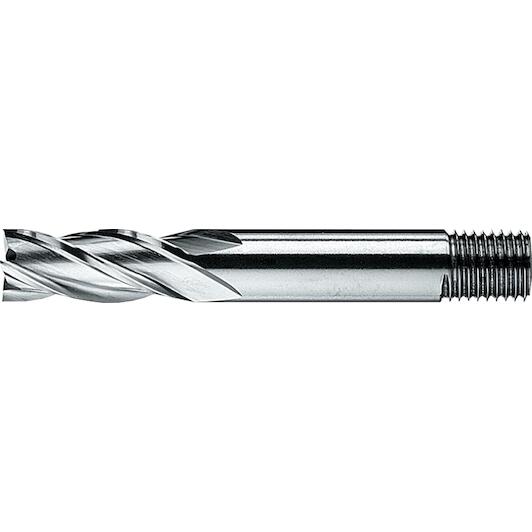

PHANTOM 342001800 HSS-E shank cutter multi-cutter DIN 844-D short' type N 18x32mm

Name: PHANTOM 342001800 HSS-E shank cutter multi-cutter DIN 844-D short' type N 18x32mm
Brand: PHANTOM
SKU: 51250827
Price: 54.7 EUR
Availability: InStock

Supplier number: PHANTOM 342001800 | EAN 8716563222491

54.70 tax incl.

€45.21 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered tomorrow 08/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Precise milling with Phantom

Practical benefits

Superior heat and wear resistance: Built with HSS-E CO8, this tool maintains sharp cutting edges even during demanding operations.
Smooth and stable cutting: Four flutes and a 30° helix angle ensure reduced vibration and a clean surface finish.
Secure threaded shank mounting: The M16 external thread delivers rigid tool clamping to prevent slipping under heavy loads.

In a nutshell

The right choise for

With the Phantom 34.200 end mill, you tackle demanding metalworking jobs in steel and cast iron with precision and control. Made from hss-e CO8 with 8% cobalt, it delivers outstanding heat and wear resistance to maintain sharp cutting edges during heavy milling. The 4-flute design with a 30° helix angle provides smooth, low-vibration operation and a clean surface finish during slotting, shoulder milling, and peripheral milling. Built to din 844-D standards with an M16 male threaded shank, this cutter mounts securely into compatible tool holders, preventing tool slippage and pull-out under heavy machining loads.

Product information FAQ

€54.70

In stock - tax incl.

Key features according to our expert

Diameter: 18 mm
Material (milling cutter): HSS-E
Cutting length: 32 mm
Spiral angle: 30 °
Number of cutting edges: 4
Shank type (milling cutter): External thread
Shank size (milling cutter): M16
Milling type: Finger cutter

Product Description:

Phantom HSS-E DIN 844 D
DIN 844 D, centre cutting up to 25 mm, threaded shank, in M42 steel

All Features

Diameter: 18 mm
Material (milling cutter): HSS-E
Cutting length: 32 mm
Spiral angle: 30 °
Number of cutting edges: 4
Shank type (milling cutter): External thread
Shank size (milling cutter): M16
Milling type: Finger cutter
Tolerance d1 (tol. d1): 0,00/-0,040
Tool material: HSS-E
Number of flutes (z): 4
Diameter ø (d1): 18 mm
Flute length (l2): 32 mm
Tolerance d2 (tol. d2): h8
Coolant feed: No
Shank ø (d2): 16 mm
Surface: Bright
Shank type: Threaded shank (DIN 1835-D)
Norm: DIN 844-D
Total length (l1): 92 mm

Brand PHANTOM
51250827
EAN 8716563222491
Supplier number PHANTOM 342001800

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this end mill?: The cutter has a cutting diameter of 18 mm and a flute length of 32 mm.
What type of shank connection does this cutter have?: This end mill features an external male thread connection in size M16 according to DIN 844-D.
What material is this end mill made of?: It is made from HSS-E Co8 (high-speed steel with 8% cobalt) for high heat and wear resistance.
How many flutes does this model have?: This type N cutter features 4 flutes with a 30° helix angle.
What is a 4-flute end mill typically used for?: A 4-flute end mill is ideal for peripheral milling and finishing operations on steel and metals with a high-quality surface finish.
