PHANTOM 342200600 HSS-E shank cutter multi-cutter DIN 844-B short' type N 6x13mm

Name: PHANTOM 342200600 HSS-E shank cutter multi-cutter DIN 844-B short' type N 6x13mm
Brand: PHANTOM
SKU: 51250877
Price: 17.4 EUR
Availability: InStock

Supplier number: PHANTOM 342200600 | EAN 8716563222996

17.40 tax incl.

€14.38 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Ordered before 20:00 - delivered as of 30/09/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Precise milling with high stability

Practical benefits

Superior heat resistance with cobalt: The HSS-E CO8 construction ensures you maintain exceptional hardness and wear resistance during demanding cuts.
Secure clamping without slip: The Weldon shank allows you to lock the end mill firmly in place, preventing unwanted movement.
Smooth and clean finish: Four cutting flutes provide stable chip evacuation to deliver a clean surface finish across various metals.

In a nutshell

The right choise for

With the Phantom 34.220 end mill, you achieve precise, stable milling across alloyed and unalloyed steel, cast iron, and aluminium. Built from durable hss-e CO8, this tool maintains high hardness and heat resistance during heavy-duty cutting operations. The short din 844-B design reduces deflection and vibration, while the four flutes and 30° helix angle deliver a smooth surface finish and dependable chip evacuation. Its 6 mm Weldon shank locks securely into your tool holder to eliminate slipping under load. Featuring a 6 mm cutting diameter, a 13 mm cutting length, and centre-cutting geometry, it allows you to plunge axially and mill contours with total control.

Product information FAQ

€17.40

In stock - tax incl.

Key features according to our expert

Diameter: 6 mm
Material (milling cutter): HSS-E
Cutting length: 13 mm
Spiral angle: 30 °
Number of cutting edges: 4
Shank type (milling cutter): Weldon
Shank size (milling cutter): 6 mm
Milling type: Finger cutter

Product Description:

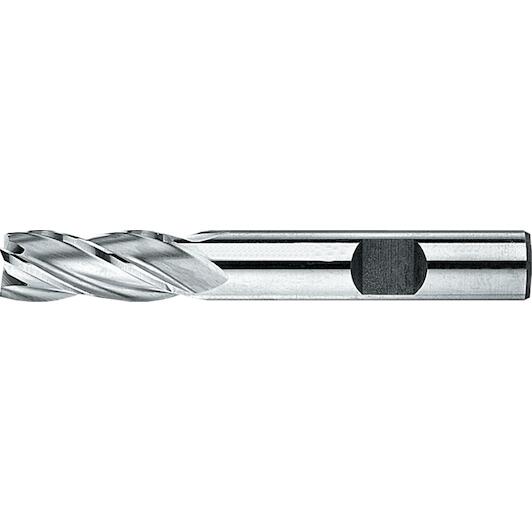

Phantom HSS-E Multi Flute End Mill DIN 844 B
DIN 844 B, centre cutting up to 25 mm, Weldon shank (DIN 1835-B), in M42 steel

All Features

Diameter: 6 mm
Material (milling cutter): HSS-E
Cutting length: 13 mm
Spiral angle: 30 °
Number of cutting edges: 4
Shank type (milling cutter): Weldon
Shank size (milling cutter): 6 mm
Milling type: Finger cutter
Tolerance d1 (tol. d1): 0,00/-0,040
Tool material: HSS-E
Number of flutes (z): 4
Diameter ø (d1): 6 mm
Flute length (l2): 13 mm
Tolerance d2 (tol. d2): h6
Coolant feed: No
Shank ø (d2): 6 mm
Surface: Bright
Shank type: Weldon (DIN 1835-B)
Standard: DIN 844-B
Total length (l1): 57 mm

Brand PHANTOM
51250877
EAN 8716563222996
Supplier number PHANTOM 342200600

Frequently asked questions about this product

Answered by specialists

Which materials can this end mill cut?: It is suitable for alloyed and unalloyed steel, cast iron, and aluminium thanks to its durable HSS-E Co8 build.
What type of shank does this cutter have?: It features a 6 mm Weldon shank designed for rigid, slip-resistant clamping in standard tool holders.
Can this end mill plunge directly into material?: Yes, its 4-flute centre-cutting geometry allows both axial plunging and lateral milling.
What are the cutting dimensions of this tool?: The cutting diameter is 6 mm with a flute length of 13 mm.
