Product Description:

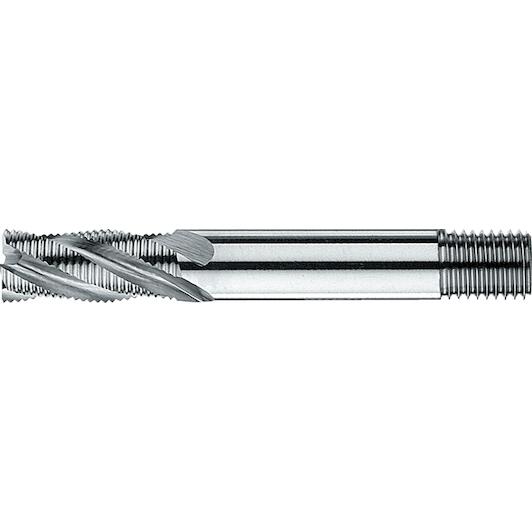

- Phantom HSS-E Roughing Cutter DIN 844 D fine pitch
- DIN 844 D, centre cutting up to 25 mm, threaded shank, round profile, in M42 steel
Key features according to our expert
-
Diameter: 20 mm
-
Material (milling cutter): HSS-E
-
Cutting length: 38 mm
-
Spiral angle: 30 °
-
Number of cutting edges: 3
-
Shank type (milling cutter): External thread
-
Shank size (milling cutter): M16
-
Milling type: Roughing cutter
Specifications / All features
-
Brand:
PHANTOM
-
51251475
-
EAN:
8716563226024
-
Supplier number:
PHANTOM 352002000
- Diameter
- 20 mm
- Material (milling cutter)
- HSS-E
- Cutting length
- 38 mm
- Spiral angle
- 30 °
- Number of cutting edges
- 3
- Shank type (milling cutter)
- External thread
- Shank size (milling cutter)
- M16
- Milling type
- Roughing cutter
- Total length (l1)
- 104 mm
- Tool material
- HSS-E
- Number of flutes (z)
- 4
- Diameter ø (d1)
- 20 mm
- Flute length (l2)
- 38 mm
- Tolerance d2 (tol. d2)
- h8
- Coolant feed
- No
- Tolerance d1 (tol. d1)
- js12
- Shank ø (d2)
- 20 mm
- Surface
- Bright
- Shank type
- Threaded shank (DIN 1835-D)
- Standard
- DIN 844-D
- Chamfer (c)
- 0,25
