PHANTOM

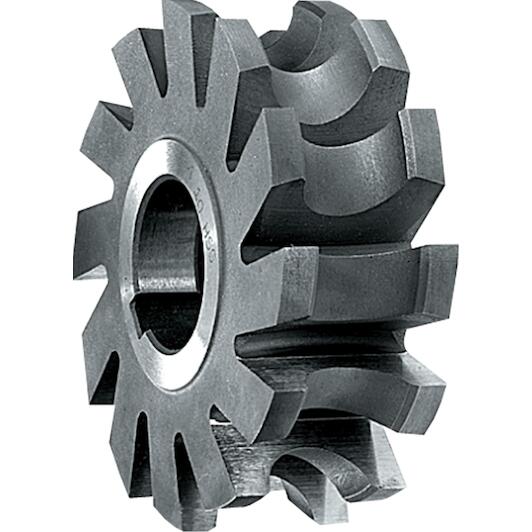

PHANTOM 383500125 HSS-E concave cutter DIN 855-A 50mm R1'25

160.92 tax incl.
€132.99 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product Description:

  • Phantom HSS-E DIN 855 A
  • DIN 855 A, for cutting convex grooves
Key features according to our expert
  • Diameter: 50 mm
  • Bore size: 16 mm
  • Shape (side and face cutter): Concave
  • Height: 8 mm

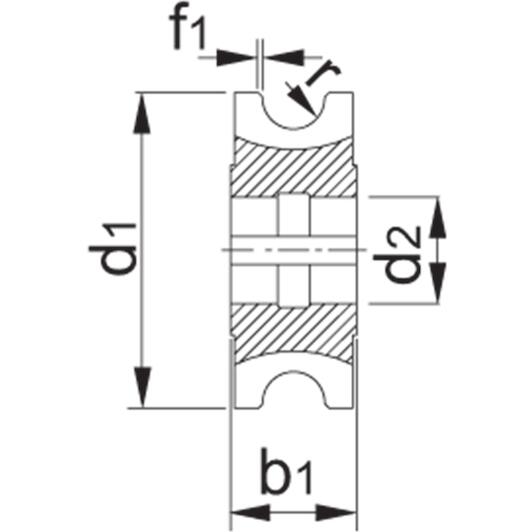

Specifications / All features
  • Brand: PHANTOM
  • EAN: 8716563380948
  • Supplier number: PHANTOM 383500125
Diameter
50 mm
Bore size
16 mm
Shape (side and face cutter)
Concave
Height
8 mm
Radius (r)
1,25 mm
Tool material
HSS-E
Number of flutes (z)
14
Diameter ø (d1)
50 mm
Tolerance d2 (tol. d2)
H7
Coolant feed
No
Tolerance b1 (tol. b1)
js16
Tolerance d1 (tol. d1)
js16
Surface
Bright
Bore ø (d2)
16 mm
Thickness (b1)
6 mm
Shank type
Bore
Norms
DIN 855-A
Corner chamfer (f1)
0,2 mm
