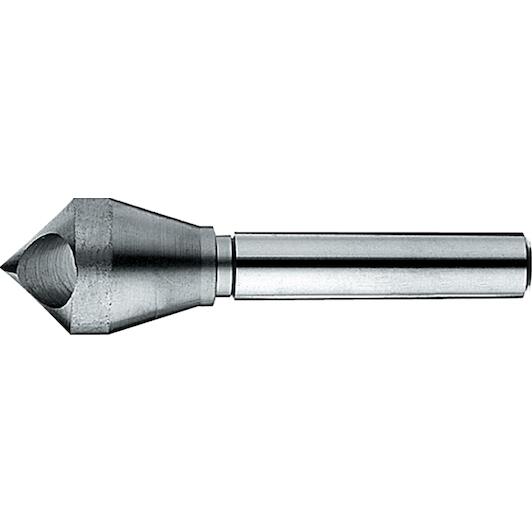

Product Description:
- Phantom HSS-E Countersink 90° through hole
- Straight shank
Supplier number:
PHANTOM 425001500
|
EAN
8716563360063
28.48
tax incl.
€23.54 excl. VAT (incl. all environmental contributions)
Chatter-free countersinking with Phantom
Practical benefits- Smooth chatter-free finish: The angled cross-hole design eliminates vibration and grabbing, providing you with ultra-smooth and clean deburred edges.
- Superior cobalt heat resistance: Made from durable HSS-E alloy, it maintains sharp cutting performance even under demanding metalworking conditions.
- Standard straight shank fit: The 8 mm cylindrical shank secures easily into standard chucks on drill presses and hand drills for dependable stability.
In a nutshell
The right choise forWith the Phantom 425001500 countersink bit, you achieve clean, smooth finishes in steel, stainless steel, non-ferrous metals, and plastics. The angled cross-hole design prevents grabbing and chatter vibrations, leaving a neat, burr-free edge every time. Its 90° point angle ensures countersunk screw heads sit flush with your workpiece. Featuring a maximum diameter of 15 mm, this tool is designed for deburring and countersinking holes ranging from 6 mm to 14 mm. The cobalt-alloyed hss-e construction delivers high heat resistance and extended tool life under demanding metalworking tasks, while the standard 8 mm straight shank mounts securely into standard drill chucks and collets.
Product information
Key features according to our expert
- Large diameter: 15 mm
- Shank size: 8 mm
All Features
- Large diameter
- 15 mm
- Shank size
- 8 mm
- Tool material
- HSS-E
- Diameter ø (d1)
- 15 mm
- Tolerance d2 (tol. d2)
- h9
- Coolant feed
- No
- Cutting direction
- Right
- Counterborereach (min-max ø)
- 6-14 mm
- Shank ø (d2)
- 8 mm
- Variant
- standard version
- Surface
- Bright
- Shank type
- Straight shank
- Total length (l1)
- 55 mm
- Brand PHANTOM
- EAN 8716563360063
- Supplier number PHANTOM 425001500
Frequently asked questions about this product
Answered by specialists
- What hole size range is this countersink suitable for?
- With a maximum diameter of 15 mm, it is designed for deburring and countersinking holes from 6 mm to 14 mm.
- What are the advantages of a cross-hole design?
- The through-hole allows smooth chip evacuation and prevents chatter marks, producing a clean and burr-free countersink.
- What is the shank size of this tool?
- It features an 8 mm straight cylindrical shank, compatible with standard drill chucks and collets.
- Which materials can be machined with HSS-E Co?
- The cobalt-alloyed HSS-E high-speed steel offers high heat and wear resistance, making it suitable for steel, stainless steel, non-ferrous metals, and plastics.
- What is the countersink angle?
- It has a 90° point angle, designed for flush seating of standard countersunk screws.
