Product Description:

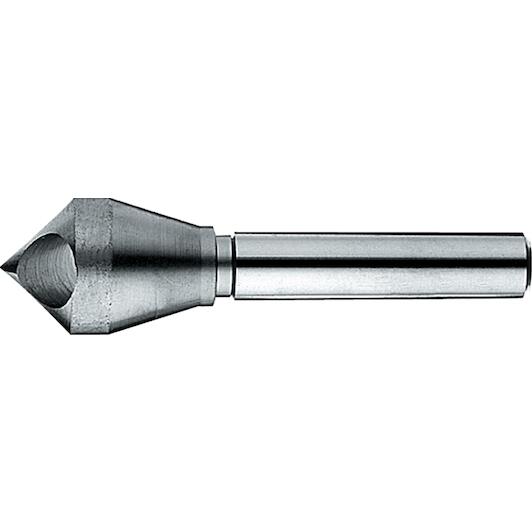

- Phantom HSS-E Countersink 90° through hole
- Straight shank
Supplier number:
PHANTOM 425002000
|
EAN
8716563360070
43.32
tax incl.
€35.80 excl. VAT (incl. all environmental contributions)
Clean and chatter-free countersinking
Practical benefits- Durable HSS-E cobalt performance: The premium cobalt alloy withstands high friction heat, ensuring long tool life across tough metal applications.
- Smooth and burr-free finish: The cross-hole design enables optimal chip clearance to produce clean 90° chamfers without surface chatter.
- Secure standard chuck fit: A 10 mm cylindrical shank ensures rigid, vibration-free clamping in conventional drill chucks and tool holders.
In a nutshell
The right choise forWith the Phantom 425002000 hss-e countersink bit, you achieve smooth, burr-free deburring and chamfering on holes from 8 to 18 mm. The angled cross-hole design eliminates chatter and vibration while clearing chips effortlessly, producing a clean 90° seat so screw heads sit flush every time. Crafted from high-grade hss-e cobalt steel, it maintains its cutting edge and high heat resistance when working with tough metals, steel, and stainless steel. The 10 mm cylindrical shank ensures a secure, vibration-free hold in conventional chucks across drill presses, milling machines, and handheld drills.
Product information
Key features according to our expert
- Large diameter: 20 mm
- Shank size: 10 mm
All Features
- Large diameter
- 20 mm
- Shank size
- 10 mm
- Tool material
- HSS-E
- Diameter ø (d1)
- 20 mm
- Tolerance d2 (tol. d2)
- h9
- Coolant feed
- No
- Cutting direction
- Right
- Counterborereach (min-max ø)
- 8-18 mm
- Shank ø (d2)
- 10 mm
- Variant
- standard version
- Surface
- Bright
- Shank type
- Straight shank
- Total length (l1)
- 65 mm
- Brand PHANTOM
- EAN 8716563360070
- Supplier number PHANTOM 425002000
Frequently asked questions about this product
Answered by specialists
- What countersinking range is this tool suitable for?
- With a head diameter of 20 mm, it is designed for deburring and countersinking holes from 8 to 18 mm.
- What is the advantage of the cross-hole design?
- The angled cross hole ensures chatter-free operation, smooth chip removal, and a clean, burr-free finish.
- What shank size does this countersink have?
- It features a straight cylindrical shank with a diameter of 10 mm.
- What material is the cutting tool made of?
- It is made of cobalt-alloyed HSS-E high-speed steel for high heat resistance and long service life.
- What is the countersink angle?
- The point angle is 90°, standard for countersunk screw heads.
