PHANTOM

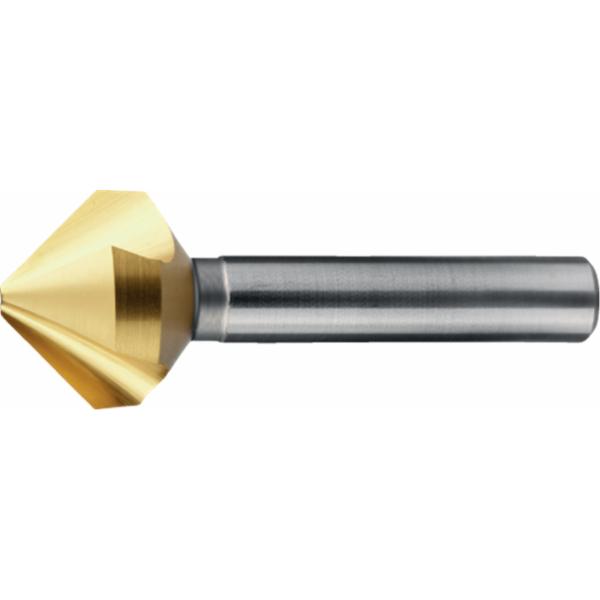

PHANTOM 425411040 HSS-E countersink bit DIN 335-C 90°' TiN' 3 cutting edges 10'4mm

This article is not available

Successor to this product

phantom-42-541-425411040
PHANTOM 425481040 HP2 UNI HSS-E Vari countersink bit DIN 335-C...
View product

Product Description:

  • Phantom HSS-E Countersink DIN 335 C 90° TiN 3 flute
  • DIN 335 C, straight shank
Key features according to our expert
  • Large diameter: 10,4 mm
  • Shank size: 6 mm
Specifications / All features
  • Brand: PHANTOM
  • EAN: 8716563360698
  • Supplier number: PHANTOM 425411040
Large diameter
10,4 mm
Shank size
6 mm
Tool material
HSS-E

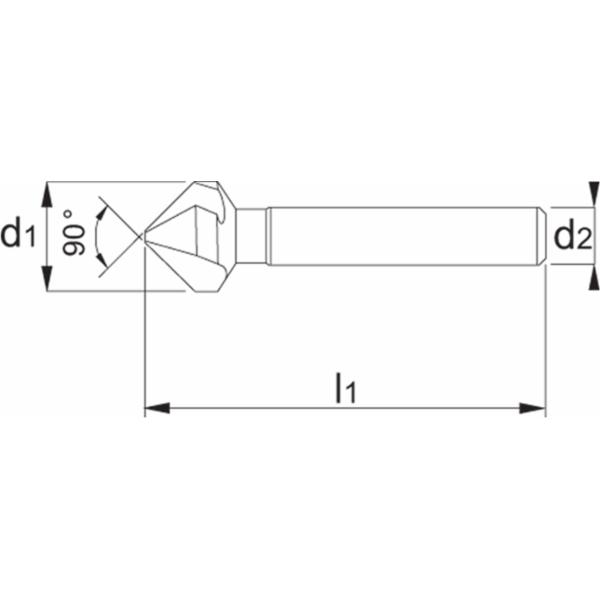

Diameter ø (d1)
10,4 mm
Tolerance d2 (tol. d2)
h9
Coolant feed
No
Cutting direction
Right
Counterborereach (min-max ø)
2,5-10,4 mm
Shank ø (d2)
6 mm
Variant
standard version
Surface
TiN
Shank type
Straight shank
Standard
DIN 335-C
Total length (l1)
50 mm
