Product Description:

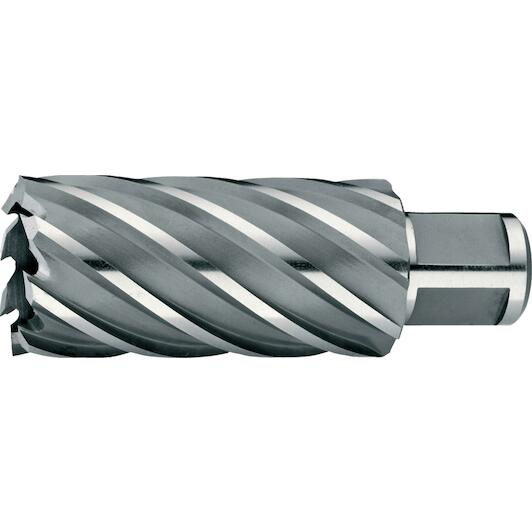

- Phantom HSS Annular Cutter cutting depth 55 mm
- Long series, Weldon type diam. 19 mm and quick change shank
Supplier number:
PHANTOM 621501200
|
EAN
8716563306108
35.54
tax incl.
€29.37 excl. VAT (incl. all environmental contributions)
Accurate and deep metal drilling

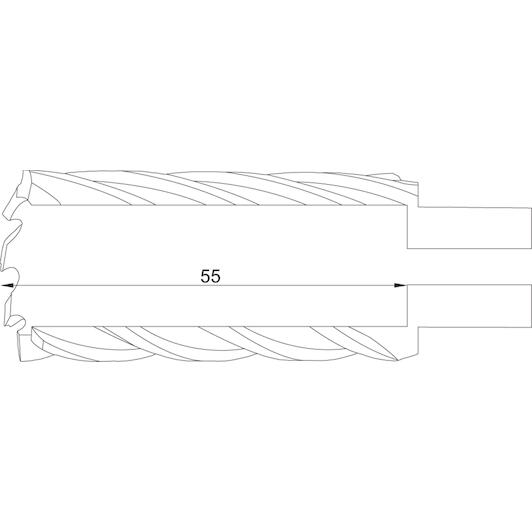

Practical benefits- Deep metal core drilling: With a 55 mm cutting depth, you easily drill through thick metal structural components.
- Resilient HSS-EX construction: The tough HSS-EX steel offers superior heat hardness and wear resistance for extended tool life.
- Stable Weldon 19 shank: The Weldon 19 connection ensures reliable torque transfer without slipping in your magnetic drill.
In a nutshell
The right choise forWith the Phantom 62150 hss-ex annular cutter, you quickly drill accurate 12 mm holes in metal and structural steel. Featuring a 55 mm cutting depth, it powers through thick steel beams and solid metal plates without any need for pre-drilling or pilot holes. By cutting only the outer edge of the hole, it significantly reduces drilling time and motor strain compared to solid drills. The high-performance hss-ex tool steel provides superior heat hardness and wear resistance for an extended tool life. Fitted with a standard Weldon 19 mm shank, it ensures a secure, slip-free grip and reliable torque transfer in your magnetic drill.
Product information
Key features according to our expert
- Diameter: 12 mm
- Connection profile: Weldon
- For material: Metal
- Cutting length: 55 mm
All Features
- Diameter
- 12 mm
- Connection profile
- Weldon
- For material
- Metal
- Cutting length
- 55 mm
- Surface
- Bright
- Drill diameter (d1)
- 12 mm
- Shank (d2)
- 19 mm
- Tolerance d1 (tol. d1)
- h11
- Cutting depth (ap)
- 55 mm
- Shank type
- Weldon
- Tool material
- HSS-EX
- Brand PHANTOM
- EAN 8716563306108
- Supplier number PHANTOM 621501200
Frequently asked questions about this product
Answered by specialists
- Which shank connection does this Phantom annular cutter feature?
- This core drill features a standard 19 mm (3/4 inch) Weldon shank, compatible with magnetic drill machines.
- What is the maximum cutting depth of this cutter?
- The maximum usable cutting depth of this annular cutter is 55 mm.
- Which materials are suitable for this HSS-EX annular cutter?
- This annular cutter is designed for drilling into metal and structural steel.
- What hole diameter does this model produce?
- This specific model produces holes with a diameter of 12 mm.
- What is the benefit of HSS-EX tool steel?
- HSS-EX provides increased red hardness and wear resistance, resulting in a longer tool life during heavy-duty cutting.
