Product Description:

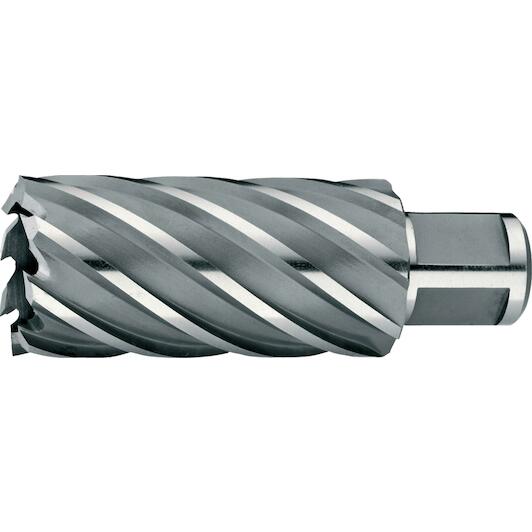

- Phantom HSS Annular Cutter cutting depth 55 mm
- Long series, Weldon type diam. 19 mm and quick change shank
Supplier number:
PHANTOM 621502600
|
EAN
8716563238157
60.48
tax incl.
€49.98 excl. VAT (incl. all environmental contributions)
Accurate drilling in metal
Practical benefits- Deep and clean cutting: With a 55 mm cutting depth, you effortlessly drill through thick construction steel components.
- Wear-resistant HSS-EX steel: The specialized steel ensures you maintain high heat resistance and edge retention during heavy operations.
- Secure Weldon shank Phantom: Thanks to the universal Weldon mounting, you achieve stable and vibration-free clamping in magnetic drills.
In a nutshell
The right choise forWith the Phantom 62150 hss-ex core drill bit, you drill clean and accurate holes through heavy metal components. Thanks to the 55 mm cutting depth and 26 mm diameter, you easily tackle thick steel plates and structural profiles without the need for pre-drilling. The wear-resistant hss-ex steel provides high heat resistance and extended tool life during demanding cutting operations. Featuring a standard WELDON-19 shank, it mounts securely and vibration-free into your magnetic drill press or pillar drill, giving you full control and neat, low-burr results every time.
Product information
Key features according to our expert
- Diameter: 26 mm
- Connection profile: Weldon
- For material: Metal

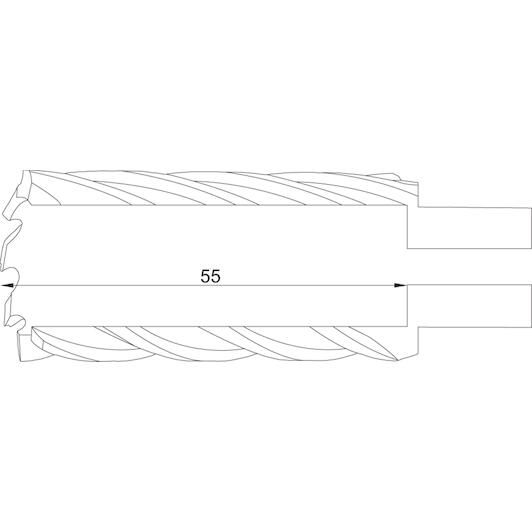

- Cutting length: 55 mm
All Features
- Diameter
- 26 mm
- Connection profile
- Weldon
- For material
- Metal
- Cutting length
- 55 mm
- Surface
- Bright
- Drill diameter (d1)
- 26 mm
- Shank (d2)
- 19 mm
- Tolerance d1 (tol. d1)
- h11
- Cutting depth (ap)
- 55 mm
- Shank type
- Weldon
- Tool material
- HSS-EX
- Brand PHANTOM
- EAN 8716563238157
- Supplier number PHANTOM 621502600
Frequently asked questions about this product
Answered by specialists
- What shank fitting does this core drill bit have?
- This annular cutter features a standard 19 mm Weldon shank.
- What is the maximum cutting depth of this bit?
- The maximum cutting depth of this core drill bit is 55 mm.
- What hole diameter does this Phantom core drill produce?
- This cutter creates holes with a precise diameter of 26 mm.
- Which materials can this annular cutter drill?
- This HSS-EX core drill bit is engineered for drilling into metal.
- Which machines are compatible with this core drill bit?
- It is suitable for magnetic drilling machines and pillar drills with a 19 mm Weldon holder.
